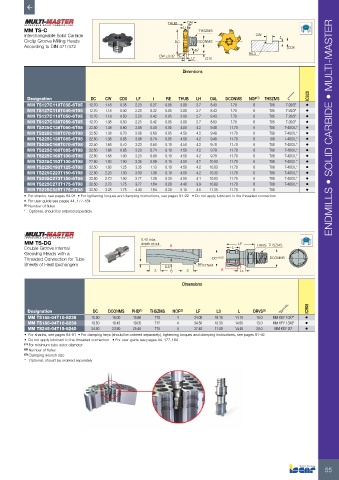

Page 57 - ISCAR(MILLINGCATALOG 38_2021)

THUB OAL
MM TS-C LH THSZMS
Interchangeable Solid Carbide CW t
Circlip Groove Milling Heads DC DCONMS
According to DIN 471/472 CDX
45˚
CW ±0.02 RE R0.3
LF CDX
Dimensions

IC928
Designation DC CW CDX LF t RE THUB LH OAL DCONMS NOF (1) THSZMS
MM TS127C118T035-6T05 12.70 1.18 0.35 2.23 0.27 0.05 3.00 2.7 8.43 7.70 6 T05 T-20/3* •
MM TS127C118T040-6T05 12.70 1.18 0.40 2.23 0.32 0.05 3.00 2.7 8.43 7.70 6 T05 T-20/3* •
MM TS127C118T050-6T05 12.70 1.18 0.50 2.23 0.42 0.05 3.00 2.7 8.43 7.70 6 T05 T-20/3* •
MM TS127C138T050-6T05 12.70 1.38 0.50 2.23 0.42 0.05 3.00 2.7 8.63 7.70 6 T05 T-20/3* •
MM TS225C138T060-6T08 22.50 1.38 0.60 3.08 0.50 0.05 4.50 4.2 9.48 11.70 6 T08 T-40/3 L* • ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM TS225C138T070-6T08 22.50 1.38 0.70 3.08 0.60 0.05 4.50 4.2 9.48 11.70 6 T08 T-40/3 L* •
MM TS225C138T085-6T08 22.50 1.38 0.85 3.08 0.74 0.05 4.50 4.2 9.48 11.70 6 T08 T-40/3 L* •
MM TS225C168T070-6T08 22.50 1.68 0.70 3.23 0.60 0.10 4.50 4.2 9.78 11.70 6 T08 T-40/3 L* •
MM TS225C168T085-6T08 22.50 1.68 0.85 3.23 0.74 0.10 4.50 4.2 9.78 11.70 6 T08 T-40/3 L* •
MM TS225C168T100-6T08 22.50 1.68 1.00 3.23 0.89 0.10 4.50 4.2 9.78 11.70 6 T08 T-40/3 L* •
MM TS225C193T100-6T08 22.50 1.93 1.00 3.35 0.89 0.10 4.50 4.2 10.03 11.70 6 T08 T-40/3 L* •
MM TS225C193T125-6T08 22.50 1.93 1.25 3.35 1.13 0.10 4.50 4.2 10.03 11.70 6 T08 T-40/3 L* •
MM TS225C223T150-6T08 22.50 2.23 1.50 3.50 1.38 0.10 4.50 4.2 10.33 11.70 6 T08 T-40/3 L* •
MM TS225C273T150-6T08 22.50 2.73 1.50 3.77 1.39 0.20 4.50 4.1 10.83 11.70 6 T08 T-40/3 L* •
MM TS225C273T175-6T08 22.50 2.73 1.75 3.77 1.64 0.20 4.40 3.9 10.83 11.70 6 T08 T-40/3 L* •
MM TS225C325T175-6T08 22.50 3.25 1.75 4.40 1.64 0.20 5.10 4.6 11.35 11.70 6 T08 •
• For shanks, see pages 84-91 • For tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection
• For user guide see pages 44, 177-184
(1) Number of flutes
* Optional, should be ordered separately

MM TS-DG 0.45 max. LF DRVS THSZMS
depth of cut
Double Groove Internal A L
Grooving Heads with a
Threaded Connection for Tube DC ±0.05 DCONMS
Sheets of Heat Exchangers 0.6 RE0.3 Typx4
3 6 3 A L3

Dimensions

Designation DC DCONMS PHD (1) THSZMS NOF (2) LF L3 L DRVS (3) IC908
MM TS155-04T10-8238 15.50 16.00 15.88 T10 4 34.00 18.10 14.10 10.0 MM KEY 10X7* •
MM TS185-04T12-8239 18.50 18.45 19.05 T12 4 34.50 18.30 14.50 13.0 MM KEY 13X8* •
MM TS245-04T15-8240 24.50 23.90 25.40 T15 4 37.40 11.00 14.40 20.0 MM KEY 20* •
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection • For user guide see pages 44, 177-184
(1) For minimum tube outer diameter
(2) Number of flutes
(3) Clamping wrench size
* Optional, should be ordered separately
