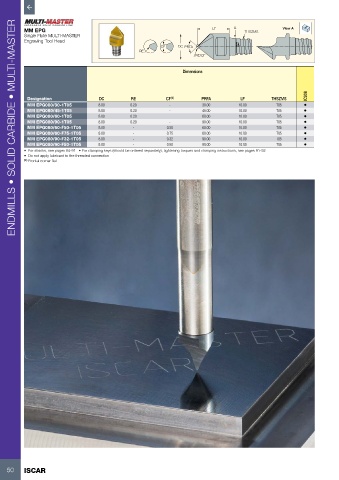

Page 52 - ISCAR(MILLINGCATALOG 38_2021)
P. 52
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM EPG LF A THSZMS View A
Single Flute MULTI-MASTER
Engraving Tool Head
CF DC PRFA
RE
RE/CF
Dimensions
IC908
Designation DC RE CF (1) PRFA LF THSZMS
MM EPG080/30-1T05 8.00 0.20 - 30.00 10.00 T05 •
MM EPG080/45-1T05 8.00 0.20 - 45.00 10.00 T05 •
MM EPG080/60-1T05 8.00 0.20 - 60.00 10.00 T05 •
MM EPG080/90-1T05 8.00 0.20 - 90.00 10.00 T05 •
MM EPG080/60-F50-1T05 8.00 - 0.50 60.00 10.00 T05 •
MM EPG080/60-F75-1T05 8.00 - 0.75 60.00 10.00 T05 •
MM EPG080/90-F32-1T05 8.00 - 0.32 90.00 10.00 T05 •
MM EPG080/90-F50-1T05 8.00 - 0.50 90.00 10.00 T05 •
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection
(1) Frontal corner flat
50 ISCAR
