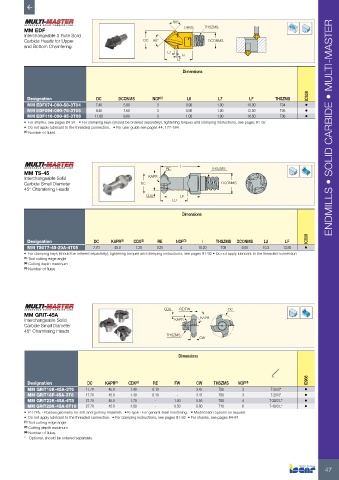

Page 49 - ISCAR(MILLINGCATALOG 38_2021)

90°
MM EDF DRVS THSZMS
Interchangeable 3 Flute Solid
Carbide Heads for Upper DC 90° DCONMS
and Bottom Chamfering
L7
L6
LF
Dimensions

IC908
Designation DC DCONMS NOF (1) L6 L7 LF THSZMS
MM EDF074-090-58-3T04 7.40 5.80 3 0.90 1.00 10.00 T04 •
MM EDF094-090-76-3T05 9.40 7.60 3 0.90 1.00 12.50 T05 •
MM EDF116-090-95-3T06 11.60 9.60 3 1.00 1.00 16.50 T06 •
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
(1) Number of flutes

l THSZMS
MM TS-45 RE
Interchangeable Solid KAPR
Carbide Small Diameter DC DCONMS
45° Chamfering Heads
CDX LF
LU

Dimensions

IC908
Designation DC KAPR (1) CDX (2) RE NOF (3) l THSZMS DCONMS LU LF
MM TS077-45-20A-4T05 7.70 45.0 1.20 0.20 4 15.20 T05 8.00 10.3 13.85 •
• For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection
(1) Tool cutting edge angle
(2) Cutting depth maximum
(3) Number of flutes

CDX RE/FW DC
MM GRIT-45A
Interchangeable Solid KAPR KAPR
Carbide Small Diameter
45° Chamfering Heads
THSZMS
CW

Dimensions

IC908
Designation DC KAPR (1) CDX (2) RE FW CW THSZMS NOF (3)
MM GRIT18K-45A-3T6 17.70 45.0 1.40 0.10 - 3.47 T06 3 T-25/3* •
MM GRIT18P-45A-3T6 17.70 45.0 1.40 0.10 - 3.47 T06 3 T-25/3* •
MM GRIT22K-45A-4T8 21.70 45.0 1.70 - 1.50 5.55 T08 4 T-30/3 L* •
MM GRIT28K-45A-6T10 27.70 45.0 4.00 - 0.50 9.80 T10 6 T-40/3 L* •
• P-TYPE - Positive geometry for soft and gummy materials. • K-Type - For general steel machining. • Modification options on request.
• Do not apply lubricant to the threaded connection. • For clamping instructions, see pages 91-92 • For shanks, see pages 84-91
(1) Tool cutting edge angle
(2) Cutting depth maximum
(3) Number of flutes
* Optional, should be ordered separately

47
