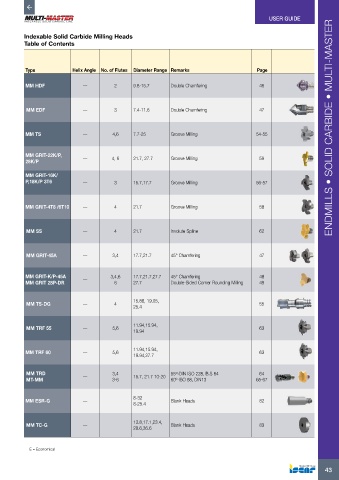

USER GUIDE
Indexable Solid Carbide Milling Heads
Table of Contents
Type Helix Angle No. of Flutes Diameter Range Remarks Page
MM HDF — 2 9.8-15.7 Double Chamfering 46
MM EDF — 3 7.4-11.6 Double Chamfering 47
MM TS — 4,6 7.7-25 Groove Milling 54-55 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM GRIT-22K/P, — 4, 6 21.7, 27.7 Groove Milling 59
28K/P
MM GRIT-16K/
P,18K/P 3T6 — 3 15.7,17.7 Groove Milling 56-57
MM GRIT-4T8 /6T10 — 4 21.7 Groove Milling 58
MM SS — 4 21.7 Involute Spline 62
MM GRIT-45A — 3,4 17.7,21.7 45° Chamfering 47
MM GRIT-K/P-45A — 3,4,6 17.7,21.7,27.7 45° Chamfering 48
MM GRIT 28P-DR 6 27.7 Double-Sided Corner Rounding Milling 49
15.88, 19.05,
MM TS-DG — 4 55
25.4
MM TRF 55 — 5,6 11.94,15.94, 63
19.94
11.94,15.94,
MM TRF 60 — 5,6 63
19.94,27.7
MM TRD — 3,4 55º-DIN ISO 228, B.S 84 64
MT-MM 3-6 15.7, 21.7 10-20 60º-ISO 68, DIN13 65-67
8-32
MM ESR-G — Blank Heads 82
8-25.4
13.8,17.1,23.4,
MM TC-G — Blank Heads 83
28.6,35.6
E = Economical
