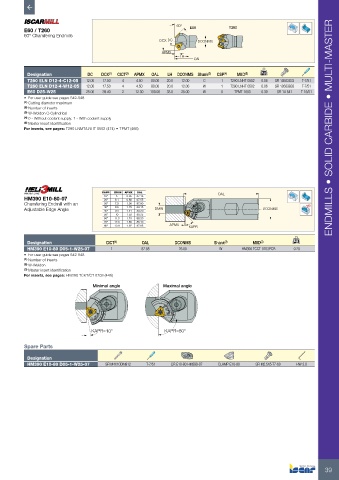

Page 41 - ISCAR(MILLINGCATALOG 38_2021)

60°
E60 / T260 E60 T260
60° Chamfering Endmills
DCX DC DCONMS

APMX
LH
OAL

Designation DC DCX (1) CICT (2) APMX OAL LH DCONMS Shank (3) CSP (4) MIID (5) kg
T260 ELN D12-4-C12-05 12.00 17.50 4 4.50 80.00 20.0 12.00 C 1 T290 LNHT 0502 0.06 SR 10503833 T-7/51
T260 ELN D12-4-W12-05 12.00 17.50 4 4.50 80.00 20.0 12.00 W 1 T290 LNHT 0502 0.06 SR 10503833 T-7/51
E60 D25-W25 25.00 39.40 2 12.30 100.00 33.0 25.00 W 0 TPMT 1603 0.39 SR 14-541 T-15/51
• For user guide see pages 542-548
(1) Cutting diameter maximum
(2) Number of inserts
(3) W-Weldon C-Cylindrical
(4) 0 - Without coolant supply, 1 - With coolant supply
(5) Master insert identification
For inserts, see pages: T290 LNMT/LNHT 0502 (474) • TPMT (468) ENDMILLS • SOLID CARBIDE • MULTI-MASTER

KAPR DMIN APMX OAL OAL

5
HM390 E10-80-07 10° 6.1 0.35 87.15
0.68
87.55
20°
Chamfering Endmill with an 30° 7.3 1.00 87.90
Adjustable Edge Angle 40° 8.6 1.29 88.15 DMIN DCONMS
45°
88.20
1.41
9.3
50° 10 1.53 88.25
60° 11.3 1.73 88.20
70° 12.6 1.88 88.10
80° 13.9 1.97 87.85 APMX KAPR
Designation CICT (1) OAL DCONMS Shank (2) MIID (3) kg
HM390 E10-80 D05-1-W25-07 1 87.85 25.00 W HM390 TCCT 0703PCR 0.28
• For user guide see pages 542-548
(1) Number of inserts
(2) W-Weldon
(3) Master insert identification
For inserts, see pages: HM390 TCKT/CT 0703 (446)
Minimal angle Maximal angle

KAPR=10° KAPR=80°

Spare Parts

Designation
HM390 E10-80 D05-1-W25-07 SR M4X10DIN912 T-7/51 CR E10-80 HM390-07 CLAMP E10-80 SR M2.5X5-T7-60 HW 3.0
