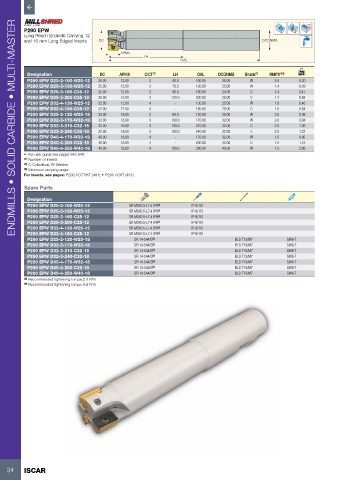

P. 36
Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
P290 EPW
Long Reach Endmills Carrying 12
and 18 mm Long Edged Inserts DC DCONMS
APMX
LH
OAL
Designation DC APMX CICT (1) LH OAL DCONMS Shank (2) RMPX° (3) kg
P290 EPW D20-2-100-W20-12 20.00 12.00 2 40.0 100.00 20.00 W 2.0 0.20
P290 EPW D25-3-130-W25-12 25.00 12.00 3 70.0 130.00 25.00 W 1.4 0.39
P290 EPW D25-3-160-C25-12 25.00 12.00 3 90.0 160.00 25.00 C 1.4 0.47
P290 EPW D25-3-200-C25-12 25.00 12.00 3 120.0 200.00 25.00 C 1.4 0.62
P290 EPW D32-4-130-W25-12 32.00 12.00 4 - 130.00 25.00 W 1.0 0.46
P290 EPW D32-4-150-C25-12 32.00 12.00 4 - 150.00 25.00 C 1.0 0.54
P290 EPW D25-2-120-W25-18 25.00 18.00 2 60.0 120.00 25.00 W 2.5 0.36
P290 EPW D32-3-170-W32-18 32.00 18.00 3 100.0 170.00 32.00 W 2.0 0.84
P290 EPW D32-3-210-C32-18 32.00 18.00 3 130.0 210.00 32.00 C 2.0 1.06
P290 EPW D32-3-240-C32-18 32.00 18.00 3 160.0 240.00 32.00 C 2.0 1.22
P290 EPW D40-4-170-W32-18 40.00 18.00 4 - 170.00 32.00 W 1.5 0.95
P290 EPW D40-4-200-C32-18 40.00 18.00 4 - 200.00 32.00 C 1.5 1.13
P290 EPW D40-4-250-W40-18 40.00 18.00 4 150.0 250.00 40.00 W 1.5 2.08
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
(3) Maximum ramping angle
For inserts, see pages: P290 ACCT/KT (461) • P290 ACKT (461)
Spare Parts
Designation
P290 EPW D20-2-100-W20-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151
P290 EPW D25-3-130-W25-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151
P290 EPW D25-3-160-C25-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151
P290 EPW D25-3-200-C25-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151
P290 EPW D32-4-130-W25-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151
P290 EPW D32-4-150-C25-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151
P290 EPW D25-2-120-W25-18 SR 14-544/S (b) BLD T15/M7 SW6-T
P290 EPW D32-3-170-W32-18 SR 14-544/S (b) BLD T15/M7 SW6-T
P290 EPW D32-3-210-C32-18 SR 14-544/S (b) BLD T15/M7 SW6-T
P290 EPW D32-3-240-C32-18 SR 14-544/S (b) BLD T15/M7 SW6-T
P290 EPW D40-4-170-W32-18 SR 14-544/S (b) BLD T15/M7 SW6-T
P290 EPW D40-4-200-C32-18 SR 14-544/S (b) BLD T15/M7 SW6-T
P290 EPW D40-4-250-W40-18 SR 14-544/S (b) BLD T15/M7 SW6-T
(a) Recommended tightening torque:2.0 N*m
(b) Recommended tightening torque:4.8 N*m
