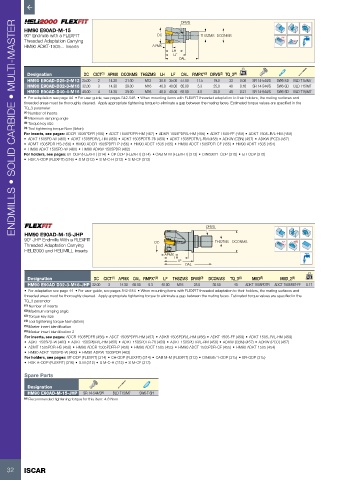

P. 34
DRVS
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
HM90 E90AD-M-15
90° Endmills with a FLEXFIT DC THSZMS DCONMS Rd°
Threaded Adaptation Carrying
HM90 ADKT-1505... Inserts APMX
LH
LF
OAL
Designation DC CICT (1) APMX DCONMS THSZMS LH LF OAL RMPX° (2) DRVS (3) TQ_3 (4) kg
HM90 E90AD-D25-2-M12 25.00 2 14.30 21.00 M12 30.8 35.00 57.00 11.5 19.0 33 0.08 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-3-M16 32.00 3 14.30 29.00 M16 40.0 40.00 65.00 5.3 25.0 40 0.16 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D40-4-M16 40.00 4 14.30 29.00 M16 40.0 40.00 65.00 4.0 25.0 40 0.21 SR 14-544/S SW6-SD BLD T15/M7
• For adaptation see page 44 • For user guide, see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
(1) Number of inserts
(2) Maximum ramping angle
(3) Torque key size
(4) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: ADCR 1505PDFR (456) • ADCT 1505PDFR-HM (457) • ADKR 1505PDR/L-HM (456) • ADKT 1505-FF (459) • ADKT 1505..R/L-HM (459)
• ADKT 1505PD-W (460) • ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR-76 (459) • ADKT 1505PDTR/L-RM (458) • ADKW (CBN) (457) • ADKW (PCD) (457)
• ADMT 1505PDR-HS (458) • HM90 ADCR 1505PDFR-P (456) • HM90 ADCT 1505 (455) • HM90 ADCT 1505PDR-CF (455) • HM90 ADKT 1505 (454)
• HM90 ADKT 1505PD-W (460) • HM90 ADKW 1505PDR (462)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
DRVS
HM90 E90AD-M-15-JHP
90° JHP Endmills With a FLEXFIT DC THSZMS DCONMS Rd°
Threaded Adaptation Carrying
HELI2000 and HELIMILL Inserts
APMX
LH
LF
OAL
Designation DC CICT (1) APMX OAL RMPX° (2) LF THSZMS DRVS (3) DCONMS TQ_3 (4) MIID (5) MIID_2 (6) kg
HM90 E90AD D32-3-M16-JHP 32.00 3 14.30 65.00 5.3 40.00 M16 25.0 30.50 40 ADKT 1505PDTR ADCT 1505R8T-FF 0.17
• For adaptation see page 44 • For user guide, see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
(1) Number of inserts
(2) Maximum ramping angle
(3) Torque key size
(4) Tool tightening torque Nxm (lbfxin)
(5) Master insert identification
(6) Master insert identification 2
For inserts, see pages: ADCR 1505PDFR (456) • ADCT 1505PDFR-HM (457) • ADKR 1505PDR/L-HM (456) • ADKT 1505-FF (459) • ADKT 1505..R/L-HM (459)
• ADKT 1505PD-W (460) • ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR-76 (459) • ADKT 1505PDTR/L-RM (458) • ADKW (CBN) (457) • ADKW (PCD) (457)
• ADMT 1505PDR-HS (458) • HM90 ADCR 1505PDFR-P (456) • HM90 ADCT 1505 (455) • HM90 ADCT 1505PDR-CF (455) • HM90 ADKT 1505 (454)
• HM90 ADKT 1505PD-W (460) • HM90 ADKW 1505PDR (462)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
Spare Parts
Designation
HM90 E90AD-M-15-JHP SR 14-544/S (a) BLD T15/M7 SW6-T-SH
(a) Recommended tightening torque for this item: 4.8 Nxm
