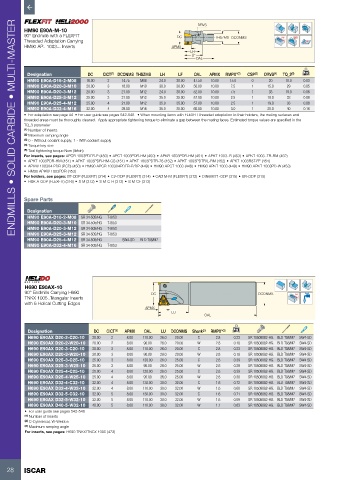

Page 30 - ISCAR(MILLINGCATALOG 38_2021)

DRVS
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
HM90 E90A-M-10
90° Endmills with a FLEXFIT DC THSZMS DCONMS Rd°
Threaded Adaptation Carrying
HM90 AP.. 1003... Inserts APMX
LH
LF
OAL

Designation DC CICT (1) DCONMS THSZMS LH LF OAL APMX RMPX° (2) CSP (3) DRVS (4) TQ_3 (5) kg
HM90 E90A-D16-2-M08 16.00 2 14.75 M08 24.0 30.00 47.50 10.00 15.0 0 20 10.0 0.03
HM90 E90A-D20-3-M10 20.00 3 18.00 M10 30.0 30.00 50.00 10.00 7.5 1 15.0 29 0.05
HM90 E90A-D20-3-M12 20.00 3 21.00 M12 24.0 30.00 52.00 10.00 7.5 1 33 19.0 0.06
HM90 E90A-D25-3-M12 25.00 3 21.00 M12 35.0 35.00 57.00 10.00 2.5 1 19.0 33 0.08
HM90 E90A-D25-4-M12 25.00 4 21.00 M12 35.0 35.00 57.00 10.00 2.5 1 19.0 33 0.08
HM90 E90A-D32-4-M16 32.00 4 29.00 M16 35.0 35.00 60.00 10.00 3.0 1 25.0 40 0.16
• For adaptation see page 44 • For user guide see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
(1) Number of inserts
(2) Maximum ramping angle
(3) 0 - Without coolant supply, 1 - With coolant supply
(4) Torque key size
(5) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: APCR 1003PDFR-P (450) • APCT 1003PDR-HM (450) • APKR 1003PDR-HM (451) • APKT 1003..R (453) • APKT 1003..TR-RM (452)
• APKT 1003PDR-HM (451) • APKT 1003PDR-HM-CS (451) • APKT 1003PDTR-76 (452) • APKT 1003PDTR/L-RM (452) • APKT 1003R8T-FF (454)
• APKW 100304 PDR (PCD) (450) • HM90 APCR 100304PDFR-P/DP (449) • HM90 APCT 1003 (448) • HM90 APKT 1003 (449) • HM90 APKT 1003PD-W (453)
• HM90 APKW 1003PDR (453)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)

Spare Parts

Designation
HM90 E90A-D16-2-M08 SR 34-505/HG T-8/53
HM90 E90A-D20-3-M10 SR 34-505/HG T-8/53
HM90 E90A-D20-3-M12 SR 34-505/HG T-8/53
HM90 E90A-D25-3-M12 SR 34-505/HG T-8/53
HM90 E90A-D25-4-M12 SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D32-4-M16 SR 34-505/HG T-8/53

H690 E90AX-10
90° Endmills Carrying H690 DC DCONMS Rd°
TNKX 1005..Triangular Inserts
with 6 Helical Cutting Edges
APMX
LU
OAL

Designation DC CICT (1) APMX OAL LU DCONMS Shank (2) RMPX° (3) kg
H690 E90AX D20-2-C20-10 20.00 2 8.00 110.00 26.0 20.00 C 2.8 0.23 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D20-2-W20-10 20.00 2 8.00 90.00 26.0 20.00 W 2.8 0.18 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D20-3-C20-10 20.00 3 8.00 110.00 26.0 20.00 C 2.8 0.23 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D20-3-W20-10 20.00 3 8.00 90.00 26.0 20.00 W 2.8 0.18 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D25-3-C25-10 25.00 3 8.00 120.00 26.0 25.00 C 2.6 0.39 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D25-3-W25-10 25.00 3 8.00 95.00 26.0 25.00 W 2.6 0.29 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D25-4-C25-10 25.00 4 8.00 120.00 26.0 25.00 C 2.6 0.39 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D25-4-W25-10 25.00 4 8.00 95.00 26.0 25.00 W 2.6 0.30 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D32-4-C32-10 32.00 4 8.00 130.00 30.0 32.00 C 1.6 0.72 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D32-4-W32-10 32.00 4 8.00 110.00 30.0 32.00 W 1.6 0.60 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D32-5-C32-10 32.00 5 8.00 130.00 30.0 32.00 C 1.6 0.71 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D32-5-W32-10 32.00 5 8.00 110.00 30.0 32.00 W 1.6 0.59 SR 10508082-HG BLD T08/M7 SW4-SD
H690 E90AX D40-5-W32-10 40.00 5 8.00 110.00 38.0 32.00 W 1.1 0.63 SR 10508082-HG BLD T08/M7 SW4-SD
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
(3) Maximum ramping angle
For inserts, see pages: H690 TNKX/TNCX 1005 (472)

28 ISCAR
