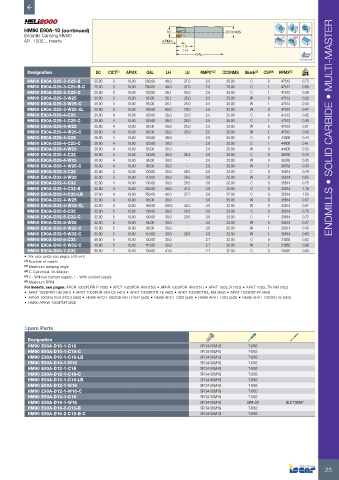

Page 27 - ISCAR(MILLINGCATALOG 38_2021)

HM90 E90A-10 (continued) DC DCONMS
Endmills Carrying HM90 Rd°
AP.. 1003... Inserts APMX
LU
LH
OAL

Designation DC CICT (1) APMX OAL LH LU RMPX° (2) DCONMS Shank (3) CSP (4) RPMX (5) kg
HM90 E90A-D25-3-C25-B 25.00 3 10.00 200.00 40.0 37.0 2.5 25.00 C 0 47512 0.72
HM90 E90A-D25-3-C25-B-C 25.00 3 10.00 200.00 40.0 37.0 2.5 25.00 C 1 47512 0.68
HM90 E90A-D25-3-C25-C 25.00 3 10.00 120.00 26.1 25.0 2.5 25.00 C 1 47512 0.39
HM90 E90A-D25-3-W25 25.00 3 10.00 95.00 26.1 25.0 2.5 25.00 W 0 47512 0.32
HM90 E90A-D25-3-W25-C 25.00 3 10.00 95.00 26.1 25.0 2.5 25.00 W 1 47512 0.30
HM90 E90A-D25-3-W25-XL 25.00 3 10.00 140.00 80.0 79.0 2.5 25.00 W 0 47512 0.47
HM90 E90A-D25-4-C25 25.00 4 10.00 120.00 26.0 25.0 2.5 25.00 C 0 47512 0.42
HM90 E90A-D25-4-C25-C 25.00 4 10.00 120.00 26.0 25.0 2.5 25.00 C 1 47512 0.39
HM90 E90A-D25-4-W25 25.00 4 10.00 95.00 26.0 25.0 2.5 25.00 W 0 47512 0.31 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
HM90 E90A-D25-4-W25-C 25.00 4 10.00 95.00 26.0 25.0 2.5 25.00 W 1 47512 0.30
HM90 E90A-D28-4-C25 28.00 4 10.00 120.00 26.0 - 2.0 25.00 C 0 44005 0.44
HM90 E90A-D28-4-C25-C 28.00 4 10.00 120.00 26.0 - 2.0 25.00 C 1 44005 0.41
HM90 E90A-D28-4-W25 28.00 4 10.00 95.00 26.0 - 2.0 25.00 W 0 44005 0.33
HM90 E90A-D30-4-C32 30.00 4 10.00 130.00 40.0 35.4 2.0 32.00 C 0 36782 0.72
HM90 E90A-D30-4-W25 30.00 4 10.00 95.00 30.0 - 2.0 25.00 W 0 36782 0.35
HM90 E90A-D30-4-W25-C 30.00 4 10.00 95.00 30.0 - 2.0 25.00 W 1 36782 0.33
HM90 E90A-D32-3-C32 32.00 3 10.00 130.00 30.0 28.5 3.0 32.00 C 0 35614 0.76
HM90 E90A-D32-3-W32 32.00 3 10.00 110.00 30.0 28.5 3.0 32.00 W 0 35614 0.63
HM90 E90A-D32-4-C32 32.00 4 10.00 130.00 30.0 28.5 3.0 32.00 C 0 35614 0.75
HM90 E90A-D32-4-C32-B 32.00 4 10.00 200.00 40.0 37.2 3.0 32.00 C 0 35614 1.18
HM90 E90A-D32-4-C32-LB 32.00 4 10.00 250.00 40.0 37.2 3.0 32.00 C 0 35614 1.50
HM90 E90A-D32-4-W25 32.00 4 10.00 95.00 30.0 - 3.0 25.00 W 0 35614 0.37
HM90 E90A-D32-4-W32-XL 32.00 4 10.00 160.00 100.0 28.5 3.0 32.00 W 0 35614 0.87
HM90 E90A-D32-5-C32 32.00 5 10.00 130.00 30.0 28.5 3.0 32.00 C 0 35614 0.75
HM90 E90A-D32-5-C32-C 32.00 5 10.00 130.00 30.0 28.5 3.0 32.00 C 1 35614 0.72
HM90 E90A-D32-5-W25 32.00 5 10.00 95.00 30.0 - 3.0 25.00 W 0 35614 0.37
HM90 E90A-D32-5-W25-C 32.00 5 10.00 95.00 30.0 - 3.0 25.00 W 1 35614 0.35
HM90 E90A-D32-5-W32-C 32.00 5 10.00 110.00 30.0 28.5 3.0 32.00 W 1 35614 0.60
HM90 E90A-D40-5-C32 40.00 5 10.00 130.00 30.0 - 2.7 32.00 C 0 31855 0.83
HM90 E90A-D40-5-W32-C 40.00 5 10.00 110.00 30.0 - 2.7 32.00 W 1 31855 0.68
HM90 E90A-D50-7-C32 50.00 7 10.00 130.00 41.6 - 2.7 32.00 C 0 28492 0.94
• For user guide see pages 542-548
(1) Number of inserts
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
(4) 0 - Without coolant supply, 1 - With coolant supply
(5) Maximum RPM
For inserts, see pages: APCR 1003PDFR-P (450) • APCT 1003PDR-HM (450) • APKR 1003PDR-HM (451) • APKT 1003..R (453) • APKT 1003..TR-RM (452)
• APKT 1003PDR-HM (451) • APKT 1003PDR-HM-CS (451) • APKT 1003PDTR-76 (452) • APKT 1003PDTR/L-RM (452) • APKT 1003R8T-FF (454)
• APKW 100304 PDR (PCD) (450) • HM90 APCR 100304PDFR-P/DP (449) • HM90 APCT 1003 (448) • HM90 APKT 1003 (449) • HM90 APKT 1003PD-W (453)
• HM90 APKW 1003PDR (453)

Spare Parts

Designation
HM90 E90A-D10-1-C10 SR 34-505/HG T-8/53
HM90 E90A-D10-1-C10-C SR 34-505/HG T-8/53
HM90 E90A-D10-1-C16-LB SR 34-505/HG T-8/53
HM90 E90A-D10-1-W16 SR 34-505/HG T-8/53
HM90 E90A-D12-1-C16 SR 34-505/HG T-8/53
HM90 E90A-D12-1-C16-C SR 34-505/HG T-8/53
HM90 E90A-D12-1-C16-LB SR 34-505/HG T-8/53
HM90 E90A-D12-1-W16 SR 34-505/HG T-8/53
HM90 E90A-D12-1-W16-C SR 34-505/HG T-8/53
HM90 E90A-D14-1-C16 SR 34-505/HG T-8/53
HM90 E90A-D14-1-W16 SR 34-505/HG SW4-SD BLD T08/M7
HM90 E90A-D16-2-C15-B SR 34-505/HG T-8/53
HM90 E90A-D16-2-C15-B-C SR 34-505/HG T-8/53

25
