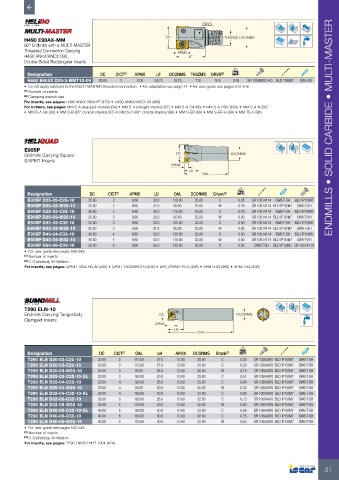

Page 23 - ISCAR(MILLINGCATALOG 38_2021)

DRVS

H490 E90AX-MM DC THSZMS DCONMS
90° Endmills with a MULTI-MASTER
Threaded Connection Carrying APMX
H490 ANKX/ANCX 090... LF
Double-Sided Rectangular Inserts

Designation DC CICT (1) APMX LF DCONMS THSZMS DRVS (2) kg
H490 E90AX D20-3-MMT12-09 20.00 3 8.00 24.70 18.70 T12 16.0 0.05 SR 10508082-HG BLD T08/M7 SW4-SD
• Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
For inserts, see pages: H490 ANKX 0904-FF (470) • H490 ANKX/ANCX-09 (469)
For holders, see pages: MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85)
• MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

E90SP
Endmills Carrying Square DC DCONMS
S/XPMT Inserts
APMX
LU
OAL

Designation DC CICT (1) APMX LU OAL DCONMS Shank (2) kg
E90SP D25-02-C25-10 25.00 2 9.60 32.0 110.00 25.00 C 0.35 SR 10514114 SW6-T-SH BLD IP15/M7
E90SP D25-02-W25-10 25.00 2 9.60 32.0 95.00 25.00 W 0.29 SR 10514114 BLD IP15/M7 SW6-T-SH
E90SP D25-03-C25-10 25.00 3 9.60 32.0 110.00 25.00 C 0.76 SR 10514114 SW6-T-SH BLD IP15/M7
E90SP D25-03-W25-10 25.00 3 9.60 32.0 95.00 25.00 W 0.00 SR 10514114 BLD IP15/M7 SW6-T-SH
E90SP D32-03-C32-10 32.00 3 9.60 32.0 130.00 32.00 C 0.69 SR 10514114 SW6-T-SH BLD IP15/M7
E90SP D32-03-W25-10 32.00 3 9.60 31.8 95.00 25.00 W 0.00 SR 10514114 BLD IP15/M7 SW6-T-SH
E90SP D40-04-C32-10 40.00 4 9.60 32.0 130.00 32.00 C 0.00 SR 10514114 SW6-T-SH BLD IP15/M7
E90SP D40-04-W32-10 40.00 4 9.60 32.0 110.00 32.00 W 0.00 SR 10514114 BLD IP15/M7 SW6-T-SH
E90SP D50-06-C32-10 50.00 6 9.60 35.0 130.00 32.00 C 0.00 SW6-T-SH BLD IP15/M7 SR 10514114
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
For inserts, see pages: QPMR 1004-HQ-M (495) • QPMT 100408PDTN (495) • SPCT/SPMR PDR (496) • SPMT-HQ (495) • XPMT-HQ (496)

T290 ELN-10
Endmills Carrying Tangentially DC DCONMS
Clamped Inserts
APMX
LH
OAL

Designation DC CICT (1) OAL LH APMX DCONMS Shank (2) kg
T290 ELN D20-02-C20-10 20.00 2 110.00 27.0 10.00 20.00 C 0.22 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D20-03-C20-10 20.00 3 110.00 27.0 10.00 20.00 C 0.23 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D20-03-W20-10 20.00 3 90.00 28.0 10.00 20.00 W 0.18 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D25-03-C25-10-XL 25.00 3 150.00 30.0 10.00 25.00 C 0.51 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D25-04-C25-10 25.00 4 120.00 28.0 10.00 25.00 C 0.40 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D25-04-W25-10 25.00 4 95.00 30.0 10.00 25.00 W 0.30 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D32-04-C32-10-XL 32.00 4 150.00 30.0 10.00 32.00 C 0.85 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D32-05-C32-10 32.00 5 130.00 28.0 10.00 32.00 C 0.73 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D32-05-W32-10 32.00 5 110.00 30.0 10.00 32.00 W 0.60 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D40-05-C32-10-XL 40.00 5 150.00 30.0 10.00 32.00 C 0.88 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D40-06-C32-10 40.00 6 130.00 30.0 10.00 32.00 C 0.75 SR 10504970 BLD IP15/M7 SW6-T-SH
T290 ELN D40-06-W32-10 40.00 6 110.00 30.0 10.00 32.00 W 0.63 SR 10504970 BLD IP15/M7 SW6-T-SH
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
For inserts, see pages: T290 LNMT/LNHT 1004 (474)
