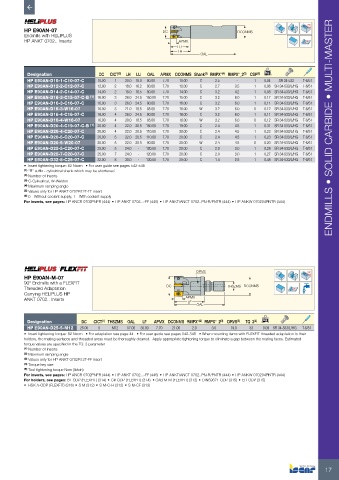

P. 19
Rd°
HP E90AN-07 DC DCONMS
Endmills with HELIPLUS
HP ANKT 0702.. Inserts APMX
LU
LH
OAL
Designation DC CICT (2) LH LU OAL APMX DCONMS Shank (3) RMPX° (4) RMPX°_2 (5) CSP (6) kg
HP E90AN-D10-1-C10-07-C 10.00 1 20.0 18.0 80.00 7.70 10.00 C 2.5 - 1 0.04 SR 34-533 T-6/51
HP E90AN-D12-2-C12-07-C 12.00 2 18.0 16.2 80.00 7.70 12.00 C 2.7 3.5 1 0.06 SR 34-533/L/HG T-6/51
HP E90AN-D14-2-C14-07-C 14.00 2 18.0 16.5 80.00 7.70 14.00 C 3.2 4.2 1 0.08 SR 34-533/L/HG T-6/51
HP E90AN-D16-3-C15-07-C-B (1) 16.00 3 26.0 24.5 150.00 7.70 15.00 C 3.2 6.0 1 0.17 SR 34-533/L/HG T-6/51
HP E90AN-D16-3-C16-07-C 16.00 3 26.0 24.5 90.00 7.70 16.00 C 3.2 6.0 1 0.11 SR 34-533/L/HG T-6/51
HP E90AN-D16-3-W16-07 16.00 3 21.0 18.5 85.00 7.70 16.00 W 3.2 6.0 0 0.12 SR 34-533/L/HG T-6/51
HP E90AN-D16-4-C16-07-C 16.00 4 26.0 24.5 90.00 7.70 16.00 C 3.2 6.0 1 0.11 SR 34-533/L/HG T-6/51
HP E90AN-D16-4-W16-07 16.00 4 20.0 18.5 85.00 7.70 16.00 W 3.2 6.0 0 0.12 SR 34-533/L/HG T-6/51
HP E90AN-D20-4-C19-07-C-B (1) 20.00 4 22.0 20.5 160.00 7.70 19.00 C 2.4 4.5 1 0.31 SR 34-533/L/HG T-6/51 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
HP E90AN-D20-4-C20-07-C 20.00 4 22.0 20.5 110.00 7.70 20.00 C 2.4 4.5 1 0.23 SR 34-533/L/HG T-6/51
HP E90AN-D20-5-C20-07-C 20.00 5 22.0 20.5 110.00 7.70 20.00 C 2.4 4.5 1 0.23 SR 34-533/L/HG T-6/51
HP E90AN-D20-5-W20-07 20.00 5 22.0 20.5 90.00 7.70 20.00 W 2.4 4.5 0 0.20 SR 34-533/L/HG T-6/51
HP E90AN-D25-5-C20-07-C 25.00 5 24.0 - 120.00 7.70 20.00 C 2.0 3.0 1 0.28 SR 34-533/L/HG T-6/51
HP E90AN-D25-7-C20-07-C 25.00 7 24.0 - 120.00 7.70 20.00 C 2.0 3.0 1 0.27 SR 34-533/L/HG T-6/51
HP E90AN-D32-8-C25-07-C 32.00 8 30.0 - 130.00 7.70 25.00 C 1.4 2.5 1 0.48 SR 34-533/L/HG T-6/51
• Insert tightening torque: 62 Nxcm • For user guide see pages 542-548
(1) "B" suffix - cylindrical shank which may be shortened.
(2) Number of inserts
(3) C-Cylindrical, W-Weldon
(4) Maximum ramping angle
(5) Values only for HP ANKT 0702R12T-FF insert
(6) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: HP ANCR 0702PNFR (444) • HP ANKT 0702...-FF (445) • HP ANKT/ANCT 0702..PN-R/PNTR (444) • HP ANKW 070204PNTR (444)
DRVS Rd°
HP E90AN-M-07
90° Endmills with a FLEXFIT DCONMS
Threaded Adaptation DC THSZMS
Carrying HELIPLUS HP
ANKT 0702.. Inserts APMX
LF
OAL
Designation DC CICT (1) THSZMS OAL LF APMX DCONMS RMPX° (2) RMPX°_2 (3) DRVS (5) TQ_3 (4) kg
HP E90AN-D25-5-M12 25.00 5 M12 57.00 35.00 7.70 21.00 2.0 3.0 19.0 33 0.09 SR 34-533/L/HG T-6/51
• Insert tightening torque: 62 Nxcm • For adaptation see page 44 • For user guide see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their
holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated
torque values are specified in the TQ_3 parameter
(1) Number of inserts
(2) Maximum ramping angle
(3) Values only for HP ANKT 0702R12T-FF insert
(4) Torque key size
(5) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: HP ANCR 0702PNFR (444) • HP ANKT 0702...-FF (445) • HP ANKT/ANCT 0702..PN-R/PNTR (444) • HP ANKW 070204PNTR (444)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
