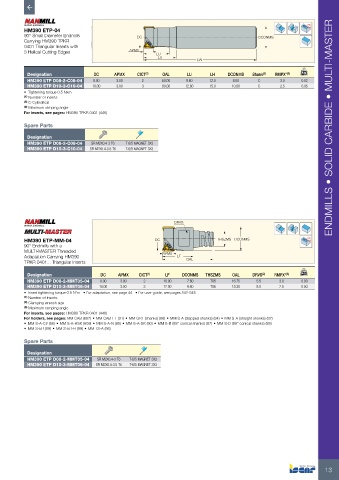

Page 15 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
HM390 ETP-04
90° Small Diameter Endmills DC DCONMS
Carrying HM390 TPKR
0401 Triangular Inserts with
3 Helical Cutting Edges APMX LU
LH
OAL

Designation DC APMX CICT (1) OAL LU LH DCONMS Shank (2) RMPX° (3) kg
HM390 ETP D08-2-C08-04 8.00 3.00 2 60.00 9.60 12.0 8.00 C 3.0 0.02
HM390 ETP D10-3-C10-04 10.00 3.00 3 80.00 12.60 15.0 10.00 C 2.5 0.05
• Tightening torque 0.5 Nxm
(1) Number of inserts
(2) C-Cylindrical
(3) Maximum ramping angle
For inserts, see pages: HM390 TPKR 0401 (446)

Spare Parts ENDMILLS • SOLID CARBIDE • MULTI-MASTER

Designation
HM390 ETP D08-2-C08-04 SR M2X0.4-3 T6 T-6/5 MAGNET 3X3
HM390 ETP D10-3-C10-04 SR M2X0.4-3.5 T6 T-6/5 MAGNET 3X3

DRVS

HM390 ETP-MM-04 DC THSZMS DCONMS Rd°
90° Endmills with a
MULTI-MASTER Threaded APMX
Adaptation Carrying HM390 LF OAL
TPKR 0401... Triangular Inserts

Designation DC APMX CICT (1) LF DCONMS THSZMS OAL DRVS (2) RMPX° (3) kg
HM390 ETP D08-2-MMT05-04 8.00 3.00 2 10.00 7.60 T05 16.75 5.5 3.0 0.00
HM390 ETP D10-3-MMT06-04 10.00 3.00 3 12.00 9.60 T06 18.30 8.0 2.5 0.00
• Insert tightening torque 0.5 N*m • For adaptation, see page 44 • For user guide, see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle
For inserts, see pages: HM390 TPKR 0401 (446)
For holders, see pages: MM CAB (667) • MM CAB-T-T (91) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87)
• MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88)
• MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)

Spare Parts

Designation
HM390 ETP D08-2-MMT05-04 SR M2X0.4-3 T6 T-6/5 MAGNET 3X3
HM390 ETP D10-3-MMT06-04 SR M2X0.4-3.5 T6 T-6/5 MAGNET 3X3

13
