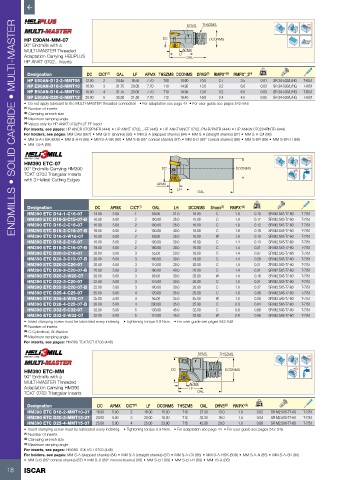

Page 20 - ISCAR(MILLINGCATALOG 38_2021)

DRVS THSZMS Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

HP E90AN-MM-07 DC DCONMS
90° Endmills with a
MULTI-MASTER Threaded APMX
Adaptation Carrying HELIPLUS LF OAL
HP ANKT 0702.. Inserts

Designation DC CICT (1) OAL LF APMX THSZMS DCONMS DRVS (2) RMPX° (3) RMPX°_2 (4) kg
HP E90AN-D12-2-MMT08 12.00 2 24.45 16.50 7.70 T08 10.60 10.0 2.7 3.5 0.01 SR 34-533/L/HG T-6/51
HP E90AN-D16-3-MMT10 16.00 3 31.75 20.00 7.70 T10 14.95 13.0 3.2 6.0 0.03 SR 34-533/L/HG T-6/51
HP E90AN-D16-4-MMT10 16.00 4 31.75 20.00 7.70 T10 14.95 13.0 3.2 6.0 0.03 SR 34-533/L/HG T-6/51
HP E90AN-D20-5-MMT12 20.00 5 35.30 21.50 7.70 T12 18.40 16.0 2.4 4.5 0.05 SR 34-533/L/HG T-6/51
• Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle
(4) Values only for HP ANKT 0702R12T-FF insert
For inserts, see pages: HP ANCR 0702PNFR (444) • HP ANKT 0702...-FF (445) • HP ANKT/ANCT 0702..PN-R/PNTR (444) • HP ANKW 070204PNTR (444)
For holders, see pages: MM CAB (667) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86)
• MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89)
• MM TS-A (86)
Rd°

HM390 ETC-07
90° Endmills Carrying HM390 DC DCONMS
TCKT 0703 Triangular Inserts
with 3 Helical Cutting Edges
APMX
LH
OAL

Designation DC APMX CICT (1) OAL LH DCONMS Shank (2) RMPX° (3) kg
HM390 ETC D14-1-C16-07 14.00 5.00 1 80.00 21.0 16.00 C 1.9 0.10 SR M2.5X5-T7-60 T-7/51
HM390 ETC D16-2-C15-07-B 16.00 5.00 2 150.00 26.0 15.00 C 1.9 0.17 SR M2.5X5-T7-60 T-7/51
HM390 ETC D16-2-C16-07 16.00 5.00 2 100.00 26.0 16.00 C 1.9 0.12 SR M2.5X5-T7-60 T-7/51
HM390 ETC D16-2-C16-07-B 16.00 5.00 2 150.00 40.0 16.00 C 1.9 0.19 SR M2.5X5-T7-60 T-7/51
HM390 ETC D16-2-W16-07 16.00 5.00 2 80.00 26.0 16.00 W 1.9 0.10 SR M2.5X5-T7-60 T-7/51
HM390 ETC D18-2-C16-07 18.00 5.00 2 100.00 30.0 16.00 C 1.4 0.13 SR M2.5X5-T7-60 T-7/51
HM390 ETC D18-2-C16-07-B 18.00 5.00 2 160.00 30.0 16.00 C 1.4 0.21 SR M2.5X5-T7-60 T-7/51
HM390 ETC D20-3-C16-07 20.00 5.00 3 55.00 20.0 16.00 C 1.4 0.07 SR M2.5X5-T7-60 T-7/51
HM390 ETC D20-3-C19-07-B 20.00 5.00 3 160.00 30.0 19.00 C 1.4 0.28 SR M2.5X5-T7-60 T-7/51
HM390 ETC D20-3-C20-07 20.00 5.00 3 110.00 30.0 20.00 C 1.4 0.21 SR M2.5X5-T7-60 T-7/51
HM390 ETC D20-3-C20-07-B 20.00 5.00 3 160.00 40.0 20.00 C 1.4 0.31 SR M2.5X5-T7-60 T-7/51
HM390 ETC D20-3-W20-07 20.00 5.00 3 85.00 30.0 20.00 W 1.4 0.16 SR M2.5X5-T7-60 T-7/51
HM390 ETC D22-3-C20-07 22.00 5.00 3 110.00 30.0 20.00 C 1.0 0.21 SR M2.5X5-T7-60 T-7/51
HM390 ETC D22-3-C20-07-B 22.00 5.00 3 180.00 30.0 20.00 C 1.0 0.37 SR M2.5X5-T7-60 T-7/51
HM390 ETC D25-4-C25-07 25.00 5.00 4 120.00 35.0 25.00 C 1.0 0.36 SR M2.5X6-T7-60 T-7/51
HM390 ETC D25-4-W25-07 25.00 5.00 4 95.00 35.0 25.00 W 1.0 0.28 SR M2.5X6-T7-60 T-7/51
HM390 ETC D28-4-C25-07-B 28.00 5.00 4 200.00 35.0 25.00 C 0.9 0.64 SR M2.5X6-T7-60 T-7/51
HM390 ETC D32-5-C32-07 32.00 5.00 5 130.00 45.0 32.00 C 0.8 0.68 SR M2.5X6-T7-60 T-7/51
HM390 ETC D32-5-W32-07 32.00 5.00 5 110.00 45.0 32.00 W 0.8 0.56 SR M2.5X6-T7-60 T-7/51
• Insert clamping screw must be lubricated every indexing. • Tightening torque 0.9 Nxm. • For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
(3) Maximum ramping angle
For inserts, see pages: HM390 TCKT/CT 0703 (446)

DRVS THSZMS Rd°

HM390 ETC-MM DC DCONMS
90° Endmills with a
MULTI-MASTER Threaded APMX
Adaptation Carrying HM390 LF
TCKT 0703 Triangular Inserts OAL
Designation DC APMX CICT (1) LF DCONMS THSZMS OAL DRVS (2) RMPX° (3) kg
HM390 ETC D16-2-MMT10-07 16.00 5.00 2 16.00 15.20 T10 27.30 13.0 1.9 0.02 SR M2.5X5-T7-60 T-7/51
HM390 ETC D20-3-MMT12-07 20.00 5.00 3 20.00 18.30 T12 33.30 16.0 1.4 0.04 SR M2.5X5-T7-60 T-7/51
HM390 ETC D25-4-MMT15-07 25.00 5.00 4 25.00 23.90 T15 42.00 20.0 1.0 0.08 SR M2.5X6-T7-60 T-7/51
• Insert clamping screw must be lubricated every indexing. • Tightening torque 0.9 Nxm. • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle
For inserts, see pages: HM390 TCKT/CT 0703 (446)
For holders, see pages: MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90)
• MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)
18 ISCAR
