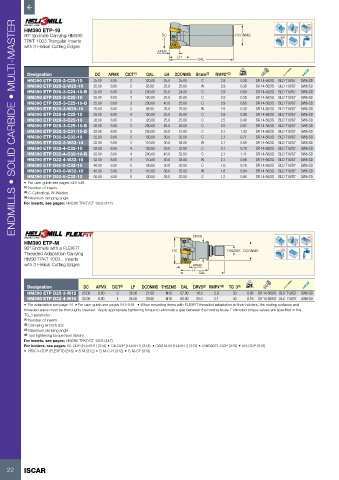

Page 24 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
HM390 ETP-10
90° Endmills Carrying HM390 DC DCONMS
TPKT 1003 Triangular Inserts
with 3 Helical Cutting Edges
APMX
LH OAL

Designation DC APMX CICT (1) OAL LH DCONMS Shank (2) RMPX° (3) kg
HM390 ETP D25-2-C25-10 25.00 8.00 2 120.00 25.0 25.00 C 2.9 0.38 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D25-2-W25-10 25.00 8.00 2 95.00 25.0 25.00 W 2.9 0.30 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D25-3-C24-10-B 25.00 8.00 3 200.00 25.0 24.00 C 2.9 0.60 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D25-3-C25-10 25.00 8.00 3 120.00 25.0 25.00 C 2.9 0.38 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D25-3-C25-10-B 25.00 8.00 3 200.00 40.0 25.00 C 2.9 0.66 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D25-3-W25-10 25.00 8.00 3 95.00 25.0 25.00 W 2.9 0.30 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D25-4-C25-10 25.00 8.00 4 120.00 25.0 25.00 C 2.9 0.38 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D28-3-C25-10 28.00 8.00 3 120.00 25.0 25.00 C 2.5 0.40 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D28-3-C25-10-B 28.00 8.00 3 200.00 25.0 25.00 C 2.5 0.67 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D32-3-C31-10-B 32.00 8.00 3 250.00 30.0 31.00 C 2.1 1.33 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D32-3-C32-10 32.00 8.00 3 130.00 30.0 32.00 C 2.1 0.71 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D32-3-W32-10 32.00 8.00 3 110.00 30.0 32.00 W 2.1 0.58 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D32-4-C32-10 32.00 8.00 4 130.00 30.0 32.00 C 2.1 0.70 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D32-4-C32-10-B 32.00 8.00 4 200.00 40.0 32.00 C 2.1 1.11 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D32-4-W32-10 32.00 8.00 4 110.00 30.0 32.00 W 2.1 0.58 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D40-5-C32-10 40.00 8.00 5 130.00 30.0 32.00 C 1.6 0.76 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D40-5-W32-10 40.00 8.00 5 110.00 30.0 32.00 W 1.6 0.64 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D50-6-C32-10 50.00 8.00 6 130.00 38.0 32.00 C 1.2 0.86 SR 14-562/S BLD T10/S7 SW6-SD
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
(3) Maximum ramping angle
For inserts, see pages: HM390 TPKT/CT 1003 (447)

DRVS Rd°
HM390 ETP-M
90° Endmills with a FLEXFIT DC THSZMS DCONMS
Threaded Adaptation Carrying
HM90 TPKT 1003... Inserts
with 3 Helical Cutting Edges APMX
LF
OAL
Designation DC APMX CICT (1) LF DCONMS THSZMS OAL DRVS (2) RMPX° (3) TQ_3 (4) kg
HM390 ETP D25-3-M12 25.00 8.00 3 35.00 21.00 M12 57.00 18.0 2.9 33 0.08 SR 14-562/S BLD T10/S7 SW6-SD
HM390 ETP D32-4-M16 32.00 8.00 4 35.00 29.00 M16 60.00 25.0 2.1 40 0.16 SR 14-562/S BLD T10/S7 SW6-SD
• For adaptation see page 44 • For user guide see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle
(4) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: HM390 TPKT/CT 1003 (447)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
