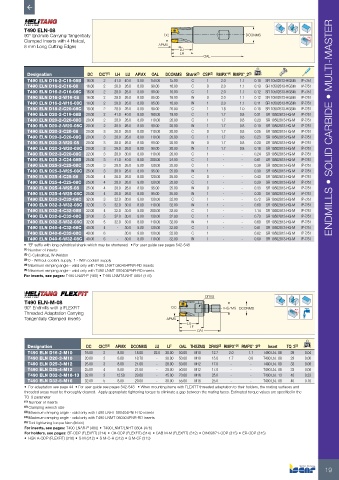

Page 21 - ISCAR(MILLINGCATALOG 38_2021)
P. 21
T490 ELN-08
90° Endmills Carrying Tangentially DC DCONMS Rd°
Clamped Inserts with 4 Helical,
8 mm Long Cutting Edges APMX
LU
LH
OAL
Designation DC CICT (1) LH LU APMX OAL DCONMS Shank (2) CSP (3) RMPX° (4) RMPX°_2 (5) kg
T490 ELN D16-2-C15-08B 16.00 2 41.0 40.0 8.00 150.00 15.00 C 1 2.0 1.1 0.18 SR 10502813-HGSM IP-7/51
T490 ELN D16-2-C16-08 16.00 2 28.0 26.0 8.00 90.00 16.00 C 0 2.0 1.1 0.13 SR 10502813-HGSM IP-7/51
T490 ELN D16-2-C16-08C 16.00 2 28.0 26.0 8.00 90.00 16.00 C 1 2.0 1.1 0.12 SR 10502813-HGSM IP-7/51
T490 ELN D16-2-W16-08 16.00 2 28.0 26.0 8.00 85.00 16.00 W 0 2.0 1.1 0.12 SR 10502813-HGSM IP-7/51
T490 ELN D16-2-W16-08C 16.00 2 28.0 26.0 8.00 85.00 16.00 W 1 2.0 1.1 0.11 SR 10502813-HGSM IP-7/51
T490 ELN D18-2-C20-08C 18.00 2 28.0 26.0 8.00 90.00 20.00 C 1 1.8 1.0 0.18 SR 10502813-HGSM IP-7/51
T490 ELN D20-2-C19-08B 20.00 2 41.0 40.0 8.00 160.00 19.00 C 1 1.7 0.8 0.31 SR 10502813-HG-M IP-7/51
T490 ELN D20-2-C20-08C 20.00 2 28.0 26.0 8.00 110.00 20.00 C 1 1.7 0.8 0.23 SR 10502813-HG-M IP-7/51
T490 ELN D20-2-W20-08C 20.00 2 28.0 26.0 8.00 90.00 20.00 W 1 1.7 0.8 0.19 SR 10502813-HG-M IP-7/51 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
T490 ELN D20-3-C20-08 20.00 3 28.0 26.0 8.00 110.00 20.00 C 0 1.7 0.8 0.25 SR 10502813-HG-M IP-7/51
T490 ELN D20-3-C20-08C 20.00 3 28.0 26.0 8.00 110.00 20.00 C 1 1.7 0.8 0.23 SR 10502813-HG-M IP-7/51
T490 ELN D20-3-W20-08 20.00 3 28.0 26.0 8.00 90.00 20.00 W 0 1.7 0.8 0.20 SR 10502813-HG-M IP-7/51
T490 ELN D20-3-W20-08C 20.00 3 28.0 26.0 8.00 90.00 20.00 W 1 1.7 0.8 0.18 SR 10502813-HG-M IP-7/51
T490 ELN D22-3-C20-08C 22.00 3 28.0 30.0 8.00 110.00 20.00 C 1 - - 0.24 SR 10502813-HG-M IP-7/51
T490 ELN D25-3-C24-08B 25.00 3 41.0 40.0 8.00 200.00 24.00 C 1 - - 0.61 SR 10502813-HG-M IP-7/51
T490 ELN D25-3-C25-08C 25.00 3 28.0 26.0 8.00 120.00 25.00 C 1 - - 0.39 SR 10502813-HG-M IP-7/51
T490 ELN D25-3-W25-08C 25.00 3 28.0 26.0 8.00 95.00 25.00 W 1 - - 0.30 SR 10502813-HG-M IP-7/51
T490 ELN D25-4-C25-08 25.00 4 28.0 26.0 8.00 120.00 25.00 C 0 - - 0.43 SR 10502813-HG-M IP-7/51
T490 ELN D25-4-C25-08C 25.00 4 28.0 26.0 8.00 120.00 25.00 C 1 - - 0.39 SR 10502813-HG-M IP-7/51
T490 ELN D25-4-W25-08 25.00 4 28.0 26.0 8.00 95.00 25.00 W 0 - - 0.33 SR 10502813-HG-M IP-7/51
T490 ELN D25-4-W25-08C 25.00 4 28.0 26.0 8.00 95.00 25.00 W 1 - - 0.30 SR 10502813-HG-M IP-7/51
T490 ELN D32-3-C32-08C 32.00 3 32.0 30.0 8.00 130.00 32.00 C 1 - - 0.72 SR 10502813-HG-M IP-7/51
T490 ELN D32-3-W32-08C 32.00 3 32.0 30.0 8.00 110.00 32.00 W 1 - - 0.60 SR 10502813-HG-M IP-7/51
T490 ELN D32-4-C32-08B 32.00 4 32.0 30.0 8.00 200.00 32.00 C 1 - - 1.14 SR 10502813-HG-M IP-7/51
T490 ELN D32-5-C32-08C 32.00 5 32.0 30.0 8.00 130.00 32.00 C 1 - - 0.73 SR 10502813-HG-M IP-7/51
T490 ELN D32-5-W32-08C 32.00 5 32.0 30.0 8.00 110.00 32.00 W 1 - - 0.60 SR 10502813-HG-M IP-7/51
T490 ELN D40-4-C32-08C 40.00 4 - 30.0 8.00 130.00 32.00 C 1 - - 0.81 SR 10502813-HG-M IP-7/51
T490 ELN D40-6-C32-08C 40.00 6 - 30.0 8.00 130.00 32.00 C 1 - - 0.82 SR 10502813-HG-M IP-7/51
T490 ELN D40-6-W32-08C 40.00 6 - 30.0 8.00 110.00 32.00 W 1 - - 0.69 SR 10502813-HG-M IP-7/51
• "B" suffix with long cylindrical shank which may be shortened. • For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
(3) 0 - Without coolant supply, 1 - With coolant supply
(4) Maximum ramping angle - valid only with T490 LNHT 080404PNR-RD inserts
(5) Maximum ramping angle - valid only with T490 LNMT 080404PNR-RD inserts
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT/LNHT 0804 (476)
DRVS
T490 ELN-M-08
90° Endmills with a FLEXFIT DC THSZMS DCONMS Rd°
Threaded Adaptation Carrying
Tangentially Clamped Inserts APMX
LU
LF
OAL
Designation DC CICT (1) APMX DCONMS LU LF OAL THSZMS DRVS (2) RMPX° (3) RMPX°_2 (4) Insert TQ_3 (5) kg
T490 ELN D16-2-M10 16.00 2 8.00 18.00 22.0 30.00 50.00 M10 12.7 2.0 1.1 T490 LN.. 08 29 0.04
T490 ELN D20-3-M10 20.00 3 8.00 18.70 - 30.00 50.00 M10 15.0 1.7 0.8 T490 LN.. 08 29 0.06
T490 ELN D25-3-M12 25.00 3 8.00 21.00 - 28.00 50.00 M12 17.0 - - T490 LN.. 08 33 0.08
T490 ELN D25-4-M12 25.00 4 8.00 21.00 - 28.00 50.00 M12 17.0 - - T490 LN.. 08 33 0.08
T490 ELN D32-3-M16-13 32.00 3 12.50 29.00 - 45.00 70.00 M16 25.0 - - T490 LN.. 13 40 0.22
T490 ELN D32-5-M16 32.00 5 8.00 29.00 - 30.00 55.00 M16 25.0 - - T490 LN.. 08 40 0.16
• For adaptation see page 44 • For user guide see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle - valid only with T490 LNHT 080404PNR-RD inserts
(4) Maximum ramping angle - valid only with T490 LNMT 080404PNR-RD inserts
(5) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT/LNHT 0804 (476)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
19
