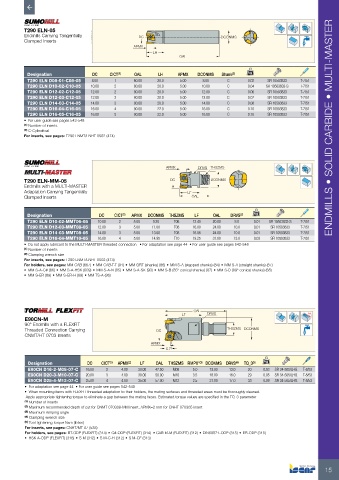

Page 17 - ISCAR(MILLINGCATALOG 38_2021)

T290 ELN-05
Endmills Carrying Tangentially DC DCONMS
Clamped Inserts
APMX
LH
OAL

Designation DC CICT (1) OAL LH APMX DCONMS Shank (2) kg
T290 ELN D08-01-C08-05 8.00 1 60.00 20.0 5.00 8.00 C 0.02 SR 10503833 T-7/51
T290 ELN D10-02-C10-05 10.00 2 80.00 20.0 5.00 10.00 C 0.04 SR 10503833-S T-7/51
T290 ELN D12-02-C12-05 12.00 2 80.00 20.0 5.00 12.00 C 0.06 SR 10503833 T-7/51
T290 ELN D12-03-C12-05 12.00 3 80.00 20.0 5.00 12.00 C 0.07 SR 10503833 T-7/51
T290 ELN D14-03-C14-05 14.00 3 80.00 20.0 5.00 14.00 C 0.08 SR 10503833 T-7/51
T290 ELN D16-04-C16-05 16.00 4 80.00 22.0 5.00 16.00 C 0.10 SR 10503833 T-7/51
T290 ELN D16-05-C16-05 16.00 5 80.00 22.0 5.00 16.00 C 0.10 SR 10503833 T-7/51
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical ENDMILLS • SOLID CARBIDE • MULTI-MASTER
For inserts, see pages: T290 LNMT/LNHT 0502 (474)

THSZMS
APMX DRVS

T290 ELN-MM-05 DC DCONMS
Endmills with a MULTI-MASTER
Adaptation Carrying Tangentially LF
Clamped Inserts OAL

Designation DC CICT (1) APMX DCONMS THSZMS LF OAL DRVS (2) kg
T290 ELN D10-02-MMT06-05 10.00 2 5.00 9.20 T06 13.40 20.00 8.0 0.01 SR 10503833-S T-7/51
T290 ELN D12-03-MMT08-05 12.00 3 5.00 11.00 T08 16.00 24.00 10.0 0.01 SR 10503833 T-7/51
T290 ELN D14-03-MMT08-05 14.00 3 5.00 13.00 T08 16.06 24.00 10.0 0.01 SR 10503833 T-7/51
T290 ELN D16-04-MMT10-05 16.00 4 5.00 14.95 T10 19.25 31.00 13.0 0.03 SR 10503833 T-7/51
• Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
For inserts, see pages: T290 LNMT/LNHT 0502 (474)
For holders, see pages: MM CAB (667) • MM CAB-T-T (91) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87)
• MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88)
• MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)

OAL DRVS Rd°
E90CN-M LF
90° Endmills with a FLEXFIT
Threaded Connection Carrying DC THSZMS DCONMS
CNMT/HT 0703 Inserts
APMX
5.7

Designation DC CICT (1) APMX (2) LF OAL THSZMS RMPX° (3) DCONMS DRVS (4) TQ_3 (5) kg
E90CN D16-2-M08-07-C 16.00 2 4.00 30.00 47.50 M08 5.0 13.00 13.0 20 0.03 SR 34-505/LHG T-8/53
E90CN D20-3-M10-07-C 20.00 3 4.00 30.00 50.00 M10 3.5 18.00 16.0 29 0.05 SR 34-505/LHG T-8/53
E90CN D25-4-M12-07-C 25.00 4 4.00 35.00 57.00 M12 2.5 21.00 17.0 33 0.09 SR 34-505/LHG T-8/53
• For adaptation see page 44 • For user guide see pages 542-548
• When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned.
Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
(1) Number of inserts
(2) Maximum recommended depth of cut for CNMT 070308-MM insert, APMX=2 mm for CNHT 070305 insert
(3) Maximum ramping angle
(4) Clamping wrench size
(5) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: CNHT/MT 07 (538)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)

15
