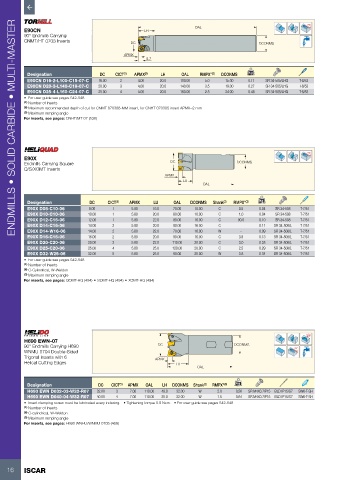

Page 18 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
E90CN LH OAL
90° Endmills Carrying
CNMT/HT 0703 Inserts DC DCONMS

APMX
5.7

Designation DC CICT (1) APMX (2) LH OAL RMPX° (3) DCONMS kg
E90CN D16-2-L100-C15-07-C 16.00 2 4.00 20.0 100.00 5.0 15.00 0.11 SR 34-505/LHG T-8/53
E90CN D20-3-L140-C19-07-C 20.00 3 4.00 20.0 140.00 3.5 19.00 0.27 SR 34-505/LHG T-8/53
E90CN D25-4-L160-C24-07-C 25.00 4 4.00 20.0 160.00 2.5 24.00 0.48 SR 34-505/LHG T-8/53
• For user guide see pages 542-548
(1) Number of inserts
(2) Maximum recommended depth of cut for CNMT 070308-MM insert, for CNHT 070305 insert APMX=2 mm
(3) Maximum ramping angle
For inserts, see pages: CNHT/MT 07 (538)

Rd°
E90X
Endmills Carrying Square DC DCONMS
Q/S/XOMT Inserts
APMX
LU
OAL

Designation DC CICT (1) APMX LU OAL DCONMS Shank (2) RMPX° (3) kg
E90X D08-C10-06 8.00 1 5.80 16.0 70.00 10.00 C 0.5 0.04 SR 34-508 T-7/51
E90X D10-C10-06 10.00 1 5.80 20.0 80.00 10.00 C 1.0 0.04 SR 34-508 T-7/51
E90X D12-C16-06 12.00 1 5.80 22.0 80.00 16.00 C 90.0 0.10 SR 34-508 T-7/51
E90X D14-C16-06 14.00 2 5.80 20.0 80.00 16.00 C - 0.11 SR 34-508/L T-7/51
E90X D14-W16-06 14.00 2 5.80 22.0 70.00 16.00 W - 0.09 SR 34-508/L T-7/51
E90X D16-C16-06 16.00 2 5.80 20.0 90.00 16.00 C 3.5 0.13 SR 34-508/L T-7/51
E90X D20-C20-06 20.00 3 5.80 22.0 110.00 20.00 C 3.0 0.25 SR 34-508/L T-7/51
E90X D25-C20-06 25.00 4 5.80 25.0 120.00 20.00 C 2.5 0.29 SR 34-508/L T-7/51
E90X D32-W25-06 32.00 5 5.80 25.0 90.00 25.00 W 3.8 0.34 SR 34-508/L T-7/51
• For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
(3) Maximum ramping angle
For inserts, see pages: QOMT-HQ (494) • SOMT-HQ (494) • XOMT-HQ (494)

H690 EWN-07
90° Endmills Carrying H690 DC DCONMS Rd°
WNMU 0704 Double-Sided
Trigonal Inserts with 6 APMX
Helical Cutting Edges LH
OAL

Designation DC CICT (1) APMX OAL LH DCONMS Shank (2) RMPX° (3) kg
H690 EWN D032-03-W32-R07 32.00 3 7.00 110.00 48.0 32.00 W 2.0 0.56 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
H690 EWN D040-04-W32-R07 40.00 4 7.00 110.00 35.0 32.00 W 1.5 0.64 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
• Insert clamping screw must be lubricated every indexing. • Tightening torque 0.9 Nxm. • For user guide see pages 542-548
(1) Number of inserts
(2) C-cylindrical, W-Weldon
(3) Maximum ramping angle
For inserts, see pages: H690 WNHU/WNMU 0705 (469)

16 ISCAR
