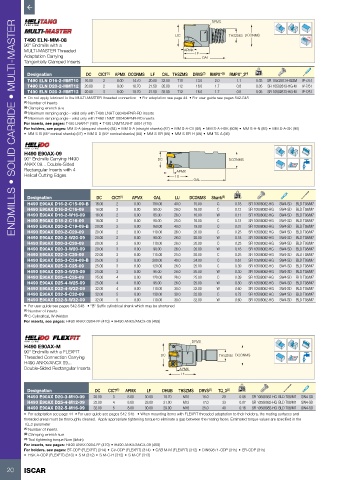

Page 22 - ISCAR(MILLINGCATALOG 38_2021)

DRVS
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

T490 ELN-MM-08 DC THSZMS DCONMS Rd°
90° Endmills with a
MULTI-MASTER Threaded APMX LF
Adaptation Carrying OAL
Tangentially Clamped Inserts

Designation DC CICT (1) APMX DCONMS LF OAL THSZMS DRVS (2) RMPX° (3) RMPX°_2 (4) kg
T490 ELN D16-2-MMT10 16.00 2 8.00 14.70 20.00 32.00 T10 13.0 2.0 1.1 0.03 SR 10502813-HGSM IP-7/51
T490 ELN D20-2-MMT12 20.00 2 8.00 18.70 21.50 35.00 T12 16.0 1.7 0.8 0.05 SR 10502813-HG-M IP-7/51
T490 ELN D20-3-MMT12 20.00 3 8.00 18.70 21.50 35.00 T12 16.0 1.7 0.8 0.05 SR 10502813-HG-M IP-7/51
• Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle - valid only with T490 LNHT 080404PNR-RD inserts
(4) Maximum ramping angle - valid only with T490 LNMT 080404PNR-RD inserts
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT/LNHT 0804 (476)
For holders, see pages: MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90)
• MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)

H490 E90AX-09
90° Endmills Carrying H490 DC DCONMS
ANKX 09... Double-Sided
Rectangular Inserts with 4 APMX
Helical Cutting Edges LU
OAL

Designation DC CICT (1) APMX OAL LU DCONMS Shank (2) kg
H490 E90AX D16-2-C15-09-B 16.00 2 8.00 150.00 40.0 15.00 C 0.18 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D16-2-C16-09 16.00 2 8.00 90.00 26.0 16.00 C 0.12 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D16-2-W16-09 16.00 2 8.00 85.00 26.0 16.00 W 0.11 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D18-2-C16-09 18.00 2 8.00 90.00 25.0 16.00 C 0.12 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D20-2-C19-09-B 20.00 2 8.00 160.00 40.0 19.00 C 0.31 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D20-2-C20-09 20.00 2 8.00 110.00 26.0 20.00 C 0.23 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D20-2-W20-09 20.00 2 8.00 90.00 26.0 20.00 W 0.18 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D20-3-C20-09 20.00 3 8.00 110.00 26.0 20.00 C 0.23 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D20-3-W20-09 20.00 3 8.00 90.00 26.0 20.00 W 0.18 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D22-3-C20-09 22.00 3 8.00 115.00 25.0 20.00 C 0.25 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D25-3-C24-09-B 25.00 3 8.00 200.00 40.0 24.00 C 0.61 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D25-3-C25-09 25.00 3 8.00 120.00 26.0 25.00 C 0.39 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D25-3-W25-09 25.00 3 8.00 95.00 26.0 25.00 W 0.30 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D25-4-C25-09 25.00 4 8.00 120.00 26.0 25.00 C 0.39 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D25-4-W25-09 25.00 4 8.00 95.00 26.0 25.00 W 0.30 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D32-4-W32-09 32.00 4 8.00 110.00 30.0 32.00 W 0.60 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D32-5-C32-09 32.00 5 8.00 130.00 30.0 32.00 C 0.72 SR 10508082-HG SW4-SD BLD T08/M7
H490 E90AX D32-5-W32-09 32.00 5 8.00 110.00 30.0 32.00 W 0.60 SR 10508082-HG SW4-SD BLD T08/M7
• For user guide see pages 542-548 • "B" Suffix cylindrical shank which may be shortened
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
For inserts, see pages: H490 ANKX 0904-FF (470) • H490 ANKX/ANCX-09 (469)

DRVS
H490 E90AX-M
90° Endmills with a FLEXFIT
Threaded Connection Carrying DC THSZMS DCONMS
H490 ANKX/ANCX 09...
Double-Sided Rectangular Inserts APMX
LF

Designation DC CICT (1) APMX LF DHUB THSZMS DRVS (2) TQ_3 (3) kg
H490 E90AX D20-3-M10-09 20.00 3 8.00 30.00 18.70 M10 16.0 29 0.06 SR 10508082-HG BLD T08/M7 SW4-SD
H490 E90AX D25-4-M12-09 25.00 4 8.00 28.00 21.00 M12 17.0 33 0.07 SR 10508082-HG BLD T08/M7 SW4-SD
H490 E90AX D32-5-M16-09 32.00 5 8.00 30.00 29.00 M16 25.0 40 0.16 SR 10508082-HG BLD T08/M7 SW4-SD
• For adaptation see page 44 • For user guide see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
(1) Number of inserts
(2) Clamping wrench size
(3) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: H490 ANKX 0904-FF (470) • H490 ANKX/ANCX-09 (469)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)

20 ISCAR
