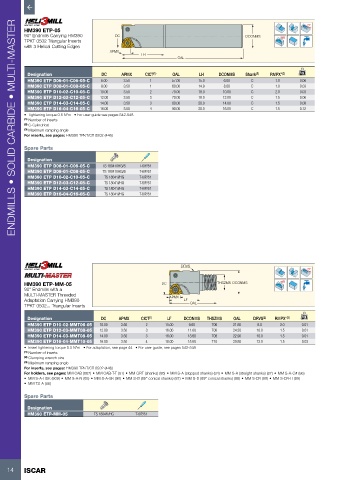

Page 16 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
HM390 ETP-05
90° Endmills Carrying HM390 DC DCONMS
TPKT 0502 Triangular Inserts
with 3 Helical Cutting Edges
APMX
LH
OAL

Designation DC APMX CICT (1) OAL LH DCONMS Shank (2) RMPX° (3) kg
HM390 ETP D06-01-C06-05-C 6.00 3.50 1 57.00 15.0 6.00 C 1.0 0.06
HM390 ETP D08-01-C08-05-C 8.00 3.50 1 60.00 14.9 8.00 C 1.0 0.03
HM390 ETP D10-02-C10-05-C 10.00 3.50 2 70.00 18.0 10.00 C 2.0 0.03
HM390 ETP D12-03-C12-05-C 12.00 3.50 3 70.00 18.0 12.00 C 1.5 0.06
HM390 ETP D14-03-C14-05-C 14.00 3.50 3 80.00 20.0 14.00 C 1.5 0.08
HM390 ETP D16-04-C16-05-C 16.00 3.50 4 90.00 20.0 16.00 C 1.5 0.12
• Tightening torque 0.5 N*m • For user guide see pages 542-548
(1) Number of inserts
(2) C-Cylindrical
(3) Maximum ramping angle
For inserts, see pages: HM390 TPKT/CT 0502 (446)

Spare Parts
Designation
HM390 ETP D06-01-C06-05-C TS 18041I/HG/S T-6IP/51
HM390 ETP D08-01-C08-05-C TS 18041I/HG/S T-6IP/51
HM390 ETP D10-02-C10-05-C TS 18041I/HG T-6IP/51
HM390 ETP D12-03-C12-05-C TS 18041I/HG T-6IP/51
HM390 ETP D14-03-C14-05-C TS 18041I/HG T-6IP/51
HM390 ETP D16-04-C16-05-C TS 18041I/HG T-6IP/51

DRVS Rd°

HM390 ETP-MM-05 DC THSZMS DCONMS
90° Endmills with a
MULTI-MASTER Threaded APMX
Adaptation Carrying HM390 LF OAL
TPKT 0502... Triangular Inserts

Designation DC APMX CICT (1) LF DCONMS THSZMS OAL DRVS (2) RMPX° (3) kg
HM390 ETP D10-02-MMT06-05 10.00 3.50 2 15.00 9.60 T06 21.60 8.0 2.0 0.01
HM390 ETP D12-03-MMT08-05 12.00 3.50 3 16.00 11.60 T08 24.20 10.0 1.5 0.01
HM390 ETP D14-03-MMT08-05 14.00 3.50 3 16.00 13.60 T08 22.90 10.0 1.5 0.01
HM390 ETP D16-04-MMT10-05 16.00 3.50 4 18.00 15.60 T10 29.80 13.0 1.5 0.03
• Insert tightening torque 0.5 N*m • For adaptation, see page 44 • For user guide, see pages 542-548
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle
For inserts, see pages: HM390 TPKT/CT 0502 (446)
For holders, see pages: MM CAB (667) • MM CAB-T-T (91) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86)
• MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89)
• MM TS-A (86)

Spare Parts

Designation
HM390 ETP-MM-05 TS 18041I/HG T-6IP/51
