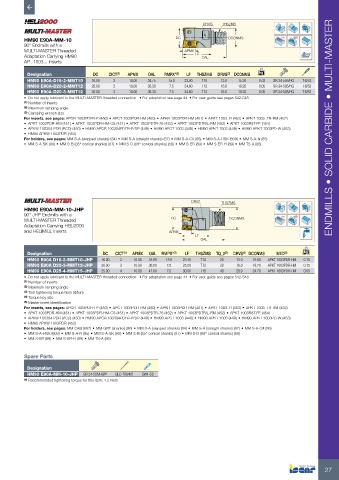

Page 29 - ISCAR(MILLINGCATALOG 38_2021)

DRVS THSZMS

HM90 E90A-MM-10 DC DCONMS Rd°
90° Endmills with a
MULTI-MASTER Threaded APMX
Adaptation Carrying HM90 LF OAL
AP.. 1003... Inserts

Designation DC CICT (1) APMX OAL RMPX° (2) LF THSZMS DRVS (3) DCONMS kg
HM90 E90A-D16-2-MMT10 16.00 2 10.00 34.75 15.0 23.00 T10 13.0 15.30 0.03 SR 34-505/HG T-8/53
HM90 E90A-D20-2-MMT12 20.00 2 10.00 38.30 7.5 24.60 T12 16.0 19.20 0.05 SR 34-505/HG T-8/53
HM90 E90A-D20-3-MMT12 20.00 3 10.00 38.30 7.5 24.60 T12 16.0 19.20 0.05 SR 34-505/HG T-8/53
• Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Maximum ramping angle
(3) Clamping wrench size
For inserts, see pages: APCR 1003PDFR-P (450) • APCT 1003PDR-HM (450) • APKR 1003PDR-HM (451) • APKT 1003..R (453) • APKT 1003..TR-RM (452)
• APKT 1003PDR-HM (451) • APKT 1003PDR-HM-CS (451) • APKT 1003PDTR-76 (452) • APKT 1003PDTR/L-RM (452) • APKT 1003R8T-FF (454)
• APKW 100304 PDR (PCD) (450) • HM90 APCR 100304PDFR-P/DP (449) • HM90 APCT 1003 (448) • HM90 APKT 1003 (449) • HM90 APKT 1003PD-W (453) ENDMILLS • SOLID CARBIDE • MULTI-MASTER
• HM90 APKW 1003PDR (453)
For holders, see pages: MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85)
• MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)

DRVS THSZMS
HM90 E90A-MM-10-JHP
90° JHP Endmills with a Rd°
MULTI-MASTER Threaded DC DCONMS
Adaptation Carrying HELI2000
and HELIMILL Inserts APMX
LF
OAL

Designation DC CICT (1) APMX OAL RMPX° (2) LF THSZMS TQ_3 (3) DRVS (4) DCONMS MIID (5) kg
HM90 E90A D16-2-MMT10-JHP 16.00 2 10.00 34.80 15.0 23.40 T10 28 13.0 15.60 APKT 1003PDR-HM 0.10
HM90 E90A D20-3-MMT12-JHP 20.00 3 10.00 38.50 7.5 25.50 T12 28 16.0 19.70 APKT 1003PDR-HM 0.15
HM90 E90A D25-4-MMT15-JHP 25.00 4 10.00 47.00 7.5 30.00 T15 40 20.0 24.70 APKT 1003PDR-HM 0.05
• Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation see page 44 • For user guide see pages 542-548
(1) Number of inserts
(2) Maximum ramping angle
(3) Tool tightening torque Nxm (lbfxin)
(4) Torque key size
(5) Master insert identification
For inserts, see pages: APCR 1003PDFR-P (450) • APCT 1003PDR-HM (450) • APKR 1003PDR-HM (451) • APKT 1003..R (453) • APKT 1003..TR-RM (452)
• APKT 1003PDR-HM (451) • APKT 1003PDR-HM-CS (451) • APKT 1003PDTR-76 (452) • APKT 1003PDTR/L-RM (452) • APKT 1003R8T-FF (454)
• APKW 100304 PDR (PCD) (450) • HM90 APCR 100304PDFR-P/DP (449) • HM90 APCT 1003 (448) • HM90 APKT 1003 (449) • HM90 APKT 1003PD-W (453)
• HM90 APKW 1003PDR (453)
For holders, see pages: MM CAB (667) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86)
• MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88)
• MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)

Spare Parts

Designation
HM90 E90A-MM-10-JHP SR 34-505/HG (a) BLD T08/M7 SW4-SD
(a) Recommended tightening torque for this item: 1.2 Nxm

27
