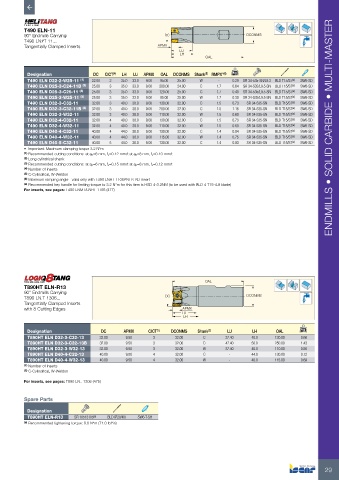

Page 31 - ISCAR(MILLINGCATALOG 38_2021)

T490 ELN-11
90° Endmills Carrying DC DCONMS
T490 LN#T 11...
Tangentially Clamped Inserts APMX
LU
LH
OAL

Designation DC CICT (4) LH LU APMX OAL DCONMS Shank (5) RMPX° (6) kg
T490 ELN D22-2-W25-11 (1) 22.00 2 35.0 33.0 9.00 95.00 25.00 W - 0.29 SR 34-535-SN/L9.3 BLD T15/S7 (a) SW6-SD
T490 ELN D25-3-C24-11B (2) 25.00 3 35.0 33.0 9.00 200.00 24.00 C 1.7 0.64 SR 34-535/L9.5-SN BLD T15/S7 (a) SW6-SD
T490 ELN D25-3-C25-11 (3) 25.00 3 35.0 33.0 9.00 120.00 25.00 C 1.7 0.40 SR 34-535/L9.5-SN BLD T15/S7 (a) SW6-SD
T490 ELN D25-3-W25-11 (3) 25.00 3 35.0 33.0 9.00 95.00 25.00 W 1.7 0.30 SR 34-535/L9.5-SN BLD T15/S7 (a) SW6-SD
T490 ELN D32-3-C32-11 32.00 3 40.0 38.0 9.00 130.00 32.00 C 1.5 0.73 SR 34-535-SN BLD T15/S7 (a) SW6-SD
T490 ELN D32-3-C32-11B (2) 32.00 3 40.0 38.0 9.00 200.00 32.00 C 1.5 1.16 SR 34-535-SN BLD T15/S7 (a) SW6-SD
T490 ELN D32-3-W32-11 32.00 3 40.0 38.0 9.00 110.00 32.00 W 1.5 0.60 SR 34-535-SN BLD T15/S7 (a) SW6-SD
T490 ELN D32-4-C32-11 32.00 4 40.0 38.0 9.00 130.00 32.00 C 1.5 0.73 SR 34-535-SN BLD T15/S7 (a) SW6-SD
T490 ELN D32-4-W32-11 32.00 4 40.0 38.0 9.00 110.00 32.00 W 1.5 0.60 SR 34-535-SN BLD T15/S7 (a) SW6-SD ENDMILLS • SOLID CARBIDE • MULTI-MASTER
T490 ELN D40-4-C32-11 40.00 4 44.0 38.0 9.00 130.00 32.00 C 1.4 0.84 SR 34-535-SN BLD T15/S7 (a) SW6-SD
T490 ELN D40-4-W32-11 40.00 4 44.0 38.0 9.00 115.00 32.00 W 1.4 0.75 SR 34-535-SN BLD T15/S7 (a) SW6-SD
T490 ELN D40-5-C32-11 40.00 5 44.0 38.0 9.00 130.00 32.00 C 1.4 0.83 SR 34-535-SN BLD T15/S7 (a) SW6-SD
• Important: Maximum clamping torque 3.2 N*m
(1) Recommended cutting conditions: at ap=6 mm, fz=0.12 mm/t at ap=8 mm, fz=0.10 mm/t
(2) Long cylindrical shank
(3) Recommended cutting conditions: at ap=6 mm, fz=0.15 mm/t at ap=8 mm, fz=0.12 mm/t
(4) Number of inserts
(5) C-Cylindrical, W-Weldon
(6) Maximum ramping angle - valid only with T490 LNHT 1106PNTR-RD insert
(a) Recommended key handle for limiting torque to 3.2 N*m for this item is HSD 4-3.2NM (to be used with BLD 4 T15-4.8 blade)
For inserts, see pages: T490 LNMT/LNHT 1106 (477)

OAL
T890HT ELN-R13
90° Endmills Carrying
T890 LN.T 1306... DC DCONMS
Tangentially Clamped Inserts
with 8 Cutting Edges APMX
LU
LH

Designation DC APMX CICT (1) DCONMS Shank (2) LU LH OAL kg
T890HT ELN D32-3-C32-13 32.00 9.50 3 32.00 C 37.40 40.0 130.00 0.68
T890HT ELN D32-3-C32-13B 32.00 9.50 3 32.00 C 47.40 50.0 250.00 1.43
T890HT ELN D32-3-W32-13 32.00 9.50 3 32.00 W 37.40 40.0 110.00 0.56
T890HT ELN D40-4-C32-13 40.00 9.50 4 32.00 C - 44.0 130.00 0.12
T890HT ELN D40-4-W32-13 40.00 9.50 4 32.00 W - 40.0 115.00 0.69
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
For inserts, see pages: T890 LN.. 1306 (475)

Spare Parts

Designation
T890HT ELN-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH
(a) Recommended tightening torque: 8.0 N*m (71.0 lbf*in)

29
