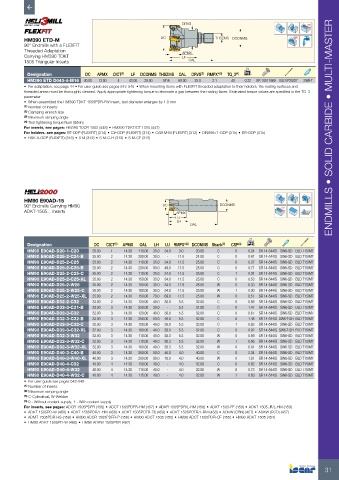

Page 33 - ISCAR(MILLINGCATALOG 38_2021)

DRVS Rd°

HM390 ETD-M DC THSZMS DCONMS
90° Endmills with a FLEXFIT
Threaded Adaptation APMX
Carrying HM390 TDKT LF

1505 Triangular Inserts OAL
Designation DC APMX CICT (1) LF DCONMS THSZMS OAL DRVS (2) RMPX° (3) TQ_3 (4) kg
HM390 ETD D040-4-M16 40.00 13.00 4 43.00 29.00 M16 68.00 25.0 2.1 40 0.22 SR 10511869 BLD IP20/S7 SW6-T
• For adaptation, see page 44 • For user guide see pages 542-548 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3
parameter
• When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by 1.0 mm
(1) Number of inserts
(2) Clamping wrench size
(3) Maximum ramping angle
(4) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: HM390 TDCR 1505 (448) • HM390 TDKT/CT 1505 (447) ENDMILLS • SOLID CARBIDE • MULTI-MASTER
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)

HM90 E90AD-15
90° Endmills Carrying HM90 DC DCONMS Rd°
ADKT-1505... Inserts APMX
LU
LH
OAL

Designation DC CICT (1) APMX OAL LH LU RMPX° (2) DCONMS Shank (3) CSP (4) kg
HM90 E90AD-D20-1-C20 20.00 1 14.30 110.00 35.0 34.0 3.0 20.00 C 0 0.24 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-C24-B 25.00 2 14.30 200.00 30.0 - 11.5 24.00 C 0 0.67 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-C25 25.00 2 14.30 110.00 35.0 34.0 11.5 25.00 C 0 0.37 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-C25-B 25.00 2 14.30 200.00 50.0 49.0 11.5 25.00 C 0 0.71 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-C25-C 25.00 2 14.30 110.00 35.0 34.0 11.5 25.00 C 1 0.34 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-C25-XL 25.00 2 14.30 150.00 35.0 34.0 11.5 25.00 C 0 0.53 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-W25 25.00 2 14.30 100.00 35.0 34.0 11.5 25.00 W 0 0.33 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-W25-C 25.00 2 14.30 100.00 35.0 34.0 11.5 25.00 W 1 0.30 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D25-2-W25-XL 25.00 2 14.30 150.00 70.0 69.0 11.5 25.00 W 0 0.51 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-2-C32 32.00 2 14.30 120.00 40.0 38.0 5.3 32.00 C 0 0.68 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-3-C31-B 32.00 3 14.30 250.00 30.0 - 5.3 31.00 C 0 1.41 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-3-C32 32.00 3 14.30 120.00 40.0 38.0 5.3 32.00 C 0 0.67 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-3-C32-B 32.00 3 14.30 250.00 50.0 48.0 5.3 32.00 C 0 1.48 SR 14-544/S SW6-T-SH BLD T15/M7
HM90 E90AD-D32-3-C32-C 32.00 3 14.30 120.00 40.0 38.0 5.3 32.00 C 1 0.63 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-3-C32-XL 32.00 3 14.30 160.00 40.0 38.0 5.3 32.00 C 0 0.92 SR 14-544/S SW6-T-SH BLD T15/M7
HM90 E90AD-D32-3-W32 32.00 3 14.30 110.00 40.0 38.3 5.3 32.00 W 0 0.59 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-3-W32-C 32.00 3 14.30 110.00 40.0 38.3 5.3 32.00 W 1 0.56 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D32-3-W32-XL 32.00 3 14.30 160.00 40.0 38.3 5.3 32.00 W 0 0.91 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D40-3-C40-B 40.00 3 14.30 250.00 50.0 48.0 4.0 40.00 C 0 2.34 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D40-3-W40-XL 40.00 3 14.30 200.00 80.0 78.0 4.0 40.00 W 0 1.81 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D40-4-C32 40.00 4 14.30 130.00 40.0 - 4.0 32.00 C 0 0.82 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D40-4-W32 40.00 4 14.30 115.00 40.0 - 4.0 32.00 W 0 0.73 SR 14-544/S SW6-SD BLD T15/M7
HM90 E90AD-D40-4-W32-C 40.00 4 14.30 115.00 40.0 - 4.0 32.00 W 1 0.69 SR 14-544/S SW6-SD BLD T15/M7
• For user guide see pages 542-548
(1) Number of inserts
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
(4) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: ADCR 1505PDFR (456) • ADCT 1505PDFR-HM (457) • ADKR 1505PDR/L-HM (456) • ADKT 1505-FF (459) • ADKT 1505..R/L-HM (459)
• ADKT 1505PD-W (460) • ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR-76 (459) • ADKT 1505PDTR/L-RM (458) • ADKW (CBN) (457) • ADKW (PCD) (457)
• ADMT 1505PDR-HS (458) • HM90 ADCR 1505PDFR-P (456) • HM90 ADCT 1505 (455) • HM90 ADCT 1505PDR-CF (455) • HM90 ADKT 1505 (454)
• HM90 ADKT 1505PD-W (460) • HM90 ADKW 1505PDR (462)

31
