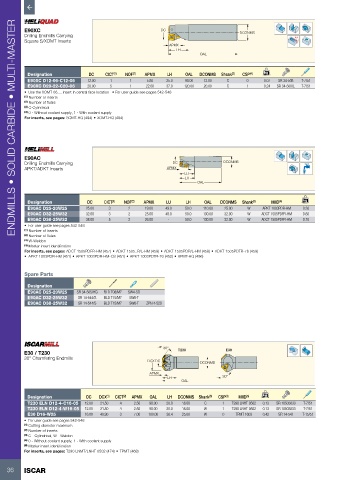

Page 38 - ISCAR(MILLINGCATALOG 38_2021)
P. 38

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
          E90XC                                           DC                         DCONMS
          Drilling Endmills Carrying                                                                     Rd°
          Square S/XOMT Inserts
                                                            APMX
                                                               LH
                                                                       OAL



           Designation          DC    CICT (1)  NOF (2)  APMX  LH  OAL  DCONMS  Shank (3)  CSP (4)  kg
           E90XC D12-06-C12-06  12.00   1      1     5.80  25.0   90.00  12.00   C      0     0.07  SR 34-508  T-7/51
           E90XC D20-22-C20-06  20.00   5      1    22.00  37.0   120.00  20.00  C      1     0.24  SR 34-508/L  T-7/51
          •  Use the XOMT 06.... insert in central face location   • For user guide see pages 542-548
          (1)  Number of inserts
          (2)  Number of flutes
          (3)  C-Cylindrical
          (4)  0 - Without coolant supply, 1 - With coolant supply
          For inserts, see pages: SOMT-HQ (494) • XOMT-HQ (494)






          E90AC
          Drilling Endmills Carrying                          DC                DCONMS
          APKT/ADKT Inserts                                 APMX
                                                                  LU
                                                                  LH
                                                                      OAL


           Designation          DC    CICT (1)  NOF (2)  APMX  LU  LH    OAL  DCONMS  Shank (3)  MIID (4)  kg
           E90AC D25-20W25     25.00   3      2     19.00  49.0   50.0  110.00  25.00   W    APKT 1003PDR-HM  0.30
           E90AC D32-25W32     32.00   3      2     25.00  48.0   50.0  130.00  32.00   W    ADCT 1505PDFR-HM  0.60
           E90AC D38-25W32     38.00   5      2     26.00   -     50.0  130.00  32.00   W    ADCT 1505PDFR-HM  0.70
          •  For user guide see pages 542-548
          (1)  Number of inserts
          (2)  Number of flutes
          (3)  W-Weldon
          (4)  Master insert identification
          For inserts, see pages: ADCT 1505PDFR-HM (457) • ADKT 1505..R/L-HM (459) • ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR-76 (459)
          •  APKT 1003PDR-HM (451) • APKT 1003PDR-HM-CS (451) • APKT 1003PDTR-76 (452) • XPMT-HQ (496)

          Spare Parts

           Designation
           E90AC D25-20W25  SR 34-505/HG  BLD T08/M7  SW4-SD
           E90AC D32-25W32  SR 14-544/S  BLD T15/M7  SW6-T
           E90AC D38-25W32  SR 14-544/S  BLD T15/M7  SW6-T  ZPN 4-520






                                                          30°

          E30 / T230                                            T230            E30
          30° Chamfering Endmills
                                                     DCX  DC           DCONMS
                                                      APMX
                                                            LH                 30°
                                                                 OAL

           Designation         DC   DCX (1)  CICT (2)  APMX  OAL  LH  DCONMS  Shank (3)  CSP (4)  MIID (5)  kg
           T230 ELN D12-4-C16-05  12.00  21.50  4  2.50  90.00  20.0  16.00  C  1  T290 LNHT 0502  0.13  SR 10503833  T-7/51
           T230 ELN D12-4-W16-05  12.00  21.50  4  2.50  90.00  20.0  16.00  W  1  T290 LNHT 0502  0.13  SR 10503833  T-7/51
           E30 D16-W25         16.00  40.90  3  7.00  100.00  36.4  25.00  W   0    TPMT 1603  0.42  SR 14-541  T-15/51
          •  For user guide see pages 542-548
          (1)  Cutting diameter maximum
          (2)  Number of inserts
          (3)  C - Cylindrical, W - Weldon
          (4)  0 - Without coolant supply, 1 - With coolant supply
          (5)  Master insert identification
          For inserts, see pages: T290 LNMT/LNHT 0502 (474) • TPMT (468)

   36     ISCAR
