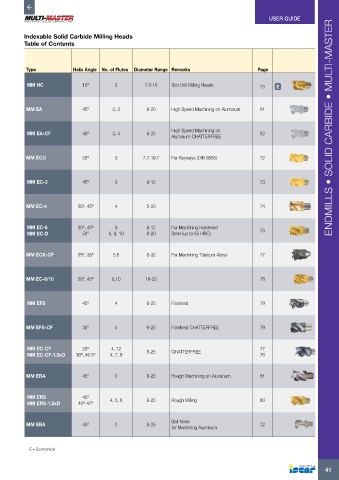

USER GUIDE
Indexable Solid Carbide Milling Heads
Table of Contents
Type Helix Angle No. of Flutes Diameter Range Remarks Page
MM HC 10º 2 7.8-16 Slot Drill Milling Heads 73 E
MM EA 45º 2, 3 8-20 High Speed Machining on Aluminum 81
MM EA-CF 40º 3, 4 8-25 High Speed Machining on 82 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
Aluminum-CHATTERFREE
MM ECU 38º 3 7.7-19.7 For Keyways (DIN 6885) 72
MM EC-3 45º 3 8-12 73
MM EC-4 30º, 45º 4 5-20 74
MM EC-6 30º, 45º 6 8-12 For Machining Hardened
MM EC-D 50° 6, 8, 10 8-20 Steel (up to 65 HRC). 75
MM ECK-CF 35º, 38º 5,6 8-32 For Machining Titanium Alloys 77
MM EC-8/10 30º, 45º 8,10 16-25 76
MM EFS 45º 4 8-25 Finishred 79
MM EFS-CF 38° 4 6-25 Finishred CHATTERFREE 79
MM EC-CF 38º 4, 12 8-25 CHATTERFREE 77
MM EC-CF-1.5xD 36º, 46.5º 4, 7, 9 76
MM ERA 45° 3 8-25 Rough Machining on Aluminum 81
MM ERS 45º
MM ERS-1.5xD 40º-47º 4, 5, 6 8-25 Rough Milling 80
MM EBA 45º 2 8-25 Ball Nose 72
for Machining Aluminum
E = Economical
