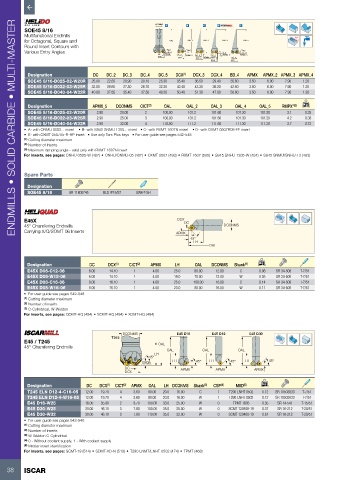

P. 40
DCONMS A B C D E
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
SOE45 8/16
Multifunctional Endmills Rd°
for Octagonal, Square and OAL OAL_2 OAL_3 OAL_4 OAL_5
Round Insert Contours with
Various Entry Angles 45º 45º 45º
DC APMX DC_2 APMX_2 DC_3 DC_4 15º APMX_4 APMX_5
DCX
DCX DCX_3 APMX_3 DCX_4 DC_5
BD_4 DCX
Designation DC DC_2 DC_3 DC_4 DC_5 DCX (1) DCX_3 DCX_4 BD_4 APMX APMX_2 APMX_3 APMX_4
SOE45 8/16-D025-02-W20R 25.00 22.65 20.90 20.10 25.30 35.40 36.50 29.40 35.60 3.50 6.00 7.90 1.20
SOE45 8/16-D032-03-W25R 32.00 29.65 27.50 26.70 32.30 42.40 43.30 36.20 42.60 3.50 6.00 7.90 1.20
SOE45 8/16-D040-04-W32R 40.00 37.65 35.40 37.50 40.30 50.40 51.30 47.00 50.60 3.50 6.00 7.90 1.20
Designation APMX_5 DCONMS CICT (2) OAL OAL_2 OAL_3 OAL_4 OAL_5 RMPX° (3) kg
SOE45 8/16-D025-02-W20R 2.90 20.00 2 100.00 101.2 101.60 101.30 101.20 3.1 0.25
SOE45 8/16-D032-03-W25R 2.90 25.00 3 100.00 101.2 101.60 101.30 101.20 4.2 0.38
SOE45 8/16-D040-04-W32R 2.90 32.00 4 110.00 111.2 111.60 111.30 111.20 3.7 0.72
• A- with ONMU 0505... insert • B- with S845 SNMU 1305... insert • C- with RXMT 1607N insert • D- with OXMT 0507R08-FF insert
• E- with OXMT 050705-R-HP insert • Use only Torx Plus keys • For user guide see pages 542-548
(1) Cutting diameter maximum
(2) Number of inserts
(3) Maximum ramping angle - valid only with RXMT 1607N insert
For inserts, see pages: ONHU 0505-W (487) • ONHU/ONMU-05 (487) • OXMT 0507 (488) • RXMT 1607 (505) • S845 SNHU 1305-W (484) • S845 SNMU/SNHU-13 (483)
Spare Parts
Designation
SOE45 8/16 SR 11800745 BLD IP15/S7 SW6-T-SH
E45X DCX DC
45° Chamfering Endmills DCONMS
Carrying X/Q/SOMT 06 Inserts APMX
45°
LH
OAL
Designation DC DCX (1) CICT (2) APMX LH OAL DCONMS Shank (3) kg
E45X D06-C12-06 6.00 14.10 1 4.00 25.0 80.00 12.00 C 0.06 SR 34-508 T-7/51
E45X D06-W12-06 6.00 14.10 1 4.00 19.0 70.00 12.00 W 0.05 SR 34-508 T-7/51
E45X D08-C16-06 8.00 16.10 1 4.00 25.0 100.00 16.00 C 0.14 SR 34-508 T-7/51
E45X D08-W16-06 8.00 16.10 1 4.00 23.0 80.00 16.00 W 0.11 SR 34-508 T-7/51
• For user guide see pages 542-548
(1) Cutting diameter maximum
(2) Number of inserts
(3) C-Cylindrical, W-Weldon
For inserts, see pages: QOMT-HQ (494) • SOMT-HQ (494) • XOMT-HQ (494)
DCONMS E45 D16 E45 D12 E45 D30
E45 / T245 T245 OAL
45° Chamfering Endmills
OAL OAL OAL
LH
45°
LH 45° LH 45° LH 45°
APMX
DC APMX APMX APMX
DCX
Designation DC DCX (1) CICT (2) APMX OAL LH DCONMS Shank (3) CSP (4) MIID (5) kg
T245 ELN D12-4-C16-05 12.00 19.70 4 3.60 90.00 20.0 16.00 C 1 T290 LNHT 0502 0.12 SR 10503833 T-7/51
T245 ELN D12-4-W16-05 12.00 19.70 4 3.60 90.00 20.0 16.00 W 1 T290 LNHT 0502 0.12 SR 10503833 T-7/51
E45 D16-W25 16.00 35.90 2 9.70 100.00 33.0 25.00 W 0 TPMT 1603 0.35 SR 14-541 T-15/51
E45 D30-W25 30.00 46.10 3 7.80 100.00 35.0 25.00 W 0 SCMT 120408-19 0.37 SR 16-212 T-20/51
E45 D30-W32 30.00 46.10 3 7.80 110.00 35.0 32.00 W 0 SCMT 120408-19 0.61 SR 16-212 T-20/51
• For user guide see pages 542-548
(1) Cutting diameter maximum
(2) Number of inserts
(3) W-Weldon C-Cylindrical
(4) 0 - Without coolant supply, 1 - With coolant supply
(5) Master insert identification
For inserts, see pages: SCMT-19 (514) • SDMT-AD-N (513) • T290 LNMT/LNHT 0502 (474) • TPMT (468)
38 ISCAR
