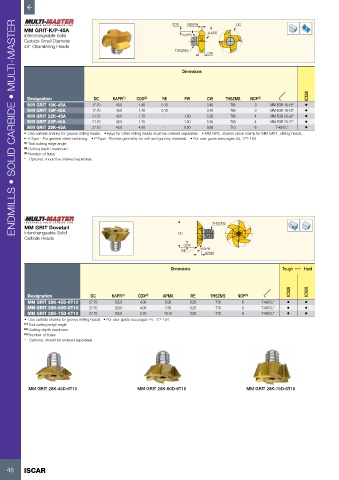

Page 50 - ISCAR(MILLINGCATALOG 38_2021)

CDX RE/FW DC
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM GRIT-K/P-45A
Interchangeable Solid KAPR KAPR
Carbide Small Diameter
45° Chamfering Heads
THSZMS
CW

Dimensions

IC528
Designation DC KAPR (1) CDX (2) RE FW CW THSZMS NOF (3)
MM GRIT 18K-45A 17.70 45.0 1.40 0.10 - 3.40 T06 3 MM EGR 16-18* •
MM GRIT 18P-45A 17.70 45.0 1.40 0.10 - 3.40 T06 3 MM EGR 16-18* •
MM GRIT 22K-45A 21.70 45.0 1.70 - 1.50 5.50 T08 4 MM EGR 20-22* •
MM GRIT 22P-45A 21.70 45.0 1.70 - 1.50 5.50 T08 4 MM EGR 20-22* •
MM GRIT 28K-45A 27.70 45.0 4.00 - 0.50 9.80 T10 6 T-40/3 L* •
• Use carbide shanks for groove milling heads. • Keys for other milling heads must be ordered separately. • MM GRT.. shanks serve mainly for MM GRIT.. slitting heads.
• K-Type - For general steel machining. • P-Type - Positive geometry for soft and gummy materials. • For user guide see pages 44, 177-184
(1) Tool cutting edge angle
(2) Cutting depth maximum
(3) Number of flutes
* Optional, should be ordered separately

MM GRIT Dovetail THSZMS
Interchangeable Solid DC
Carbide Heads
CDX
RE KAPR
APMX

Dimensions Tough 1 Hard

IC528 IC908
Designation DC KAPR (1) CDX (2) APMX RE THSZMS NOF (3)
MM GRIT 28K-45D-6T10 27.70 135.0 4.00 5.00 0.20 T10 6 T-40/3 L* • •
MM GRIT 28K-60D-6T10 27.70 120.0 4.00 7.80 0.20 T10 6 T-40/3 L* • •
MM GRIT 28K-75D-6T10 27.70 105.0 2.20 10.10 0.20 T10 6 T-40/3 L* • •
• Use carbide shanks for groove milling heads • For user guide see pages 44, 177-184
(1) Tool cutting edge angle
(2) Cutting depth maximum
(3) Number of flutes
* Optional, should be ordered separately

MM GRIT 28K-45D-6T10 MM GRIT 28K-60D-6T10 MM GRIT 28K-75D-6T10
