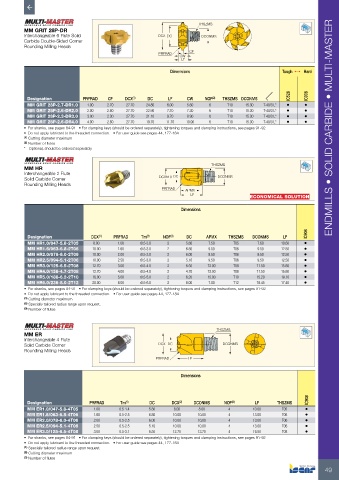

Page 51 - ISCAR(MILLINGCATALOG 38_2021)

THSZMS
MM GRIT 28P-DR
Interchangeable 6 Flute Solid DCX DC DCONMS
Carbide Double-Sided Corner
Rounding Milling Heads
CF
PRFRAD
CW
LF
Dimensions Tough 1 Hard

IC528 IC908
Designation PRFRAD CF DCX (1) DC LF CW NOF (2) THSZMS DCONMS
MM GRIT 28P-2.7-DR1.0 1.00 2.70 27.70 24.80 6.00 5.60 6 T10 15.30 T-40/3 L* • •
MM GRIT 28P-2.6-DR2.0 2.00 2.60 27.70 22.90 7.70 7.30 6 T10 15.30 T-40/3 L* • •
MM GRIT 28P-2.3-DR3.0 3.00 2.30 27.70 21.10 9.70 8.90 6 T10 15.30 T-40/3 L* • •
MM GRIT 28P-2.6-DR4.0 4.00 2.60 27.70 19.70 11.70 10.90 6 T10 15.30 T-40/3 L* • •
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Number of flutes
* Optional, should be ordered separately

MM HR THSZMS
Interchangeable 2 Flute DC
Solid Carbide Corner DCXh10 DCONMS
Rounding Milling Heads
PRFRAD APMX
LF
ECONOMICAL SOLUTION
Dimensions

IC908
Designation DCX (1) PRFRAD Tm (2) NOF (3) DC APMX THSZMS DCONMS LF
MM HR1.0/047-5.8-2T05 8.00 1.00 r0.5-3.0 2 5.80 7.50 T05 7.60 10.60 •
MM HR1.6/063-6.8-2T06 10.00 1.60 r0.5-3.0 2 6.80 9.50 T06 9.50 12.50 •
MM HR2.0/078-6.0-2T06 10.00 2.00 r0.5-3.0 2 6.00 9.50 T06 9.50 12.50 •
MM HR2.5/094-5.1-2T06 10.00 2.50 r0.5-3.0 2 5.10 9.50 T06 9.50 12.50 •
MM HR3.0/125-6.5-2T08 12.70 3.00 r0.5-4.0 2 6.50 12.00 T08 11.50 15.60 •
MM HR4.0/156-4.7-2T08 12.70 4.00 r0.5-4.0 2 4.70 12.00 T08 11.50 15.60 •
MM HR5.0/188-6.2-2T10 16.00 5.00 r0.5-5.0 2 6.20 15.00 T10 15.20 19.10 •
MM HR6.0/236-8.0-2T12 20.00 6.00 r0.5-6.0 2 8.00 7.00 T12 18.45 17.40 •
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Specially tailored radius range upon request.
(3) Number of flutes

THSZMS
MM ER
Interchangeable 4 Flute
Solid Carbide Corner DCX DC DCONMS
Rounding Milling Heads
PRFRAD LF

Dimensions

IC908
Designation PRFRAD Tm (1) DC DCX (2) DCONMS NOF (3) LF THSZMS
MM ER1.0/047-5.8-4T05 1.00 0.5-1.4 5.80 8.00 8.00 4 10.00 T05 •
MM ER1.6/063-6.8-4T06 1.60 0.5-2.5 6.80 10.00 10.00 4 13.00 T06 •
MM ER2.0/078-6.0-4T06 2.00 0.5-2.5 6.00 10.00 10.00 4 13.00 T06 •
MM ER2.5/094-5.1-4T06 2.50 0.5-2.5 5.10 10.00 10.00 4 13.00 T06 •
MM ER3.0/125-6.5-4T08 3.00 0.5-3.1 6.50 12.70 12.70 4 16.50 T08 •
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Specially tailored radius range upon request.
(2) Cutting diameter maximum
(3) Number of flutes
49
