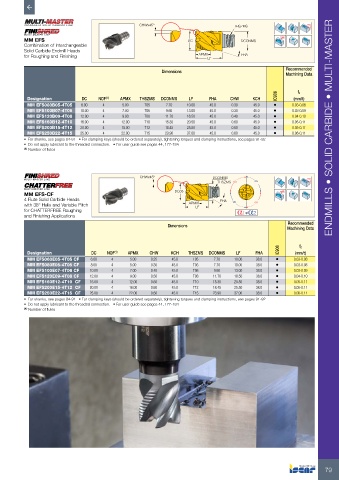

Page 81 - ISCAR(MILLINGCATALOG 38_2021)

CHWx45° Rd°
THSZMS
MM EFS DC DCONMS
Combination of Interchangeable
Solid Carbide Endmill Heads
for Roughing and Finishing APMX LF FHA

Dimensions Recommended
Machining Data

IC908 fz
Designation DC NOF (1) APMX THSZMS DCONMS LF FHA CHW KCH (mm/t)
MM EFS080B05-4T05 8.00 4 5.00 T05 7.70 10.00 45.0 0.30 45.0 • 0.03-0.08
MM EFS100B07-4T06 10.00 4 7.00 T06 9.60 13.00 45.0 0.30 45.0 • 0.03-0.09
MM EFS120B09-4T08 12.00 4 9.00 T08 11.70 16.50 45.0 0.40 45.0 • 0.04-0.10
MM EFS160B12-4T10 16.00 4 12.00 T10 15.30 20.50 45.0 0.60 45.0 • 0.05-0.11
MM EFS200B15-4T12 20.00 4 15.00 T12 18.45 25.50 45.0 0.60 45.0 • 0.05-0.11 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM EFS250B22-4T15 25.00 4 22.00 T15 23.90 37.00 45.0 0.60 45.0 • 0.06-0.11
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes

CHWx45° DCONMS Rd°
THSZMS α1 α2

MM EFS-CF DCe9
4 Flute Solid Carbide Heads FHA α2
with 38° Helix and Variable Pitch APMX α1
LF
for CHATTERFREE Roughing
and Finishing Applications
Recommended
Dimensions Machining Data

IC908 fz
Designation DC NOF (1) APMX CHW KCH THSZMS DCONMS LF FHA (mm/t)
MM EFS060E05-4T05 CF 6.00 4 5.00 0.25 45.0 T05 7.70 10.00 38.0 • 0.03-0.08
MM EFS080E05-4T05 CF 8.00 4 5.00 0.30 45.0 T05 7.70 10.00 38.0 • 0.03-0.08
MM EFS100E07-4T06 CF 10.00 4 7.00 0.40 45.0 T06 9.60 13.00 38.0 • 0.03-0.09
MM EFS120E09-4T08 CF 12.00 4 9.00 0.50 45.0 T08 11.70 16.50 38.0 • 0.04-0.10
MM EFS160E12-4T10 CF 16.00 4 12.00 0.60 45.0 T10 15.30 20.50 38.0 • 0.05-0.11
MM EFS200E15-4T12 CF 20.00 4 16.00 0.60 45.0 T12 18.45 25.50 38.0 • 0.05-0.11
MM EFS250E22-4T15 CF 25.00 4 22.00 0.60 45.0 T15 23.90 37.00 38.0 • 0.06-0.11
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes

79
