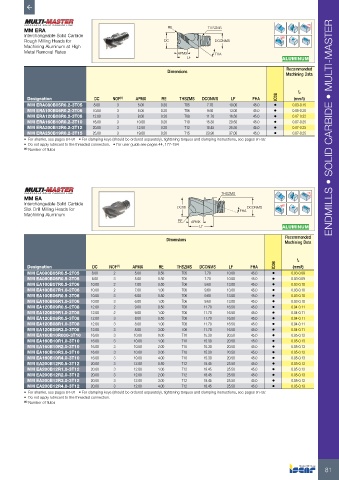

Page 83 - ISCAR(MILLINGCATALOG 38_2021)

RE THSZMS Rd°
MM ERA
Interchangeable Solid Carbide
Rough Milling Heads for DC DCONMS
Machining Aluminum at High
Metal Removal Rates APMX FHA
LF ALUMINUM

Dimensions Recommended
Machining Data

fz
Designation DC NOF (1) APMX RE THSZMS DCONMS LF FHA IC08 (mm/t)
MM ERA080B05R0.2-3T05 8.00 3 5.00 0.20 T05 7.70 10.00 45.0 • 0.03-0.15
MM ERA100B06R0.2-3T06 10.00 3 6.00 0.20 T06 9.60 13.00 45.0 • 0.05-0.20
MM ERA120B08R0.2-3T08 12.00 3 8.00 0.20 T08 11.70 16.50 45.0 • 0.07-0.22
MM ERA160B10R0.2-3T10 16.00 3 10.00 0.20 T10 15.30 20.50 45.0 • 0.07-0.25
MM ERA200B12R0.2-3T12 20.00 3 12.00 0.20 T12 18.45 25.50 45.0 • 0.07-0.25 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM ERA250B19R0.2-3T15 25.00 3 19.00 0.20 T15 23.90 37.00 45.0 • 0.07-0.25
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes

THSZMS Rd°

MM EA
Interchangeable Solid Carbide
Slot Drill Milling Heads for DCh6 FHA DCONMS
Machining Aluminum
RE APMX
LF ALUMINUM
Recommended
Dimensions
Machining Data

fz
Designation DC NOF (1) APMX RE THSZMS DCONMS LF FHA IC08 (mm/t)
MM EA080B05R0.5-2T05 8.00 2 5.00 0.50 T05 7.70 10.00 45.0 • 0.03-0.09
MM EA080B05R0.5-3T05 8.00 3 5.00 0.50 T05 7.70 10.00 45.0 • 0.03-0.09
MM EA100B07R0.5-2T06 10.00 2 7.00 0.50 T06 9.60 13.00 45.0 • 0.03-0.10
MM EA100B07R1.0-2T06 10.00 2 7.00 1.00 T06 9.60 13.00 45.0 • 0.03-0.10
MM EA100B06R0.5-3T06 10.00 3 6.00 0.50 T06 9.60 13.00 45.0 • 0.03-0.10
MM EA100B06R1.0-3T06 10.00 3 6.00 1.00 T06 9.60 13.00 45.0 • 0.03-0.10
MM EA120B09R0.5-2T08 12.00 2 9.00 0.50 T08 11.70 16.50 45.0 • 0.04-0.11
MM EA120B09R1.0-2T08 12.00 2 9.00 1.00 T08 11.70 16.50 45.0 • 0.04-0.11
MM EA120B08R0.5-3T08 12.00 3 8.00 0.50 T08 11.70 16.50 45.0 • 0.04-0.11
MM EA120B08R1.0-3T08 12.00 3 8.00 1.00 T08 11.70 16.50 45.0 • 0.04-0.11
MM EA120B08R3.0-3T08 12.00 3 8.00 3.00 T08 11.70 16.50 45.0 • 0.04-0.11
MM EA160B10R000-3T10 16.00 3 10.00 0.00 T10 15.30 20.50 45.0 • 0.05-0.13
MM EA160B10R1.0-3T10 16.00 3 10.00 1.00 T10 15.30 20.50 45.0 • 0.05-0.13
MM EA160B10R2.0-3T10 16.00 3 10.00 2.00 T10 15.30 20.50 45.0 • 0.05-0.13
MM EA160B10R3.0-3T10 16.00 3 10.00 3.00 T10 15.30 20.50 45.0 • 0.05-0.13
MM EA160B10R4.0-3T10 16.00 3 10.00 4.00 T10 15.30 20.50 45.0 • 0.05-0.13
MM EA200B12R0.5-3T12 20.00 3 12.00 0.50 T12 18.45 25.50 45.0 • 0.05-0.13
MM EA200B12R1.0-3T12 20.00 3 12.00 1.00 T12 18.45 25.50 45.0 • 0.05-0.13
MM EA200B12R2.0-3T12 20.00 3 12.00 2.00 T12 18.45 25.50 45.0 • 0.05-0.13
MM EA200B12R3.0-3T12 20.00 3 12.00 3.00 T12 18.45 25.50 45.0 • 0.05-0.13
MM EA200B12R4.0-3T12 20.00 3 12.00 4.00 T12 18.45 25.50 45.0 • 0.05-0.13
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection.
(1) Number of flutes
