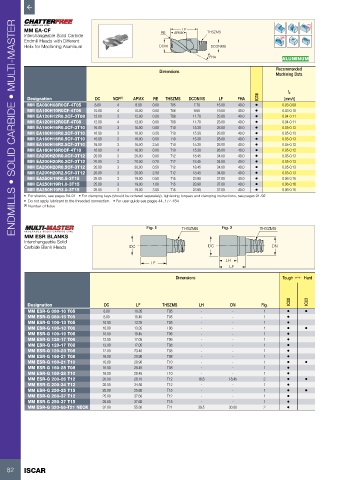

Page 84 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM EA-CF RE LF THSZMS
Interchangeable Solid Carbide APMX
Endmill Heads with Different
Helix for Machining Aluminum DCh6 DCONMS
FHA ALUMINUM

Dimensions Recommended
Machining Data

fz
Designation DC NOF (1) APMX RE THSZMS DCONMS LF FHA IC08 (mm/t)
MM EA080H08R0CF-4T05 8.00 4 8.00 0.00 T05 7.70 15.00 40.0 • 0.03-0.09
MM EA100H10R0CF-4T06 10.00 4 10.00 0.00 T06 9.60 19.00 40.0 • 0.03-0.10
MM EA120H12R0.2CF-3T08 12.00 3 12.00 0.20 T08 11.70 23.00 40.0 • 0.04-0.11
MM EA120H12R0CF-4T08 12.00 4 12.00 0.00 T08 11.70 23.00 40.0 • 0.04-0.11
MM EA160H16R0.0CF-3T10 16.00 3 16.00 0.00 T10 15.30 28.00 40.0 • 0.05-0.13
MM EA160H16R0.2CF-3T10 16.00 3 16.00 0.20 T10 15.30 28.00 40.0 • 0.05-0.13
MM EA160H16R0.5CF-3T10 16.00 3 16.00 0.50 T10 15.30 28.00 40.0 • 0.05-0.13
MM EA160H16R2.5CF-3T10 16.00 3 16.00 2.50 T10 15.30 28.00 40.0 • 0.05-0.13
MM EA160H16R0CF-4T10 16.00 4 16.00 0.00 T10 15.30 26.00 40.0 • 0.05-0.12
MM EA200H20R0.0CF-3T12 20.00 3 20.00 0.00 T12 18.45 34.00 40.0 • 0.05-0.13
MM EA200H20R0.2CF-3T12 20.00 3 20.00 0.20 T12 18.45 34.00 40.0 • 0.05-0.13
MM EA200H20R0.5CF-3T12 20.00 3 20.00 0.50 T12 18.45 34.00 40.0 • 0.05-0.13
MM EA200H20R2.5CF-3T12 20.00 3 20.00 2.50 T12 18.45 34.00 40.0 • 0.05-0.13
MM EA250H19R0.5-3T15 25.00 3 19.00 0.50 T15 23.90 37.00 40.0 • 0.06-0.16
MM EA250H19R1.0-3T15 25.00 3 19.00 1.00 T15 23.90 37.00 40.0 • 0.06-0.16
MM EA250H19R3.0-3T15 25.00 3 19.00 3.00 T15 23.90 37.00 40.0 • 0.06-0.16
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes

Fig. 1 THSZMS Fig. 2 THSZMS
MM ESR BLANKS
Interchangeable Solid
Carbide Blank Heads DC DC DN
LH
LF
LF
Dimensions Tough 1 Hard

IC08 IC03
Designation DC LF THSZMS LH DN Fig.
MM ESR-G 080-10 T05 8.00 10.35 T05 - - 1 • •
MM ESR-G 080-15 T05 8.00 15.40 T05 - - 1 •
MM ESR-G 100-13 T05 10.00 13.35 T05 - - 1 •
MM ESR-G 100-13 T06 10.00 13.35 T06 - - 1 • •
MM ESR-G 100-19 T06 10.00 19.45 T06 - - 1 •
MM ESR-G 120-17 T06 12.00 17.05 T06 - - 1 •
MM ESR-G 120-17 T08 12.00 17.05 T08 - - 1 •
MM ESR-G 120-23 T08 12.00 23.40 T08 - - 1 •
MM ESR-G 160-21 T08 16.00 20.90 T08 - - 1 •
MM ESR-G 160-21 T10 16.00 20.90 T10 - - 1 • •
MM ESR-G 160-28 T08 16.00 28.45 T08 - - 1 •
MM ESR-G 160-28 T10 16.00 28.45 T10 - - 1 •
MM ESR-G 200-26 T12 20.00 28.10 T12 16.6 18.45 2 • •
MM ESR-G 200-34 T12 20.00 34.50 T12 - - 1 •
MM ESR-G 250-25 T15 25.00 25.60 T15 - - 1 • •
MM ESR-G 250-37 T12 25.00 37.60 T12 - - 1 •
MM ESR-G 250-37 T15 25.00 37.60 T15 - - 1 •
MM ESR-G 320-55-T21 NECK 32.00 55.80 T21 39.5 30.00 2 •

82 ISCAR
