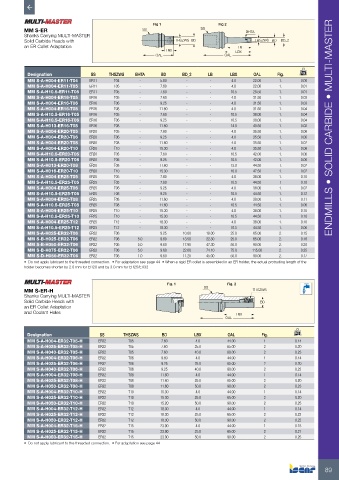

Fig 1 Fig 2
MM S-ER SS SS BHTA
Shanks Carrying MULTI-MASTER
Solid Carbide Heads with THSZWS BD THSZWS BD BD_2
an ER Collet Adaptation LB
LBX LBX
OAL OAL
Designation SS THSZWS BHTA BD BD_2 LB LBX OAL Fig. kg
MM S-A-H004-ER11-T04 ER11 T04 - 5.80 - - 4.0 22.00 1. 0.00
MM S-A-H004-ER11-T05 ER11 T05 - 7.60 - - 4.0 22.00 1. 0.01
MM S-A-H10.5-ER11-T05 ER11 T05 - 7.60 - - 10.5 28.50 1. 0.01
MM S-A-H004-ER16-T05 ER16 T05 - 7.60 - - 4.0 31.50 1. 0.03
MM S-A-H004-ER16-T06 ER16 T06 - 9.25 - - 4.0 31.50 1. 0.03
MM S-A-H004-ER16-T08 ER16 T08 - 11.60 - - 4.0 31.50 1. 0.04
MM S-A-H10.5-ER16-T05 ER16 T05 - 7.60 - - 10.5 38.00 1. 0.04
MM S-A-H10.5-ER16-T06 ER16 T06 - 9.25 - - 10.5 38.00 1. 0.04
MM S-A-H013-ER16-T08 ER16 T08 - 11.60 - - 14.0 40.50 1. 0.02 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM S-A-H004-ER20-T05 ER20 T05 - 7.60 - - 4.0 35.50 1. 0.06
MM S-A-H004-ER20-T06 ER20 T06 - 9.25 - - 4.0 35.50 1. 0.06
MM S-A-H004-ER20-T08 ER20 T08 - 11.60 - - 4.0 35.50 1. 0.07
MM S-A-H004-ER20-T10 ER20 T10 - 15.30 - - 4.0 35.50 1. 0.06
MM S-A-H10.5-ER20-T05 ER20 T05 - 7.60 - - 10.5 42.00 1. 0.06
MM S-A-H10.5-ER20-T06 ER20 T06 - 9.25 - - 10.5 42.00 1. 0.06
MM S-A-H013-ER20-T08 ER20 T08 - 11.60 - - 13.0 44.50 1. 0.07
MM S-A-H016-ER20-T10 ER20 T10 - 15.30 - - 16.0 47.50 1. 0.07
MM S-A-H004-ER25-T05 ER25 T05 - 7.60 - - 4.0 38.00 1. 0.10
MM S-A-H10.5-ER25-T05 ER25 T05 - 7.60 - - 10.5 44.50 1 0.10
MM S-A-H004-ER25-T06 ER25 T06 - 9.25 - - 4.0 38.00 1. 0.07
MM S-A-H10.5-ER25-T06 ER25 T06 - 9.25 - - 10.5 44.50 1. 0.12
MM S-A-H004-ER25-T08 ER25 T08 - 11.60 - - 4.0 38.00 1. 0.11
MM S-A-H10.5-ER25-T08 ER25 T08 - 11.60 - - 10.5 44.50 1. 0.06
MM S-A-H004-ER25-T10 ER25 T10 - 15.30 - - 4.0 38.00 1. 0.10
MM S-A-H10.5-ER25-T10 ER25 T10 - 15.30 - - 10.5 44.50 1. 0.10
MM S-A-H004-ER25-T12 ER25 T12 - 18.30 - - 4.0 38.00 1. 0.10
MM S-A-H10.5-ER25-T12 ER25 T12 - 18.30 - - 10.5 44.50 1. 0.06
MM S-A-H025-ER32-T06 ER32 T06 - 9.25 10.00 18.00 25.0 65.00 2. 0.15
MM S-B-H025-ER32-T06 ER32 T06 5.0 9.60 13.50 22.30 25.0 65.00 2. 0.16
MM S-B-H050-ER32-T06 ER32 T06 5.0 9.60 17.90 47.30 50.0 90.00 2. 0.20
MM S-B-H075-ER32-T06 ER32 T06 5.0 9.60 22.60 74.10 75.0 115.00 2. 0.25
MM S-D-H050-ER32-T06 ER32 T06 1.0 9.60 11.20 45.00 50.0 90.00 2. 0.17
• Do not apply lubricant to the threaded connection. • For adaptation see page 44 • When a rigid ER collet is assembled in an ER holder, the actual protruding length of the
holder becomes shorter by 2.0 mm for ER20 and by 3.0 mm for ER25/ER32
Fig. 1 Fig. 2
MM S-ER-H SS THSZWS
Shanks Carrying MULTI-MASTER
Solid Carbide Heads with BD
an ER Collet Adaptation
and Coolant Holes LBX
OAL
Designation SS THSZWS BD LBX OAL Fig. kg
MM S-A-H004-ER32-T05-H ER32 T05 7.60 4.0 44.00 1 0.14
MM S-A-H025-ER32-T05-H ER32 T05 7.60 25.0 65.00 2 0.20
MM S-A-H040-ER32-T05-H ER32 T05 7.60 40.0 80.00 2 0.23
MM S-A-H004-ER32-T06-H ER32 T06 9.60 4.0 44.00 1 0.14
MM S-A-H025-ER32-T06-H ER32 T06 9.25 25.0 65.00 2 0.20
MM S-A-H040-ER32-T06-H ER32 T06 9.25 40.0 80.00 2 0.22
MM S-A-H004-ER32-T08-H ER32 T08 11.60 4.0 44.00 1 0.14
MM S-A-H025-ER32-T08-H ER32 T08 11.60 25.0 65.00 2 0.20
MM S-A-H050-ER32-T08-H ER32 T08 11.60 50.0 90.00 2 0.23
MM S-A-H004-ER32-T10-H ER32 T10 15.30 4.0 44.00 1 0.14
MM S-A-H025-ER32-T10-H ER32 T10 15.30 25.0 65.00 2 0.20
MM S-A-H050-ER32-T10-H ER32 T10 15.20 50.0 90.00 2 0.25
MM S-A-H004-ER32-T12-H ER32 T12 18.30 4.0 44.00 1 0.14
MM S-A-H025-ER32-T12-H ER32 T12 18.30 25.0 65.00 2 0.22
MM S-A-H050-ER32-T12-H ER32 T12 18.30 50.0 90.00 2 0.22
MM S-A-H004-ER32-T15-H ER32 T15 23.90 4.0 44.00 1 0.15
MM S-A-H025-ER32-T15-H ER32 T15 23.90 25.0 65.00 2 0.21
MM S-A-H050-ER32-T15-H ER32 T15 23.90 50.0 90.00 2 0.25
• Do not apply lubricant to the threaded connection. • For adaptation see page 44
