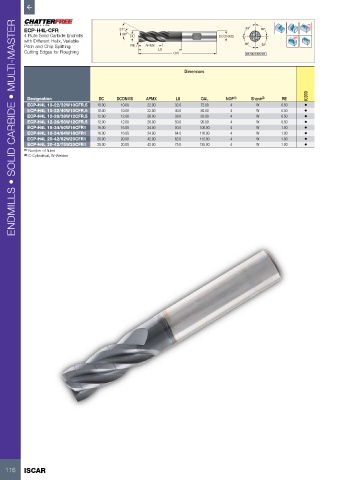

Page 118 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECP-H4L-CFR 37º a1° a2°
4 Flute Solid Carbide Endmills 36º DC DCONMS
with Different Helix, Variable a4°
Pitch and Chip Splitting RE APMX a3°
Cutting Edges for Roughing LU OAL a1≠a2≠a3≠a4

Dimensions

IC900
Designation DC DCONMS APMX LU OAL NOF (1) Shank (2) RE
ECP-H4L 10-22/32W10CFR.5 10.00 10.00 22.00 32.0 72.00 4 W 0.50 •
ECP-H4L 10-22/40W10CFR.5 10.00 10.00 22.00 40.0 80.00 4 W 0.50 •
ECP-H4L 12-26/38W12CFR.5 12.00 12.00 26.00 38.0 83.00 4 W 0.50 •
ECP-H4L 12-26/50W12CFR.5 12.00 12.00 26.00 50.0 95.00 4 W 0.50 •
ECP-H4L 16-34/50W16CFR1 16.00 16.00 34.00 50.0 100.00 4 W 1.00 •
ECP-H4L 16-34/64W16CFR1 16.00 16.00 34.00 64.0 116.00 4 W 1.00 •
ECP-H4L 20-42/62W20CFR1 20.00 20.00 42.00 62.0 112.00 4 W 1.00 •
ECP-H4L 20-42/75W20CFR1 20.00 20.00 42.00 75.0 125.00 4 W 1.00 •
(1) Number of flutes
(2) C-Cylindrical, W-Weldon

116 ISCAR
