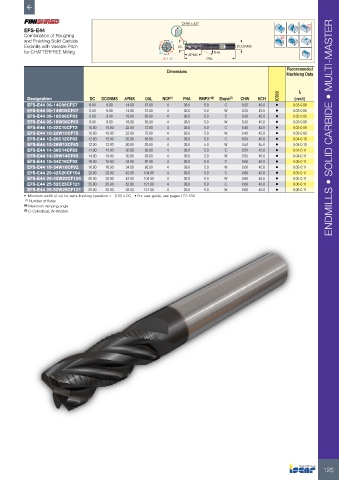

Page 127 - ISCAR(MILLINGCATALOG 38_2021)

CHW x 45° Rd°
EFS-E44
Combination of Roughing
and Finishing Solid Carbide a1 a2
Endmills with Variable Pitch DC DCONMS
for CHATTERFREE Milling a2 a1 FHA
APMX
a1≠ a2 OAL
Dimensions Recommended
Machining Data

IC900 fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) CHW KCH (mm/t)
EFS-E44 06-14C06CF57 6.00 6.00 14.00 57.00 4 38.0 5.0 C 0.25 45.0 • 0.03-0.06
EFS-E44 06-14W06CF57 6.00 6.00 14.00 57.00 4 38.0 5.0 W 0.25 45.0 • 0.03-0.06
EFS-E44 08-18C08CF63 8.00 8.00 18.00 63.00 4 38.0 5.0 C 0.30 45.0 • 0.03-0.08
EFS-E44 08-18W08CF63 8.00 8.00 18.00 63.00 4 38.0 5.0 W 0.30 45.0 • 0.03-0.08
EFS-E44 10-22C10CF72 10.00 10.00 22.00 72.00 4 38.0 5.0 C 0.40 45.0 • 0.03-0.09 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EFS-E44 10-22W10CF72 10.00 10.00 22.00 72.00 4 38.0 5.0 W 0.40 45.0 • 0.03-0.09
EFS-E44 12-26C12CF83 12.00 12.00 26.00 83.00 4 38.0 5.0 C 0.50 45.0 • 0.04-0.10
EFS-E44 12-26W12CF83 12.00 12.00 26.00 83.00 4 38.0 5.0 W 0.50 45.0 • 0.04-0.10
EFS-E44 14-30C14CF83 14.00 14.00 30.00 83.00 4 38.0 5.0 C 0.50 45.0 • 0.04-0.11
EFS-E44 14-30W14CF83 14.00 14.00 30.00 83.00 4 38.0 5.0 W 0.50 45.0 • 0.04-0.11
EFS-E44 16-34C16CF92 16.00 16.00 34.00 92.00 4 38.0 5.0 C 0.60 45.0 • 0.05-0.11
EFS-E44 16-34W16CF92 16.00 16.00 34.00 92.00 4 38.0 5.0 W 0.60 45.0 • 0.05-0.11
EFS-E44 20-42C20CF104 20.00 20.00 42.00 104.00 4 38.0 5.0 C 0.60 45.0 • 0.05-0.11
EFS-E44 20-42W20CF104 20.00 20.00 42.00 104.00 4 38.0 5.0 W 0.60 45.0 • 0.05-0.11
EFS-E44 25-52C25CF121 25.00 25.00 52.00 121.00 4 38.0 5.0 C 0.60 45.0 • 0.06-0.11
EFS-E44 25-52W25CF121 25.00 25.00 52.00 121.00 4 38.0 5.0 W 0.60 45.0 • 0.06-0.11
• Minimum width of cut for semi-finishing operation >= 0.05 x DC • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
