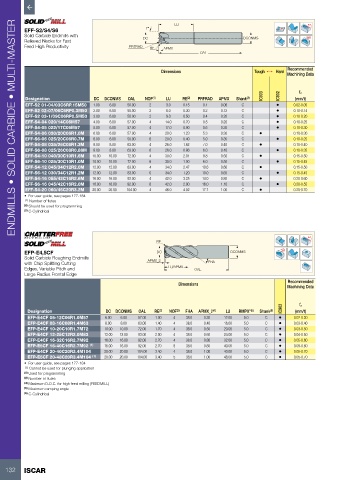

Page 134 - ISCAR(MILLINGCATALOG 38_2021)

LU Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EFF-S2/S4/S6 7°
Solid Carbide Endmills with DC DCONMS
Relieved Necks for Fast
Feed High Productivity PRFRAD RE APMX
OAL

Dimensions Tough 1 Hard Recommended
Machining Data

IC903 IC902 fz
Designation DC DCONMS OAL NOF (1) LU RE (2) PRFRAD APMX Shank (3) (mm/t)
EFF-S2 01-04/03C6RP.15M50 1.00 6.00 50.00 2 3.0 0.15 0.1 0.06 C • 0.02-0.05
EFF-S2 02-07/06C6RP0.3M50 2.00 6.00 50.00 2 6.0 0.30 0.2 0.12 C • 0.10-0.14
EFF-S2 03-1/09C06RP0.5M50 3.00 6.00 50.00 2 9.0 0.50 0.4 0.20 C • 0.10-0.20
EFF-S4-04 020/14C06M57 4.00 6.00 57.00 4 14.0 0.70 0.5 0.20 C • 0.10-0.25
EFF-S4-05 022/17C06M57 5.00 6.00 57.00 4 17.0 0.90 0.6 0.30 C • 0.10-0.30
EFF-S4-06 030/20C06R1.0M 6.00 6.00 57.00 4 20.0 1.23 5.3 0.30 C • 0.10-0.30
EFF-S6-06 025/20C06R0.7M 6.00 6.00 50.00 6 20.0 0.40 5.0 0.35 C • 0.10-0.25
EFF-S4-08 035/26C08R1.3M 8.00 8.00 63.00 4 26.0 1.62 7.0 0.40 C • 0.10-0.40
EFF-S6-08 025/26C08R0.86M 8.00 8.00 63.00 6 26.0 0.86 6.0 0.40 C • 0.10-0.35
EFF-S4-10 040/30C10R1.6M 10.00 10.00 72.00 4 30.0 2.01 8.8 0.50 C • 0.15-0.50
EFF-S6-10 025/30C10R1.0M 10.00 10.00 72.00 6 30.0 1.00 6.0 0.50 C • 0.15-0.45
EFF-S4-12 045/34C12R2.0M 12.00 12.00 83.00 4 34.0 2.47 10.6 0.60 C • 0.15-0.50
EFF-S6-12 030/34C12R1.2M 12.00 12.00 83.00 6 34.0 1.20 10.0 0.65 C • 0.15-0.45
EFF-S4-16 055/42C16R2.6M 16.00 16.00 92.00 4 42.0 3.25 14.0 0.80 C • 0.20-0.60
EFF-S6-16 045/42C16R2.0M 16.00 16.00 92.00 6 42.0 2.00 16.0 1.10 C • 0.20-0.55
EFF-S4-20 060/46C20R3.2M 20.00 20.00 104.00 4 46.0 4.02 17.7 1.00 C • 0.20-0.70
• For user guide, see pages 177-184
(1) Number of flutes
(2) Should be used for programming
(3) C-Cylindrical

Rd°
RE

EFP-E4,5CF DC DCONMS
Solid Carbide Roughing Endmills APMX_2
with Chip Splitting Cutting FHA
Edges, Variable Pitch and LU/APMX OAL
Large Radius Frontal Edge
Recommended
Dimensions
Machining Data

IC903 fz
Designation DC DCONMS OAL RE (2) NOF (3) FHA APMX_2 (4) LU RMPX° (5) Shank (6) (mm/t)
EFP-E4CF 06-12C06R1.0M57 6.00 6.00 57.00 1.00 4 38.0 0.30 12.00 5.0 C • 0.02-0.30
EFP-E4CF 08-16C08R1.4M63 8.00 8.00 63.00 1.40 4 38.0 0.40 16.00 5.0 C • 0.03-0.40
EFP-E4CF 10-20C10R1.7M72 10.00 10.00 72.00 1.70 4 38.0 0.50 20.00 5.0 C • 0.03-0.50
EFP-E4CF 12-25C12R2.0M83 12.00 12.00 83.00 2.00 4 38.0 0.60 24.00 5.0 C • 0.04-0.50
EFP-E4CF 16-32C16R2.7M92 16.00 16.00 92.00 2.70 4 38.0 0.80 32.00 5.0 C • 0.05-0.60
EFP-E5CF 16-40C16R2.7M92 (1) 16.00 16.00 92.00 2.70 5 38.0 0.80 40.00 5.0 C • 0.05-0.60
EFP-E4CF 20-40C20R3.4M104 20.00 20.00 104.00 3.40 4 38.0 1.00 40.00 5.0 C • 0.05-0.70
EFP-E5CF 20-48C20R3.4M104 (1) 20.00 20.00 104.00 3.40 5 38.0 1.00 48.00 5.0 C • 0.05-0.70
• For user guide, see pages 177-184
(1) Cannot be used for plunging application
(2) Used for programming
(3) Number of flutes
(4) Maximum D.O.C. for high feed milling (FEEDMILL)
(5) Maximum ramping angle
(6) C-Cylindrical
