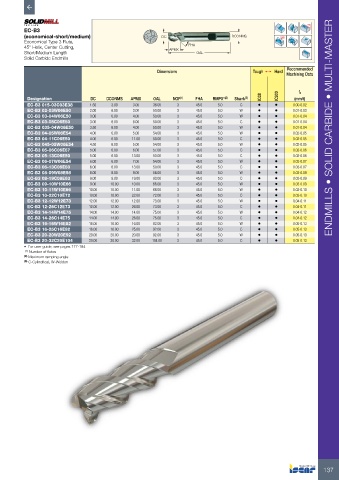

Page 139 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
EC-B3
(economical-short/medium) DC DCONMS
Economical Type 3 Flute,
45° Helix, Center Cutting, APMX FHA
Short/Medium Length OAL
Solid Carbide Endmills

Dimensions Tough 1 Hard Recommended
Machining Data

fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) IC08 IC900 (mm/t)
EC-B3 015-03C03E38 1.50 3.00 3.00 38.00 3 45.0 5.0 C • • 0.00-0.02
EC-B3 02-03W06E50 2.00 6.00 3.00 50.00 3 45.0 5.0 W • • 0.01-0.03
EC-B3 03-04W06E50 3.00 6.00 4.00 50.00 3 45.0 5.0 W • • 0.01-0.04
EC-B3 03-08C06E50 3.00 6.00 8.00 50.00 3 45.0 5.0 C • • 0.01-0.04
EC-B3 035-04W06E50 3.50 6.00 4.00 50.00 3 45.0 5.0 W • • 0.01-0.04 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EC-B3 04-05W06E54 4.00 6.00 5.00 54.00 3 45.0 5.0 W • • 0.02-0.05
EC-B3 04-11C06E50 4.00 6.00 11.00 50.00 3 45.0 5.0 C • • 0.02-0.05
EC-B3 045-05W06E54 4.50 6.00 5.00 54.00 3 45.0 5.0 W • • 0.02-0.05
EC-B3 05-06C06E57 5.00 6.00 6.00 57.00 3 45.0 5.0 C • • 0.02-0.06
EC-B3 05-13C06E50 5.00 6.00 13.00 50.00 3 45.0 5.0 C • • 0.02-0.06
EC-B3 06-07W06E54 6.00 6.00 7.00 54.00 3 45.0 5.0 W • • 0.03-0.07
EC-B3 06-13C06E50 6.00 6.00 13.00 50.00 3 45.0 5.0 C • • 0.03-0.07
EC-B3 08-09W08E58 8.00 8.00 9.00 58.00 3 45.0 5.0 W • • 0.03-0.09
EC-B3 08-19C08E63 8.00 8.00 19.00 63.00 3 45.0 5.0 C • • 0.03-0.09
EC-B3 09-10W10E66 9.00 10.00 10.00 66.00 3 45.0 5.0 W • • 0.03-0.09
EC-B3 10-11W10E66 10.00 10.00 11.00 66.00 3 45.0 5.0 W • • 0.03-0.10
EC-B3 10-22C10E72 10.00 10.00 22.00 72.00 3 45.0 5.0 C • • 0.03-0.10
EC-B3 12-12W12E73 12.00 12.00 12.00 73.00 3 45.0 5.0 W • • 0.04-0.11
EC-B3 12-26C12E73 12.00 12.00 26.00 73.00 3 45.0 5.0 C • • 0.04-0.11
EC-B3 14-14W14E75 14.00 14.00 14.00 75.00 3 45.0 5.0 W • • 0.04-0.12
EC-B3 14-26C14E75 14.00 14.00 26.00 75.00 3 45.0 5.0 C • • 0.04-0.12
EC-B3 16-16W16E82 16.00 16.00 16.00 82.00 3 45.0 5.0 W • • 0.05-0.13
EC-B3 16-25C16E92 16.00 16.00 25.00 92.00 3 45.0 5.0 C • • 0.05-0.13
EC-B3 20-20W20E92 20.00 20.00 20.00 92.00 3 45.0 5.0 W • • 0.05-0.13
EC-B3 20-32C20E104 20.00 20.00 32.00 104.00 3 45.0 5.0 C • • 0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
