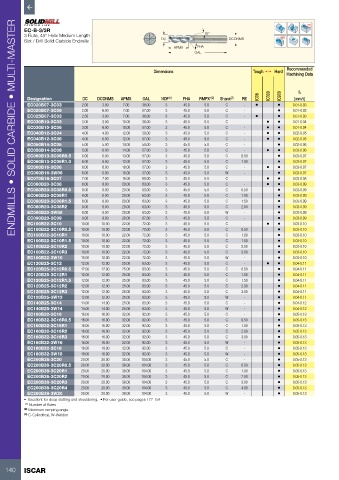

Page 142 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EC-B-3/3R
3 Flute, 45° Helix Medium Length 15°
Slot / Drill Solid Carbide Endmills DC DCONMS
APMX FHA
OAL

Dimensions Tough 1 Hard Recommended
Machining Data

fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) RE IC08 IC300 IC900 (mm/t)
EC020B07-3C03 2.00 3.00 7.00 38.00 3 45.0 5.0 C - • • 0.01-0.03
EC020B07-3C06 2.00 6.00 7.00 57.00 3 45.0 5.0 C - • 0.01-0.03
EC025B07-3C03 2.50 3.00 7.00 38.00 3 45.0 5.0 C - • • 0.01-0.03
EC030B10-3C03 3.00 3.00 10.00 38.00 3 45.0 5.0 C - • • 0.01-0.04
EC030B10-3C06 3.00 6.00 10.00 57.00 3 45.0 5.0 C - • • 0.01-0.04
EC040B12-3C04 4.00 4.00 12.00 50.00 3 45.0 5.0 C - • • 0.02-0.05
EC040B12-3C06 4.00 6.00 12.00 57.00 3 45.0 5.0 C - • • 0.02-0.05
EC050B14-3C05 5.00 5.00 14.00 50.00 3 45.0 5.0 C - • 0.02-0.06
EC050B14-3C06 5.00 6.00 14.00 57.00 3 45.0 5.0 C - • • 0.02-0.06
EC060B13-3C06R0.5 6.00 6.00 13.00 57.00 3 45.0 5.0 C 0.50 • 0.03-0.07
EC060B13-3C06R1.0 6.00 6.00 13.00 57.00 3 45.0 5.0 C 1.00 • 0.03-0.07
EC060B16-3C06 6.00 6.00 16.00 57.00 3 45.0 5.0 C - • • 0.03-0.07
EC060B16-3W06 6.00 6.00 16.00 57.00 3 45.0 5.0 W - • 0.03-0.07
EC070B16-3C07 7.00 7.00 16.00 60.00 3 45.0 5.0 C - • • 0.03-0.08
EC080B20-3C08 8.00 8.00 20.00 63.00 3 45.0 5.0 C - • • 0.03-0.09
EC080B20-3C08R0.5 8.00 8.00 20.00 63.00 3 45.0 5.0 C 0.50 • 0.03-0.09
EC080B20-3C08R1 8.00 8.00 20.00 63.00 3 45.0 5.0 C 1.00 • 0.03-0.09
EC080B20-3C08R1.5 8.00 8.00 20.00 63.00 3 45.0 5.0 C 1.50 • 0.03-0.09
EC080B20-3C08R2 8.00 8.00 20.00 63.00 3 45.0 5.0 C 2.00 • 0.03-0.09
EC080B20-3W08 8.00 8.00 20.00 63.00 3 45.0 5.0 W - • 0.03-0.09
EC090B20-3C09 9.00 9.00 20.00 67.00 3 45.0 5.0 C - • 0.03-0.09
EC100B22-3C10 10.00 10.00 22.00 72.00 3 45.0 5.0 C - • • 0.03-0.10
EC100B22-3C10R0.5 10.00 10.00 22.00 72.00 3 45.0 5.0 C 0.50 • 0.03-0.10
EC100B22-3C10R1 10.00 10.00 22.00 72.00 3 45.0 5.0 C 1.00 • 0.03-0.10
EC100B22-3C10R1.5 10.00 10.00 22.00 72.00 3 45.0 5.0 C 1.50 • 0.03-0.10
EC100B22-3C10R2 10.00 10.00 22.00 72.00 3 45.0 5.0 C 2.00 • 0.03-0.10
EC100B22-3C10R3 10.00 10.00 22.00 72.00 3 45.0 5.0 C 3.00 • 0.03-0.10
EC100B22-3W10 10.00 10.00 22.00 72.00 3 45.0 5.0 W - • 0.03-0.10
EC120B25-3C12 12.00 12.00 25.00 83.00 3 45.0 5.0 C - • • 0.04-0.11
EC120B25-3C12R0.5 12.00 12.00 25.00 83.00 3 45.0 5.0 C 0.50 • 0.04-0.11
EC120B25-3C12R1 12.00 12.00 25.00 83.00 3 45.0 5.0 C 1.00 • 0.04-0.11
EC120B25-3C12R1.5 12.00 12.00 25.00 83.00 3 45.0 5.0 C 1.50 • 0.04-0.11
EC120B25-3C12R2 12.00 12.00 25.00 83.00 3 45.0 5.0 C 2.00 • 0.04-0.11
EC120B25-3C12R3 12.00 12.00 25.00 83.00 3 45.0 5.0 C 3.00 • 0.04-0.11
EC120B25-3W12 12.00 12.00 25.00 83.00 3 45.0 5.0 W - • 0.04-0.11
EC140B25-3C14 14.00 14.00 25.00 83.00 3 45.0 5.0 C - • 0.04-0.12
EC140B25-3W14 14.00 14.00 25.00 83.00 3 45.0 5.0 W - • 0.04-0.12
EC160B32-3C16 16.00 16.00 32.00 92.00 3 45.0 5.0 C - • 0.05-0.13
EC160B32-3C16R0.5 16.00 16.00 32.00 92.00 3 45.0 5.0 C 0.50 • 0.05-0.13
EC160B32-3C16R1 16.00 16.00 32.00 92.00 3 45.0 5.0 C 1.00 • 0.05-0.13
EC160B32-3C16R2 16.00 16.00 32.00 92.00 3 45.0 5.0 C 2.00 • 0.05-0.13
EC160B32-3C16R3 16.00 16.00 32.00 92.00 3 45.0 5.0 C 3.00 • 0.05-0.13
EC160B32-3W16 16.00 16.00 32.00 92.00 3 45.0 5.0 W - • 0.05-0.13
EC180B32-3C18 18.00 18.00 32.00 92.00 3 45.0 5.0 C - • 0.05-0.13
EC180B32-3W18 18.00 18.00 32.00 92.00 3 45.0 5.0 W - • 0.05-0.13
EC200B38-3C20 20.00 20.00 38.00 104.00 3 45.0 5.0 C - • 0.05-0.13
EC200B38-3C20R0.5 20.00 20.00 38.00 104.00 3 45.0 5.0 C 0.50 • 0.05-0.13
EC200B38-3C20R1 20.00 20.00 38.00 104.00 3 45.0 5.0 C 1.00 • 0.05-0.13
EC200B38-3C20R2 20.00 20.00 38.00 104.00 3 45.0 5.0 C 2.00 • 0.05-0.13
EC200B38-3C20R3 20.00 20.00 38.00 104.00 3 45.0 5.0 C 3.00 • 0.05-0.13
EC200B38-3C20R4 20.00 20.00 38.00 104.00 3 45.0 5.0 C 4.00 • 0.05-0.13
EC200B38-3W20 20.00 20.00 38.00 104.00 3 45.0 5.0 W - • 0.05-0.13
• Excellent for deep slotting and shouldering. • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
