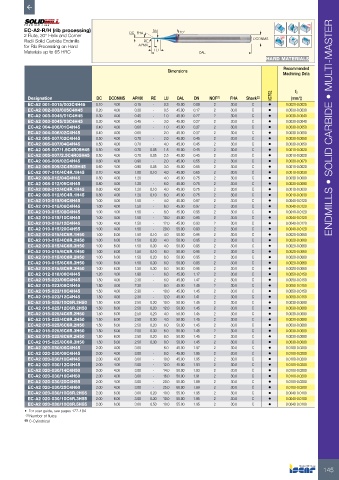

Page 147 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
EC-A2-R/H (rib processing) DC DN 15°
2 Flute, 30° Helix and Corner FHA
Radii Solid Carbide Endmills RE DCONMS
for Rib Processing on Hard APMX
Materials up to 65 HRC LU OAL
HARD MATERIALS
Recommended
Dimensions
Machining Data

IC702 fz
Designation DC DCONMS APMX RE LU OAL DN NOF (1) FHA Shank (2) (mm/t)
EC-A2 001-0015/003C4H45 0.10 4.00 0.15 - 0.3 45.00 0.09 2 30.0 C • 0.0020-0.0025
EC-A2 002-003/005C4H45 0.20 4.00 0.30 - 0.5 45.00 0.17 2 30.0 C • 0.0030-0.0030
EC-A2 003-0045/01C4H45 0.30 4.00 0.45 - 1.0 45.00 0.27 2 30.0 C • 0.0030-0.0040
EC-A2 003-0045/03C4H45 0.30 4.00 0.45 - 3.0 45.00 0.27 2 30.0 C • 0.0030-0.0040
EC-A2 004-006/01C4H45 0.40 4.00 0.60 - 1.0 45.00 0.37 2 30.0 C • 0.0030-0.0050 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EC-A2 004-006/02C4H45 0.40 4.00 0.60 - 2.0 45.00 0.37 2 30.0 C • 0.0030-0.0050
EC-A2 005-007/02C4H45 0.50 4.00 0.70 - 2.0 45.00 0.45 2 30.0 C • 0.0030-0.0050
EC-A2 005-007/04C4H45 0.50 4.00 0.70 - 4.0 45.00 0.45 2 30.0 C • 0.0030-0.0050
EC-A2 005-007/1.5C4R05H45 0.50 4.00 0.70 0.05 1.5 45.00 0.45 2 30.0 C • 0.0010-0.0020
EC-A2 005-007/2.5C4R05H45 0.50 4.00 0.70 0.05 2.5 45.00 0.45 2 30.0 C • 0.0010-0.0020
EC-A2 006-009/02C4H45 0.60 4.00 0.90 - 2.0 45.00 0.55 2 30.0 C • 0.0030-0.0070
EC-A2 006-009/3C4R05H45 0.60 4.00 0.90 0.05 3.0 45.00 0.55 2 30.0 C • 0.0010-0.0020
EC-A2 007-010/4C4R.1H45 0.70 4.00 1.00 0.10 4.0 45.00 0.65 2 30.0 C • 0.0010-0.0030
EC-A2 008-012/04C4H45 0.80 4.00 1.20 - 4.0 45.00 0.75 2 30.0 C • 0.0030-0.0080
EC-A2 008-012/06C4H45 0.80 4.00 1.20 - 6.0 45.00 0.75 2 30.0 C • 0.0030-0.0090
EC-A2 008-012/4C4R.1H45 0.80 4.00 1.20 0.10 4.0 45.00 0.75 2 30.0 C • 0.0010-0.0030
EC-A2 008-012/6C4R.1H45 0.80 4.00 1.20 0.10 6.0 45.00 0.75 2 30.0 C • 0.0010-0.0030
EC-A2 010-015/04C4H45 1.00 4.00 1.50 - 4.0 45.00 0.97 2 30.0 C • 0.0040-0.0120
EC-A2 010-015/06C4H45 1.00 4.00 1.50 - 6.0 45.00 0.97 2 30.0 C • 0.0040-0.0120
EC-A2 010-015/08C4H45 1.00 4.00 1.50 - 8.0 45.00 0.95 2 30.0 C • 0.0040-0.0120
EC-A2 010-015/10C4H45 1.00 4.00 1.50 - 10.0 45.00 0.95 2 30.0 C • 0.0040-0.0120
EC-A2 010-015/12C4H45 1.00 4.00 1.50 - 12.0 45.00 0.93 2 30.0 C • 0.0040-0.0120
EC-A2 010-015/20C4H55 1.00 4.00 1.50 - 20.0 55.00 0.93 2 30.0 C • 0.0040-0.0120
EC-A2 010-015/4C6R.1H50 1.00 6.00 1.50 0.10 4.0 50.00 0.95 2 30.0 C • 0.0020-0.0060
EC-A2 010-015/4C6R.2H50 1.00 6.00 1.50 0.20 4.0 50.00 0.95 2 30.0 C • 0.0020-0.0060
EC-A2 010-015/4C6R.3H50 1.00 6.00 1.50 0.30 4.0 50.00 0.95 2 30.0 C • 0.0020-0.0060
EC-A2 010-015/6C6R.1H50 1.00 6.00 1.50 0.10 6.0 50.00 0.95 2 30.0 C • 0.0020-0.0060
EC-A2 010-015/6C6R.2H50 1.00 6.00 1.50 0.20 6.0 50.00 0.95 2 30.0 C • 0.0020-0.0060
EC-A2 010-015/6C6R.3H50 1.00 6.00 1.50 0.30 6.0 50.00 0.95 2 30.0 C • 0.0020-0.0060
EC-A2 010-015/8C6R.3H50 1.00 6.00 1.50 0.30 8.0 50.00 0.95 2 30.0 C • 0.0020-0.0060
EC-A2 012-018/06C4H45 1.20 4.00 1.80 - 6.0 45.00 1.17 2 30.0 C • 0.0050-0.0150
EC-A2 015-023/06C4H45 1.50 4.00 2.30 - 6.0 45.00 1.47 2 30.0 C • 0.0050-0.0150
EC-A2 015-023/08C4H45 1.50 4.00 2.30 - 8.0 45.00 1.45 2 30.0 C • 0.0050-0.0150
EC-A2 015-023/10C4H45 1.50 4.00 2.30 - 10.0 45.00 1.45 2 30.0 C • 0.0050-0.0150
EC-A2 015-023/12C4H45 1.50 4.00 2.30 - 12.0 45.00 1.41 2 30.0 C • 0.0050-0.0150
EC-A2 015-025/10C6R.2H50 1.50 6.00 2.50 0.20 10.0 50.00 1.45 2 30.0 C • 0.0030-0.0080
EC-A2 015-025/12C6R.2H50 1.50 6.00 2.50 0.20 12.0 50.00 1.45 2 30.0 C • 0.0030-0.0080
EC-A2 015-025/4C6R.2H50 1.50 6.00 2.50 0.20 4.0 50.00 1.45 2 30.0 C • 0.0030-0.0080
EC-A2 015-025/4C6R.3H50 1.50 6.00 2.50 0.30 4.0 50.00 1.45 2 30.0 C • 0.0030-0.0080
EC-A2 015-025/6C6R.2H50 1.50 6.00 2.50 0.20 6.0 50.00 1.45 2 30.0 C • 0.0030-0.0080
EC-A2 015-025/6C6R.3H50 1.50 6.00 2.50 0.30 6.0 50.00 1.45 2 30.0 C • 0.0030-0.0080
EC-A2 015-025/8C6R.2H50 1.50 6.00 2.50 0.20 8.0 50.00 1.45 2 30.0 C • 0.0030-0.0080
EC-A2 015-025/8C6R.3H50 1.50 6.00 2.50 0.30 8.0 50.00 1.45 2 30.0 C • 0.0030-0.0080
EC-A2 020-030/06C4H45 2.00 4.00 3.00 - 6.0 45.00 1.97 2 30.0 C • 0.0100-0.0200
EC-A2 020-030/08C4H45 2.00 4.00 3.00 - 8.0 45.00 1.95 2 30.0 C • 0.0100-0.0200
EC-A2 020-030/10C4H45 2.00 4.00 3.00 - 10.0 45.00 1.95 2 30.0 C • 0.0100-0.0200
EC-A2 020-030/12C4H45 2.00 4.00 3.00 - 12.0 45.00 1.93 2 30.0 C • 0.0100-0.0200
EC-A2 020-030/14C4H50 2.00 4.00 3.00 - 14.0 50.00 1.93 2 30.0 C • 0.0100-0.0200
EC-A2 020-030/16C4H50 2.00 4.00 3.00 - 16.0 50.00 1.91 2 30.0 C • 0.0100-0.0200
EC-A2 020-030/20C4H55 2.00 4.00 3.00 - 20.0 55.00 1.89 2 30.0 C • 0.0100-0.0200
EC-A2 020-030/25C4H60 2.00 4.00 3.00 - 25.0 60.00 1.89 2 30.0 C • 0.0100-0.0200
EC-A2 020-030/10C6R.2H55 2.00 6.00 3.00 0.20 10.0 55.00 1.95 2 30.0 C • 0.0040-0.0100
EC-A2 020-030/10C6R.3H55 2.00 6.00 3.00 0.30 10.0 55.00 1.95 2 30.0 C • 0.0040-0.0100
EC-A2 020-030/10C6R.5H55 2.00 6.00 3.00 0.50 10.0 55.00 1.95 2 30.0 C • 0.0040-0.0100
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical

145
