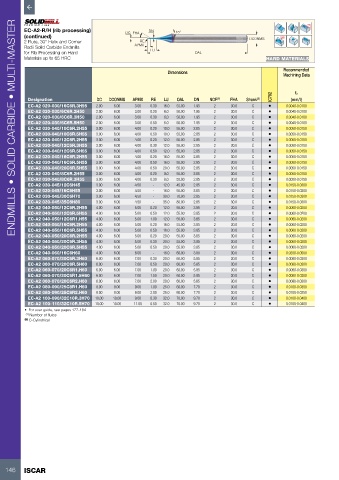

Page 148 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EC-A2-R/H (rib processing) DC FHA DN 15°
(continued) DCONMS
2 Flute, 30° Helix and Corner RE
Radii Solid Carbide Endmills APMX
for Rib Processing on Hard LU OAL
Materials up to 65 HRC HARD MATERIALS
Recommended
Dimensions Machining Data

IC702 fz
Designation DC DCONMS APMX RE LU OAL DN NOF (1) FHA Shank (2) (mm/t)
EC-A2 020-030/16C6R.3H55 2.00 6.00 3.00 0.30 16.0 55.00 1.95 2 30.0 C • 0.0040-0.0100
EC-A2 020-030/6C6R.2H50 2.00 6.00 3.00 0.20 6.0 50.00 1.95 2 30.0 C • 0.0040-0.0100
EC-A2 020-030/6C6R.3H50 2.00 6.00 3.00 0.30 6.0 50.00 1.95 2 30.0 C • 0.0040-0.0100
EC-A2 020-030/6C6R.5H50 2.00 6.00 3.00 0.50 6.0 50.00 1.95 2 30.0 C • 0.0040-0.0100
EC-A2 030-040/10C6R.2H55 3.00 6.00 4.00 0.20 10.0 55.00 2.85 2 30.0 C • 0.0050-0.0150
EC-A2 030-040/10C6R.5H55 3.00 6.00 4.00 0.50 10.0 55.00 2.85 2 30.0 C • 0.0050-0.0150
EC-A2 030-040/12C6R.2H55 3.00 6.00 4.00 0.20 12.0 55.00 2.85 2 30.0 C • 0.0050-0.0150
EC-A2 030-040/12C6R.3H55 3.00 6.00 4.00 0.30 12.0 55.00 2.85 2 30.0 C • 0.0050-0.0150
EC-A2 030-040/12C6R.5H55 3.00 6.00 4.00 0.50 12.0 55.00 2.85 2 30.0 C • 0.0050-0.0150
EC-A2 030-040/16C6R.2H55 3.00 6.00 4.00 0.20 16.0 55.00 2.85 2 30.0 C • 0.0050-0.0150
EC-A2 030-040/16C6R.5H55 3.00 6.00 4.00 0.50 16.0 55.00 2.85 2 30.0 C • 0.0050-0.0150
EC-A2 030-040/20C6R.5H55 3.00 6.00 4.00 0.50 20.0 55.00 2.85 2 30.0 C • 0.0050-0.0150
EC-A2 030-040/8C6R.2H55 3.00 6.00 4.00 0.20 8.0 55.00 2.85 2 30.0 C • 0.0050-0.0150
EC-A2 030-040/8C6R.3H55 3.00 6.00 4.00 0.30 8.0 55.00 2.85 2 30.0 C • 0.0050-0.0150
EC-A2 030-045/12C6H45 3.00 6.00 4.50 - 12.0 45.00 2.85 2 30.0 C • 0.0150-0.0300
EC-A2 030-045/16C6H55 3.00 6.00 4.50 - 16.0 55.00 2.85 2 30.0 C • 0.0150-0.0300
EC-A2 030-045/30C6H70 3.00 6.00 4.50 - 30.0 70.00 2.85 2 30.0 C • 0.0150-0.0300
EC-A2 030-045/35C6H80 3.00 6.00 4.50 - 35.0 80.00 2.85 2 30.0 C • 0.0150-0.0300
EC-A2 040-050/12C6R.2H55 4.00 6.00 5.00 0.20 12.0 55.00 3.85 2 30.0 C • 0.0060-0.0200
EC-A2 040-050/12C6R.5H55 4.00 6.00 5.00 0.50 12.0 55.00 3.85 2 30.0 C • 0.0060-0.0200
EC-A2 040-050/12C6R1.H55 4.00 6.00 5.00 1.00 12.0 55.00 3.85 2 30.0 C • 0.0060-0.0200
EC-A2 040-050/16C6R.2H55 4.00 6.00 5.00 0.20 16.0 55.00 3.85 2 30.0 C • 0.0060-0.0200
EC-A2 040-050/16C6R.5H55 4.00 6.00 5.00 0.50 16.0 55.00 3.85 2 30.0 C • 0.0060-0.0200
EC-A2 040-050/20C6R.2H55 4.00 6.00 5.00 0.20 20.0 55.00 3.85 2 30.0 C • 0.0060-0.0200
EC-A2 040-050/20C6R.3H55 4.00 6.00 5.00 0.30 20.0 55.00 3.85 2 30.0 C • 0.0060-0.0200
EC-A2 040-050/20C6R.5H55 4.00 6.00 5.00 0.50 20.0 55.00 3.85 2 30.0 C • 0.0060-0.0200
EC-A2 040-060/16C6H60 4.00 6.00 6.00 - 16.0 60.00 3.80 2 30.0 C • 0.0200-0.0500
EC-A2 060-070/20C6R.3H60 6.00 6.00 7.00 0.30 20.0 60.00 5.85 2 30.0 C • 0.0080-0.0300
EC-A2 060-070/20C6R.5H60 6.00 6.00 7.00 0.50 20.0 60.00 5.85 2 30.0 C • 0.0080-0.0300
EC-A2 060-070/20C6R1.H60 6.00 6.00 7.00 1.00 20.0 60.00 5.85 2 30.0 C • 0.0080-0.0300
EC-A2 060-070/20C6R1.5H60 6.00 6.00 7.00 1.50 20.0 60.00 5.85 2 30.0 C • 0.0080-0.0300
EC-A2 060-070/20C6R2.H60 6.00 6.00 7.00 2.00 20.0 60.00 5.85 2 30.0 C • 0.0080-0.0300
EC-A2 080-090/25C8R1.H60 8.00 8.00 9.00 1.00 25.0 60.00 7.70 2 30.0 C • 0.0100-0.0350
EC-A2 080-090/25C8R2.H60 8.00 8.00 9.00 2.00 25.0 60.00 7.70 2 30.0 C • 0.0100-0.0350
EC-A2 100-090/32C10R.3H70 10.00 10.00 9.00 0.30 32.0 70.00 9.70 2 30.0 C • 0.0100-0.0400
EC-A2 100-110/32C10R.5H70 10.00 10.00 11.00 0.50 32.0 70.00 9.70 2 30.0 C • 0.0100-0.0400
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical

146 ISCAR
