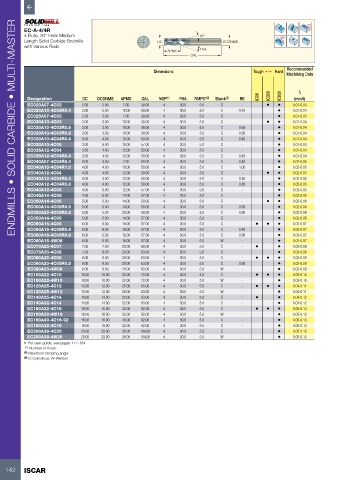

Page 144 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EC-A-4/4R

4 Flute, 30° Helix Medium 15°
Length Solid Carbide Endmills DC DCONMS
with Various Radii
APMX FHA
OAL

Dimensions Tough 1 Hard Recommended
Machining Data

fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) RE IC08 IC300 IC900 (mm/t)
EC020A07-4C03 2.00 3.00 7.00 38.00 4 30.0 5.0 C - • • 0.01-0.03
EC020A10-4C05R0.4 2.00 5.00 10.00 50.00 4 30.0 5.0 C 0.40 • 0.01-0.04
EC025A07-4C03 2.50 3.00 7.00 38.00 4 30.0 5.0 C - • 0.01-0.03
EC030A10-4C03 3.00 3.00 10.00 38.00 4 30.0 5.0 C - • • 0.01-0.04
EC030A10-4C03R0.6 3.00 3.00 10.00 38.00 4 30.0 5.0 C 0.60 • 0.01-0.04
EC030A10-4C03R0.8 3.00 3.00 10.00 38.00 4 30.0 5.0 C 0.80 • 0.01-0.04
EC030A10-4C04R0.4 3.00 4.00 10.00 50.00 4 30.0 5.0 C 0.40 • 0.01-0.04
EC030A10-4C06 3.00 6.00 10.00 57.00 4 30.0 5.0 C - • 0.01-0.04
EC035A12-4C04 3.50 4.00 12.00 50.00 4 30.0 5.0 C - • 0.01-0.04
EC035A12-4C04R0.4 3.50 4.00 12.00 50.00 4 30.0 5.0 C 0.40 • 0.01-0.04
EC040A07-4C04R0.4 4.00 4.00 7.00 50.00 4 30.0 5.0 C 0.40 • 0.02-0.05
EC040A10-4C04R1.0 4.00 4.00 10.00 50.00 4 30.0 5.0 C 1.00 • 0.02-0.05
EC040A12-4C04 4.00 4.00 12.00 50.00 4 30.0 5.0 C - • • 0.02-0.05
EC040A12-4C04R0.4 4.00 4.00 12.00 50.00 4 30.0 5.0 C 0.40 • 0.02-0.05
EC040A12-4C04R0.8 4.00 4.00 12.00 50.00 4 30.0 5.0 C 0.80 • 0.02-0.05
EC040A12-4C06 4.00 6.00 12.00 57.00 4 30.0 5.0 C - • 0.02-0.05
EC045A14-4C06 4.50 6.00 14.00 57.00 4 30.0 5.0 C - • 0.02-0.05
EC050A14-4C05 5.00 5.00 14.00 50.00 4 30.0 5.0 C - • • 0.02-0.06
EC050A14-4C05R0.5 5.00 5.00 14.00 50.00 4 30.0 5.0 C 0.50 • 0.02-0.06
EC050A20-4C05R0.8 5.00 5.00 20.00 50.00 4 30.0 5.0 C 0.80 • 0.02-0.06
EC050A14-4C06 5.00 6.00 14.00 57.00 4 30.0 5.0 C - • 0.02-0.06
EC060A16-4C06 6.00 6.00 16.00 57.00 4 30.0 5.0 C - • • • 0.03-0.07
EC060A16-4C06R0.4 6.00 6.00 16.00 57.00 4 30.0 5.0 C 0.40 • 0.03-0.07
EC060A16-4C06R0.8 6.00 6.00 16.00 57.00 4 30.0 5.0 C 0.80 • 0.03-0.07
EC060A16-4W06 6.00 6.00 16.00 57.00 4 30.0 5.0 W - • 0.03-0.07
EC070A20-4C07 7.00 7.00 20.00 60.00 4 30.0 5.0 C - • • 0.03-0.08
EC075A20-4C08 7.50 8.00 20.00 63.00 4 30.0 5.0 C - • 0.03-0.08
EC080A20-4C08 8.00 8.00 20.00 63.00 4 30.0 5.0 C - • • • 0.03-0.09
EC080A20-4C08R0.8 8.00 8.00 20.00 63.00 4 30.0 5.0 C 0.80 • 0.03-0.09
EC080A20-4W08 8.00 8.00 20.00 63.00 4 30.0 5.0 W - • 0.03-0.09
EC100A22-4C10 10.00 10.00 22.00 72.00 4 30.0 5.0 C - • • • 0.03-0.10
EC100A22-4W10 10.00 10.00 22.00 72.00 4 30.0 5.0 W - • 0.03-0.10
EC120A25-4C12 12.00 12.00 25.00 83.00 4 30.0 5.0 C - • • • 0.04-0.11
EC120A25-4W12 12.00 12.00 25.00 83.00 4 30.0 5.0 W - • 0.04-0.11
EC140A25-4C14 14.00 14.00 25.00 83.00 4 30.0 5.0 C - • • 0.04-0.12
EC140A32-4C14 14.00 14.00 32.00 83.00 4 30.0 5.0 C - • 0.04-0.12
EC160A32-4C16 16.00 16.00 32.00 92.00 4 30.0 5.0 C - • • • 0.05-0.13
EC160A32-4W16 16.00 16.00 32.00 92.00 4 30.0 5.0 W - • 0.05-0.13
EC160A40-4C16-92 16.00 16.00 40.00 92.00 4 30.0 5.0 C - • 0.05-0.13
EC180A32-4C18 18.00 18.00 32.00 92.00 4 30.0 5.0 C - • 0.05-0.13
EC200A38-4C20 20.00 20.00 38.00 104.00 4 30.0 5.0 C - • 0.05-0.13
EC200A38-4W20 20.00 20.00 38.00 104.00 4 30.0 5.0 W - • 0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
