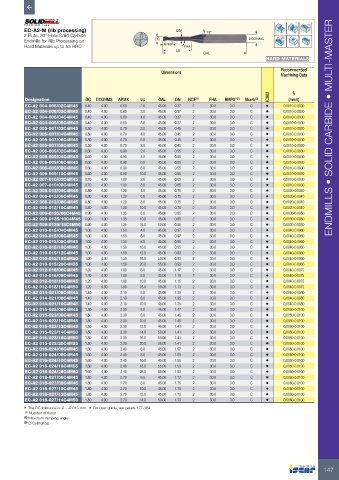

Page 149 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
EC-A2-M (rib processing) DN 15°

2 Flute, 30° Helix Solid Carbide
Endmills for Rib Processing on DC DCONMS
Hard Materials up to 55 HRC APMX FHA
LU
OAL
HARD MATERIALS
Recommended
Dimensions Machining Data

IC903 fz
Designation DC DCONMS APMX LU OAL DN NOF (1) FHA RMPX° (2) Shank (3) (mm/t)
EC-A2 004-006/02C4M45 0.40 4.00 0.60 2.0 45.00 0.37 2 30.0 3.0 C • 0.0010-0.0030
EC-A2 004-006/03C4M45 0.40 4.00 0.60 3.0 45.00 0.37 2 30.0 3.0 C • 0.0010-0.0030
EC-A2 004-006/04C4M45 0.40 4.00 0.60 4.0 45.00 0.37 2 30.0 3.0 C • 0.0010-0.0030
EC-A2 004-006/05C4M45 0.40 4.00 0.60 5.0 45.00 0.37 2 30.0 3.0 C • 0.0010-0.0030
EC-A2 005-007/02C4M45 0.50 4.00 0.70 2.0 45.00 0.45 2 30.0 3.0 C • 0.0010-0.0030 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EC-A2 005-007/04C4M45 0.50 4.00 0.70 4.0 45.00 0.45 2 30.0 3.0 C • 0.0010-0.0030
EC-A2 005-007/06C4M45 0.50 4.00 0.70 6.0 45.00 0.45 2 30.0 3.0 C • 0.0010-0.0030
EC-A2 005-007/08C4M45 0.50 4.00 0.70 8.0 45.00 0.45 2 30.0 3.0 C • 0.0010-0.0030
EC-A2 006-009/02C4M45 0.60 4.00 0.90 2.0 45.00 0.55 2 30.0 3.0 C • 0.0010-0.0030
EC-A2 006-009/04C4M45 0.60 4.00 0.90 4.0 45.00 0.55 2 30.0 3.0 C • 0.0010-0.0030
EC-A2 006-009/06C4M45 0.60 4.00 0.90 6.0 45.00 0.55 2 30.0 3.0 C • 0.0010-0.0030
EC-A2 006-009/08C4M45 0.60 4.00 0.90 8.0 45.00 0.55 2 30.0 3.0 C • 0.0010-0.0030
EC-A2 006-009/10C4M45 0.60 4.00 0.90 10.0 45.00 0.55 2 30.0 3.0 C • 0.0010-0.0030
EC-A2 007-010/02C4M45 0.70 4.00 1.00 2.0 45.00 0.65 2 30.0 3.0 C • 0.0010-0.0030
EC-A2 007-010/08C4M45 0.70 4.00 1.00 8.0 45.00 0.65 2 30.0 3.0 C • 0.0010-0.0030
EC-A2 008-012/04C4M45 0.80 4.00 1.20 4.0 45.00 0.75 2 30.0 3.0 C • 0.0020-0.0040
EC-A2 008-012/06C4M45 0.80 4.00 1.20 6.0 45.00 0.75 2 30.0 3.0 C • 0.0020-0.0040
EC-A2 008-012/08C4M45 0.80 4.00 1.20 8.0 45.00 0.75 2 30.0 3.0 C • 0.0020-0.0040
EC-A2 008-012/10C4M45 0.80 4.00 1.20 10.0 45.00 0.75 2 30.0 3.0 C • 0.0020-0.0040
EC-A2 009-0135/06C4M45 0.90 4.00 1.35 6.0 45.00 0.85 2 30.0 3.0 C • 0.0030-0.0050
EC-A2 009-0135/10C4M45 0.90 4.00 1.35 10.0 45.00 0.85 2 30.0 3.0 C • 0.0030-0.0050
EC-A2 009-0135/15C4M50 0.90 4.00 1.35 15.0 50.00 0.85 2 30.0 3.0 C • 0.0030-0.0050
EC-A2 010-015/04C4M45 1.00 4.00 1.50 4.0 45.00 0.97 2 30.0 3.0 C • 0.0040-0.0060
EC-A2 010-015/06C4M45 1.00 4.00 1.50 6.0 45.00 0.97 2 30.0 3.0 C • 0.0040-0.0060
EC-A2 010-015/08C4M45 1.00 4.00 1.50 8.0 45.00 0.95 2 30.0 3.0 C • 0.0040-0.0060
EC-A2 010-015/10C4M45 1.00 4.00 1.50 10.0 45.00 0.95 2 30.0 3.0 C • 0.0040-0.0060
EC-A2 010-015/12C4M45 1.00 4.00 1.50 12.0 45.00 0.93 2 30.0 3.0 C • 0.0040-0.0060
EC-A2 010-015/16C4M50 1.00 4.00 1.50 16.0 50.00 0.93 2 30.0 3.0 C • 0.0040-0.0060
EC-A2 010-015/20C4M55 1.00 4.00 1.50 20.0 55.00 0.93 2 30.0 3.0 C • 0.0040-0.0060
EC-A2 012-018/06C4M45 1.20 4.00 1.80 6.0 45.00 1.17 2 30.0 3.0 C • 0.0040-0.0075
EC-A2 012-018/08C4M45 1.20 4.00 1.80 8.0 45.00 1.15 2 30.0 3.0 C • 0.0040-0.0075
EC-A2 012-018/10C4M45 1.20 4.00 1.80 10.0 45.00 1.15 2 30.0 3.0 C • 0.0040-0.0075
EC-A2 012-018/16C4M50 1.20 4.00 1.80 16.0 50.00 1.13 2 30.0 3.0 C • 0.0040-0.0075
EC-A2 014-021/06C4M45 1.40 4.00 2.10 6.0 45.00 1.35 2 30.0 3.0 C • 0.0040-0.0080
EC-A2 014-021/08C4M45 1.40 4.00 2.10 8.0 45.00 1.35 2 30.0 3.0 C • 0.0040-0.0080
EC-A2 014-021/10C4M45 1.40 4.00 2.10 10.0 45.00 1.35 2 30.0 3.0 C • 0.0040-0.0080
EC-A2 015-023/06C4M45 1.50 4.00 2.30 6.0 45.00 1.47 2 30.0 3.0 C • 0.0050-0.0100
EC-A2 015-023/08C4M45 1.50 4.00 2.30 8.0 45.00 1.45 2 30.0 3.0 C • 0.0050-0.0100
EC-A2 015-023/10C4M45 1.50 4.00 2.30 10.0 45.00 1.45 2 30.0 3.0 C • 0.0050-0.0100
EC-A2 015-023/12C4M45 1.50 4.00 2.30 12.0 45.00 1.41 2 30.0 3.0 C • 0.0050-0.0100
EC-A2 015-023/14C4M50 1.50 4.00 2.30 14.0 50.00 1.41 2 30.0 3.0 C • 0.0050-0.0100
EC-A2 015-023/16C4M50 1.50 4.00 2.30 16.0 50.00 1.41 2 30.0 3.0 C • 0.0050-0.0100
EC-A2 015-023/20C4M55 1.50 4.00 2.30 20.0 55.00 1.41 2 30.0 3.0 C • 0.0050-0.0100
EC-A2 016-024/06C4M45 1.60 4.00 2.40 6.0 45.00 1.57 2 30.0 3.0 C • 0.0050-0.0100
EC-A2 016-024/08C4M45 1.60 4.00 2.40 8.0 45.00 1.55 2 30.0 3.0 C • 0.0050-0.0100
EC-A2 016-024/10C4M45 1.60 4.00 2.40 10.0 45.00 1.55 2 30.0 3.0 C • 0.0050-0.0100
EC-A2 016-024/18C4M55 1.60 4.00 2.40 18.0 55.00 1.53 2 30.0 3.0 C • 0.0050-0.0100
EC-A2 016-024/26C4M60 1.60 4.00 2.40 26.0 60.00 1.53 2 30.0 3.0 C • 0.0050-0.0100
EC-A2 018-027/06C4M45 1.80 4.00 2.70 6.0 45.00 1.77 2 30.0 3.0 C • 0.0060-0.0100
EC-A2 018-027/08C4M45 1.80 4.00 2.70 8.0 45.00 1.75 2 30.0 3.0 C • 0.0060-0.0100
EC-A2 018-027/10C4M45 1.80 4.00 2.70 10.0 45.00 1.75 2 30.0 3.0 C • 0.0060-0.0100
EC-A2 018-027/12C4M45 1.80 4.00 2.70 12.0 45.00 1.73 2 30.0 3.0 C • 0.0060-0.0100
EC-A2 018-027/14C4M50 1.80 4.00 2.70 14.0 50.00 1.73 2 30.0 3.0 C • 0.0060-0.0100
• The DC tolerance is: 0 - -0.015 mm • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical

147
