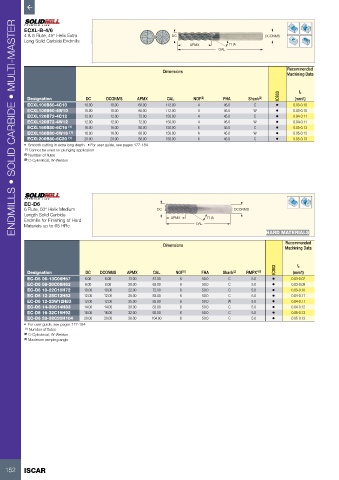

Page 154 - ISCAR(MILLINGCATALOG 38_2021)

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECXL-B-4/6
4 & 6 Flute, 45° Helix Extra DC DCONMS
Long Solid Carbide Endmills
APMX FHA
OAL

Dimensions Recommended
Machining Data

IC900 fz
Designation DC DCONMS APMX OAL NOF (2) FHA Shank (3) (mm/t)
ECXL100B60-4C10 10.00 10.00 60.00 112.00 4 45.0 C • 0.03-0.10
ECXL100B60-4W10 10.00 10.00 60.00 112.00 4 45.0 W • 0.03-0.10
ECXL120B72-4C12 12.00 12.00 72.00 150.00 4 45.0 C • 0.04-0.11
ECXL120B72-4W12 12.00 12.00 72.00 150.00 4 45.0 W • 0.04-0.11
ECXL160B80-6C16 (1) 16.00 16.00 80.00 150.00 6 45.0 C • 0.05-0.13
ECXL160B80-6W16 (1) 16.00 16.00 80.00 150.00 6 45.0 W • 0.05-0.13
ECXL200B80-6C20 (1) 20.00 20.00 80.00 150.00 6 45.0 C • 0.05-0.13
• Smooth cutting in extra long depth. • For user guide, see pages 177-184
(1) Cannot be used for plunging application
(2) Number of flutes
(3) C-Cylindrical, W-Weldon

EC-D6
6 Flute, 50° Helix Medium DC DCONMS
Length Solid Carbide
Endmills for Finishing of Hard APMX FHA
Materials up to 65 HRc OAL
HARD MATERIALS

Recommended
Dimensions
Machining Data

fz
Designation DC DCONMS APMX OAL NOF (1) FHA Shank (2) RMPX° (3) IC903 (mm/t)
EC-D6 06-13C06H57 6.00 6.00 13.00 57.00 6 50.0 C 5.0 • 0.03-0.07
EC-D6 08-20C08H63 8.00 8.00 20.00 63.00 6 50.0 C 5.0 • 0.03-0.09
EC-D6 10-22C10H72 10.00 10.00 22.00 72.00 6 50.0 C 5.0 • 0.03-0.10
EC-D6 12-25C12H83 12.00 12.00 25.00 83.00 6 50.0 C 5.0 • 0.04-0.11
EC-D6 12-25W12H83 12.00 12.00 25.00 83.00 6 50.0 W 5.0 • 0.04-0.11
EC-D6 14-30C14H83 14.00 14.00 30.00 83.00 6 50.0 C 5.0 • 0.04-0.12
EC-D6 16-32C16H92 16.00 16.00 32.00 92.00 6 50.0 C 5.0 • 0.05-0.13
EC-D6 20-38C20H104 20.00 20.00 38.00 104.00 6 50.0 C 5.0 • 0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical, W-Weldon
(3) Maximum ramping angle
