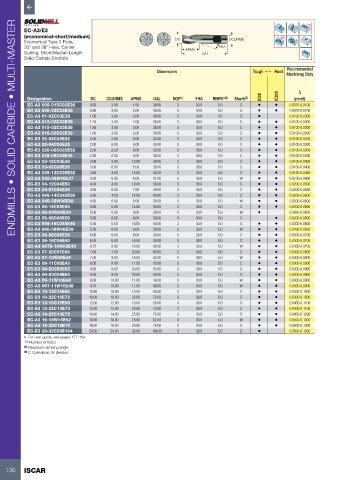

P. 138
Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EC-A3/E3
(economical-short/medium)
Economical Type 3 Flute, DC DCONMS
30° and 38° Helix, Center APMX FHA
Cutting, Short/Mediun Length OAL
Solid Carbide Endmills
Dimensions Tough 1 Hard Recommended
Machining Data
fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) IC08 IC900 (mm/t)
EC-A3 005-015C03E38 0.50 3.00 1.50 38.00 3 30.0 5.0 C • • 0.0070-0.0100
EC-A3 008-02C03E38 0.80 3.00 2.00 38.00 3 30.0 5.0 C • • 0.0070-0.0100
EC-A3 01-02C03E38 1.00 3.00 2.00 38.00 3 30.0 5.0 C • 0.0100-0.0300
EC-A3 012-02C03E38 1.20 3.00 2.00 38.00 3 30.0 5.0 C • • 0.0100-0.0300
EC-A3 015-02C03E38 1.50 3.00 2.00 38.00 3 30.0 5.0 C • • 0.0100-0.0300
EC-A3 018-02C03E38 1.80 3.00 2.00 38.00 3 30.0 5.0 C • • 0.0100-0.0300
EC-E3 02-08C02E32 2.00 2.00 8.00 32.00 3 38.0 5.0 C • • 0.0100-0.0300
EC-E3 02-04C06E35 2.00 6.00 4.00 35.00 3 38.0 5.0 C • • 0.0100-0.0300
EC-E3 025-08C025E32 2.50 2.50 8.00 32.00 3 38.0 5.0 C • • 0.0100-0.0300
EC-E3 025-05C06E36 2.50 6.00 5.00 36.00 3 38.0 5.0 C • • 0.0100-0.0300
EC-E3 03-12C03E38 3.00 3.00 12.00 38.00 3 38.0 5.0 C • • 0.0100-0.0400
EC-E3 03-05C06E36 3.00 6.00 5.00 36.00 3 38.0 5.0 C • • 0.0100-0.0400
EC-A3 035-12C035E32 3.50 3.50 12.00 32.00 3 30.0 5.0 C • • 0.0100-0.0400
EC-A3 035-06W06E37 3.50 6.00 6.00 37.00 3 30.0 5.0 W • • 0.0100-0.0400
EC-E3 04-12C04E50 4.00 4.00 12.00 50.00 3 38.0 5.0 C • • 0.0200-0.0500
EC-E3 04-07C06E39 4.00 6.00 7.00 39.00 3 38.0 5.0 C • • 0.0200-0.0500
EC-A3 045-14C045E50 4.50 4.50 14.00 50.00 3 30.0 5.0 C • • 0.0200-0.0500
EC-A3 045-08W06E38 4.50 6.00 8.00 38.00 3 30.0 5.0 W • • 0.0200-0.0500
EC-E3 05-14C05E50 5.00 5.00 14.00 50.00 3 38.0 5.0 C • • 0.0200-0.0600
EC-A3 05-08W06E39 5.00 6.00 8.00 39.00 3 30.0 5.0 W • 0.0200-0.0600
EC-E3 05-08C06E39 5.00 6.00 8.00 39.00 3 30.0 5.0 C • 0.0200-0.0600
EC-A3 055-16C055E50 5.50 5.50 16.00 50.00 3 30.0 5.0 C • • 0.0200-0.0600
EC-A3 055-08W06E39 5.50 6.00 8.00 39.00 3 30.0 5.0 W • • 0.0200-0.0600
EC-E3 06-08C06E39 6.00 6.00 8.00 39.00 3 38.0 5.0 C • • 0.0300-0.0700
EC-E3 06-16C06E50 6.00 6.00 16.00 50.00 3 38.0 5.0 C • • 0.0300-0.0700
EC-A3 0675-10W08E42 6.75 8.00 10.00 42.00 3 30.0 5.0 W • • 0.0300-0.0700
EC-E3 07-20C07E60 7.00 7.00 20.00 60.00 3 30.0 5.0 C • • 0.0300-0.0800
EC-A3 07-10W08E42 7.00 8.00 10.00 42.00 3 30.0 5.0 W • • 0.0300-0.0800
EC-E3 08-11C08E43 8.00 8.00 11.00 43.00 3 38.0 5.0 C • • 0.0300-0.0900
EC-E3 08-20C08E63 8.00 8.00 20.00 63.00 3 38.0 5.0 C • • 0.0300-0.0900
EC-A3 09-20C09E60 9.00 9.00 20.00 60.00 3 30.0 5.0 C • • 0.0300-0.0900
EC-A3 09-11W10E48 9.00 10.00 11.00 48.00 3 30.0 5.0 W • • 0.0300-0.0900
EC-A3 097-11W10E48 9.70 10.00 11.00 48.00 3 30.0 5.0 W • • 0.0300-0.0900
EC-E3 10-13C10E50 10.00 10.00 13.00 50.00 3 38.0 5.0 C • • 0.0300-0.1000
EC-E3 10-22C10E72 10.00 10.00 22.00 72.00 3 38.0 5.0 C • • 0.0300-0.1000
EC-E3 12-15C12E55 12.00 12.00 15.00 55.00 3 30.0 5.0 C • • 0.0400-0.1100
EC-E3 12-22C12E73 12.00 12.00 22.00 73.00 3 38.0 5.0 C • • 0.0400-0.1100
EC-A3 14-25C14E75 14.00 14.00 25.00 75.00 3 30.0 5.0 C • • 0.0400-0.1200
EC-A3 16-18W16E62 16.00 16.00 18.00 62.00 3 30.0 5.0 W • • 0.0500-0.1300
EC-A3 16-25C16E75 16.00 16.00 25.00 75.00 3 30.0 5.0 C • • 0.0500-0.1300
EC-E3 20-32C20E104 20.00 20.00 32.00 104.00 3 38.0 5.0 C • 0.0500-0.1300
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
