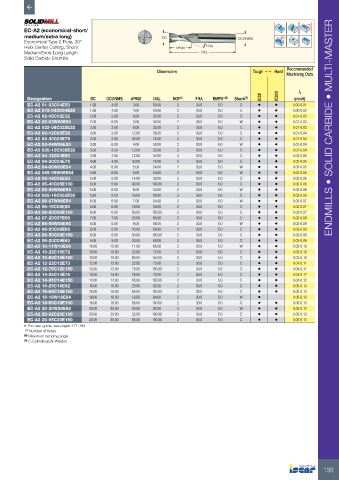

Page 137 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
EC-A2 (economical-short/

medium/extra long) DC DCONMS
Economical Type 2 Flute, 30°
Helix Center Cutting, Short/ APMX FHA
Medium/Extra Long Length OAL
Solid Carbide Endmills

Dimensions Tough 1 Hard Recommended
Machining Data

fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) IC08 IC900 (mm/t)
EC-A2 01-03C04E50 1.00 4.00 3.00 50.00 2 30.0 5.0 C • • 0.00-0.01
EC-A2 015-045C04E50 1.50 4.00 4.50 50.00 2 30.0 5.0 C • • 0.00-0.02
EC-A2 02-08C02E32 2.00 2.00 8.00 32.00 2 30.0 5.0 C • • 0.01-0.03
EC-A2 02-03W06E50 2.00 6.00 3.00 50.00 2 30.0 5.0 W • • 0.01-0.03
EC-A2 025-08C025E32 2.50 2.50 8.00 32.00 2 30.0 5.0 C • • 0.01-0.03 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EC-A2 03-12C03E38 3.00 3.00 12.00 38.00 2 30.0 5.0 C • • 0.01-0.04
EC-A2 03-30C03E75 3.00 3.00 30.00 75.00 2 30.0 5.0 C • • 0.01-0.04
EC-A2 03-04W06E50 3.00 6.00 4.00 50.00 2 30.0 5.0 W • • 0.01-0.04
EC-A2 035-12C035E32 3.50 3.50 12.00 32.00 2 30.0 5.0 C • • 0.01-0.04
EC-A2 04-12C04E50 4.00 4.00 12.00 50.00 2 30.0 5.0 C • • 0.02-0.05
EC-A2 04-30C04E75 4.00 4.00 30.00 75.00 2 30.0 5.0 C • • 0.02-0.05
EC-A2 04-05W06E54 4.00 6.00 5.00 54.00 2 30.0 5.0 W • • 0.02-0.05
EC-A2 045-05W06E54 4.50 6.00 5.00 54.00 2 30.0 5.0 W • • 0.02-0.05
EC-A2 05-14C05E50 5.00 5.00 14.00 50.00 2 30.0 5.0 C • • 0.02-0.06
EC-A2 05-40C05E100 5.00 5.00 40.00 100.00 2 30.0 5.0 C • • 0.02-0.06
EC-A2 05-06W06E54 5.00 6.00 6.00 54.00 2 30.0 5.0 W • • 0.02-0.06
EC-A2 055-16C055E50 5.50 5.50 16.00 50.00 2 30.0 5.0 C • • 0.02-0.06
EC-A2 06-07W06E54 6.00 6.00 7.00 54.00 2 30.0 5.0 W • • 0.03-0.07
EC-A2 06-16C06E50 6.00 6.00 16.00 50.00 2 30.0 5.0 C • • 0.03-0.07
EC-A2 06-50C06E150 6.00 6.00 50.00 150.00 2 30.0 5.0 C • • 0.03-0.07
EC-A2 07-20C07E60 7.00 7.00 20.00 60.00 2 30.0 5.0 C • • 0.03-0.08
EC-A2 08-09W08E58 8.00 8.00 9.00 58.00 2 30.0 5.0 W • • 0.03-0.09
EC-A2 08-20C08E63 8.00 8.00 20.00 60.00 2 30.0 5.0 C • • 0.03-0.09
EC-A2 08-50C08E150 8.00 8.00 50.00 150.00 2 30.0 5.0 C • • 0.03-0.09
EC-A2 09-20C09E60 9.00 9.00 20.00 60.00 2 30.0 5.0 C • • 0.03-0.09
EC-A2 10-11W10E66 10.00 10.00 11.00 66.00 2 30.0 5.0 W • • 0.03-0.10
EC-A2 10-22C10E72 10.00 10.00 22.00 72.00 2 30.0 5.0 C • • 0.03-0.10
EC-A2 10-60C10E150 10.00 10.00 60.00 150.00 2 30.0 5.0 C • • 0.03-0.10
EC-A2 12-22C12E73 12.00 12.00 22.00 73.00 2 30.0 5.0 C • • 0.04-0.11
EC-A2 12-75C12E150 12.00 12.00 75.00 150.00 2 30.0 5.0 C • • 0.04-0.11
EC-A2 14-25C14E75 14.00 14.00 25.00 75.00 2 30.0 5.0 C • • 0.04-0.12
EC-A2 14-65C14E150 14.00 14.00 65.00 150.00 2 30.0 5.0 C • • 0.04-0.12
EC-A2 16-25C16E92 16.00 16.00 25.00 92.00 2 30.0 5.0 C • • 0.05-0.13
EC-A2 16-65C16E150 16.00 16.00 65.00 150.00 2 30.0 5.0 C • • 0.05-0.13
EC-A2 18-18W18E84 18.00 18.00 18.00 84.00 2 30.0 5.0 W • 0.05-0.13
EC-A2 18-65C18E150 18.00 18.00 65.00 150.00 2 30.0 5.0 C • • 0.05-0.13
EC-A2 20-20W20E92 20.00 20.00 20.00 92.00 2 30.0 5.0 W • • 0.05-0.13
EC-A2 20-32C20E100 20.00 20.00 32.00 100.00 2 30.0 5.0 C • • 0.05-0.13
EC-A2 20-65C20E150 20.00 20.00 65.00 150.00 2 30.0 5.0 C • • 0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical,W-Weldon
