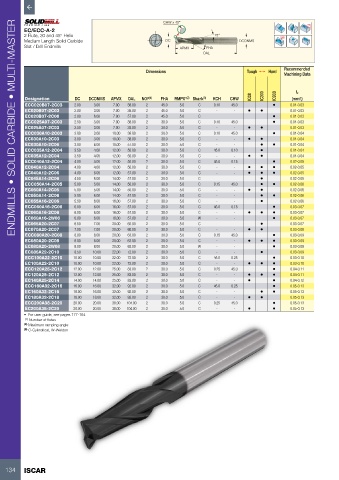

Page 136 - ISCAR(MILLINGCATALOG 38_2021)

CHW x 45° Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EC/ECC-A-2
2 Flute, 30 and 45° Helix 15°
Medium Length Solid Carbide DC DCONMS
Slot / Drill Endmills APMX FHA
OAL

Dimensions Tough 1 Hard Recommended
Machining Data

fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) KCH CHW IC08 IC300 IC900 (mm/t)
ECC020B07-2C03 2.00 3.00 7.00 38.00 2 45.0 5.0 C 0.10 45.0 • 0.01-0.03
EC020B07-2C03 2.00 3.00 7.00 38.00 2 45.0 5.0 C - - • • 0.01-0.03
EC020B07-2C06 2.00 6.00 7.00 57.00 2 45.0 5.0 C - - • 0.01-0.03
ECC025A07-2C03 2.50 3.00 7.00 38.00 2 30.0 5.0 C 0.10 45.0 • 0.01-0.03
EC025A07-2C03 2.50 3.00 7.00 38.00 2 30.0 5.0 C - - • • 0.01-0.03
ECC030A10-2C03 3.00 3.00 10.00 38.00 2 30.0 5.0 C 0.10 45.0 • 0.01-0.04
EC030A10-2C03 3.00 3.00 10.00 38.00 2 30.0 5.0 C - - • • 0.01-0.04
EC030A10-2C06 3.00 6.00 10.00 57.00 2 30.0 5.0 C - - • • 0.01-0.04
ECC035A12-2C04 3.50 4.00 12.00 50.00 2 30.0 5.0 C 45.0 0.10 • 0.01-0.04
EC035A12-2C04 3.50 4.00 12.00 50.00 2 30.0 5.0 C - - • • 0.01-0.04
ECC040A12-2C04 4.00 4.00 12.00 50.00 2 30.0 5.0 C 45.0 0.15 • 0.02-0.05
EC040A12-2C04 4.00 4.00 12.00 50.00 2 30.0 5.0 C - - • • • 0.02-0.05
EC040A12-2C06 4.00 6.00 12.00 57.00 2 30.0 5.0 C - - • • • 0.02-0.05
EC045A14-2C06 4.50 6.00 14.00 57.00 2 30.0 5.0 C - - • 0.02-0.05
ECC050A14-2C05 5.00 5.00 14.00 50.00 2 30.0 5.0 C 0.15 45.0 • • 0.02-0.06
EC050A14-2C05 5.00 5.00 14.00 50.00 2 30.0 5.0 C - - • • 0.02-0.06
EC050A14-2C06 5.00 6.00 14.00 57.00 2 30.0 5.0 C - - • • 0.02-0.06
EC055A16-2C06 5.50 6.00 16.00 57.00 2 30.0 5.0 C - - • 0.02-0.06
ECC060A16-2C06 6.00 6.00 16.00 57.00 2 30.0 5.0 C 45.0 0.15 • 0.03-0.07
EC060A16-2C06 6.00 6.00 16.00 57.00 2 30.0 5.0 C - - • • • 0.03-0.07
EC060A16-2W06 6.00 6.00 16.00 57.00 2 30.0 5.0 W - - • 0.03-0.07
EC065A20-2C07 6.50 7.00 20.00 60.00 2 30.0 5.0 C - - • 0.03-0.07
EC070A20-2C07 7.00 7.00 20.00 60.00 2 30.0 5.0 C - - • • 0.03-0.08
ECC080A20-2C08 8.00 8.00 20.00 63.00 2 30.0 5.0 C 0.15 45.0 • 0.03-0.09
EC080A20-2C08 8.00 8.00 20.00 63.00 2 30.0 5.0 C - - • • • 0.03-0.09
EC080A20-2W08 8.00 8.00 20.00 63.00 2 30.0 5.0 W - - • 0.03-0.09
EC085A22-2C10 8.50 10.00 22.00 72.00 2 30.0 5.0 C - - • 0.03-0.09
ECC100A22-2C10 10.00 10.00 22.00 72.00 2 30.0 5.0 C 45.0 0.25 • 0.03-0.10
EC100A22-2C10 10.00 10.00 22.00 72.00 2 30.0 5.0 C - - • • • 0.03-0.10
ECC120A25-2C12 12.00 12.00 25.00 83.00 2 30.0 5.0 C 0.25 45.0 • 0.04-0.11
EC120A25-2C12 12.00 12.00 25.00 83.00 2 30.0 5.0 C - - • • • 0.04-0.11
EC140A25-2C14 14.00 14.00 25.00 83.00 2 30.0 5.0 C - - • • 0.04-0.12
ECC160A32-2C16 16.00 16.00 32.00 92.00 2 30.0 5.0 C 45.0 0.25 • 0.05-0.13
EC160A32-2C16 16.00 16.00 32.00 92.00 2 30.0 5.0 C - - • • 0.05-0.13
EC180A32-2C18 18.00 18.00 32.00 92.00 2 30.0 5.0 C - - • • 0.05-0.13
ECC200A38-2C20 20.00 20.00 38.00 104.00 2 30.0 5.0 C 0.25 45.0 • 0.05-0.13
EC200A38-2C20 20.00 20.00 38.00 104.00 2 30.0 5.0 C - - • • 0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
