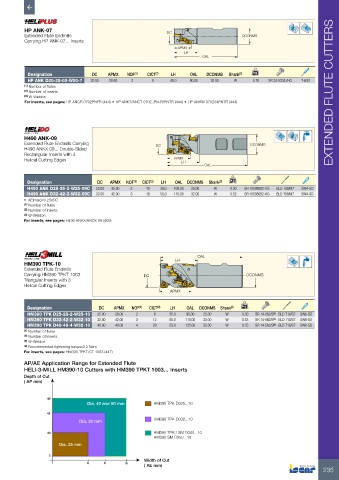

P. 237

HP ANK-07                                         DC
          Extended Flute Endmills                                                     DCONMS
          Carrying HP ANK-07... Inserts
                                                               APMX
                                                                  LH
                                                                        OAL


           Designation           DC    APMX   NOF (1)  CICT (2)  LH  OAL  DCONMS  Shank (3)  kg
           HP ANK D20-28-02-W20-7  20.00  28.60  2    8      40.0   90.00  20.00   W      0.18  SR 34-533/L/HG  T-6/51
          (1)  Number of flutes
          (2)  Number of inserts                                                                                      EXTENDED FLUTE CUTTERS
          (3)  W-Weldon
          For inserts, see pages: HP ANCR 0702PNFR (444) • HP ANKT/ANCT 0702..PN-R/PNTR (444) • HP ANKW 070204PNTR (444)






          H490 ANK-09
          Extended Flute Endmills Carrying              DC                               DCONMS
          H490 ANKX 09... Double-Sided
          Rectangular Inserts with 4
          Helical Cutting Edges                               APMX LH
                                                                         OAL

           Designation             DC   APMX  NOF (1)  CICT (2)  LH  OAL  DCONMS  Shank (3)  kg
           H490 ANK D25-35-2-W25-09C  25.00  35.00  2  10  38.0  100.00  25.00  W  0.30  SR 10508082-HG  BLD T08/M7  SW4-SD
           H490 ANK D32-42-3-W32-09C  32.00  42.00  3  18  50.0  115.00  32.00  W  0.52  SR 10508082-HG  BLD T08/M7  SW4-SD
          •  AE(max)=0.25xDC
          (1)  Number of flutes
          (2)  Number of inserts
          (3)  W-Weldon
          For inserts, see pages: H490 ANKX/ANCX-09 (469)






                                                                      OAL
                                                              LH

         HM390 TPK-10
         Extended Flute Endmills
         Carrying HM390 TPKT 1003                   DC                                  DCONMS
         Triangular Inserts with 3
         Helical Cutting Edges
                                                             APMX

           Designation              DC   APMX  NOF (1)  CICT (2)  LH  OAL  DCONMS  Shank (3)  kg
           HM390 TPK D25-28-2-W25-10  25.00  28.00  2  8     35.0  95.00  25.00  W    0.30  SR 14-562/S (a)  BLD T10/S7  SW6-SD
           HM390 TPK D32-42-2-W32-10  32.00  42.00  2  12    50.0  110.00  32.00  W   0.53  SR 14-562/S (a)  BLD T10/S7  SW6-SD
           HM390 TPK D40-49-4-W32-10  40.00  49.00  4  28    59.0  125.00  32.00  W   0.75  SR 14-562/S (a)  BLD T10/S7  SW6-SD
         (1)  Number of flutes
         (2)  Number of inserts
         (3)  W-Weldon
         (a)  Recommended tightening torque:3.2 Nxm
         For inserts, see pages: HM390 TPKT/CT 1003 (447)
         AP/AE Application Range for Extended Flute
         HELI-3-MILL HM390-10 Cutters with HM390 TPKT 1003… Inserts
         Depth of Cut
         ( AP mm)
                                           50
                  49
                                Dia. 40 and 50 mm      HM390 TPK D025...10
                  42
                             Dia. 32 mm                HM390 TPK D032...10
                  28                                   HM390 TPK / SM D040...10
                                                       HM390 SM D050...10
                      Dia. 25 mm
                  5
                                                    Width of Cut
                                6     8      10
                                                    ( AE mm)
