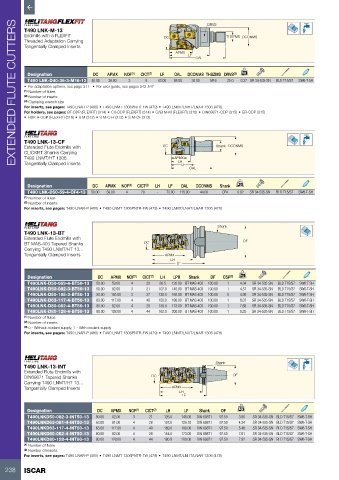

Page 240 - ISCAR(MILLINGCATALOG 38_2021)

EXTENDED FLUTE CUTTERS
DRVS

T490 LNK-M-13
Endmills with a FLEXFIT DC THSZMS DCONMS
Threaded Adaptation Carrying
Tangentially Clamped Inserts
APMX
LF
OAL

Designation DC APMX NOF (1) CICT (2) LF OAL DCONMS THSZMS DRVS (3) kg
T490 LNK-D40-36-3-M16-13 40.00 36.00 3 9 63.00 88.00 30.00 M16 25.0 0.37 SR 34-535-SN BLD T15/S7 SW6-T-SH
• For adaptation options, see page 311 • For user guide, see pages 542-547
(1) Number of flutes
(2) Number of inserts
(3) Clamping wrench size
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)

T490 LNK-13-CF
Extended Flute Endmills with DC Shank DCONMS
CLICKFIT Shanks Carrying
T490 LNMT/HT 1306... APMX
Tangentially Clamped Inserts LH LF
OAL

Designation DC APMX NOF (1) CICT (2) LH LF OAL DCONMS Shank kg
T490 LNK-D50-59-4-CF4-13 50.00 59.00 4 20 - 73.00 115.00 44.00 CF4 0.82 SR 34-535-SN BLD T15/S7 SW6-T-SH
(1) Number of flutes
(2) Number of inserts
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478)

Shank

T490 LNK-13-BT
Extended Flute Endmills with
BT MAS-403 Tapered Shanks DC DF
Carrying T490 LNMT/HT 13...
Tangentially Clamped Inserts APMX
LH
LF

Designation DC APMX NOF (1) CICT (2) LH LPR Shank DF CSP (3) kg
T490LNK-D50-059-4-BT50-13 50.00 59.00 4 20 80.5 120.00 BT MAS-403 100.00 1 4.34 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490LNK-D50-082-3-BT50-13 50.00 82.00 3 21 107.0 145.00 BT MAS-403 100.00 1 4.57 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490LNK-D50-105-3-BT50-13 50.00 105.00 3 27 130.0 168.00 BT MAS-403 100.00 0 4.99 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490LNK-D63-117-4-BT50-13 63.00 117.00 4 40 150.0 188.00 BT MAS-403 100.00 1 6.07 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490LNK-D80-082-4-BT50-13 80.00 82.00 4 28 135.0 173.00 BT MAS-403 100.00 1 7.65 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490LNK-D80-128-4-BT50-13 80.00 128.00 4 44 162.0 200.00 BT MAS-403 100.00 1 8.25 SR 34-535-SN BLD T15/S7 SW6-T-SH
(1) Number of flutes
(2) Number of inserts
(3) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478)

Shank
T490 LNK-13-INT
Extended Flute Endmills with
DIN69871 Tapered Shanks DC DF
Carrying T490 LNMT/HT 13...
Tangentially Clamped Inserts APMX
LH
LF

Designation DC APMX NOF (1) CICT (2) LH LF Shank DF kg
T490LNKD50-082-3-INT50-13 50.00 82.00 3 21 126.0 145.00 DIN 69871 97.50 3.85 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490LNKD63-081-4-INT50-13 63.00 81.00 4 28 107.0 126.10 DIN 69871 97.50 4.34 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490LNKD63-117-4-INT50-13 63.00 117.00 4 40 169.0 188.00 DIN 69871 97.50 5.46 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490LNKD80-082-4-INT50-13 80.00 82.00 4 28 154.0 173.00 DIN 69871 97.50 7.61 SR 34-535-SN BLD T15/S7 SW6-T-SH
T490LNKD80-128-4-INT50-13 80.00 128.00 4 44 180.9 200.00 DIN 69871 97.50 7.92 SR 34-535-SN BLD T15/S7 SW6-T-SH
(1) Number of flutes
(2) Number of inserts
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478)
