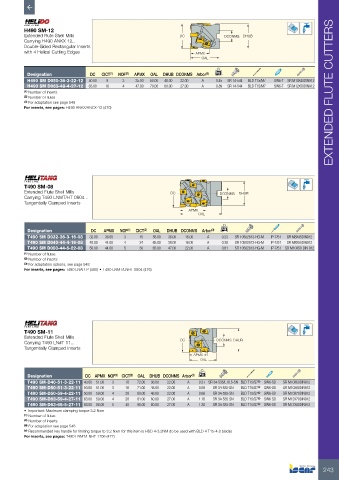

Page 245 - ISCAR(MILLINGCATALOG 38_2021)

H490 SM-12
Extended Flute Shell Mills DC DCONMS DHUB
Carrying H490 ANKX 12..
Double-Sided Rectangular Inserts
with 4 Helical Cutting Edges APMX
OAL

Designation DC CICT (1) NOF (2) APMX OAL DHUB DCONMS Arbor (3) kg
H490 SM D050-36-3-22-12 50.00 9 3 35.00 60.00 48.00 22.00 A 0.45 SR 14-544 BLD T15/M7 SW6-T SR M10X40DIN912
H490 SM D063-48-4-27-12 63.00 16 4 47.00 70.00 60.00 27.00 A 0.89 SR 14-544 BLD T15/M7 SW6-T SR M12X50DIN912
(1) Number of inserts EXTENDED FLUTE CUTTERS
(2) Number of flutes
(3) For adaptation see page 548
For inserts, see pages: H490 ANKX/ANCX-12 (470)

T490 SM-08
Extended Flute Shell Mills DC DCONMS DHUB
Carrying T490 LNMT/HT 0804...
Tangentially Clamped Inserts
APMX
OAL

Designation DC APMX NOF (1) CICT (2) OAL DHUB DCONMS Arbor (3) kg
T490 SM D032-36-3-16-08 32.00 36.00 3 15 58.00 38.00 16.00 A 0.23 SR 10502813-HG-M IP-7/51 SR M8X45DIN912
T490 SM D040-44-4-16-08 40.00 44.00 4 24 65.00 38.00 16.00 A 0.38 SR 10502813-HG-M IP-7/51 SR M8X55DIN912
T490 SM D050-44-5-22-08 50.00 44.00 5 30 65.00 47.00 22.00 A 0.61 SR 10502813-HG-M IP-7/51 SR M10X50 DIN 912
(1) Number of flutes
(2) Number of inserts
(3) For adaptation options, see page 548
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT/LNHT 0804 (476)

T490 SM-11
Extended Flute Shell Mills DC
Carrying T490 LN#T 11... DCONMS DHUB
Tangentially Clamped Inserts
APMX
OAL

Designation DC APMX NOF (1) CICT (2) OAL DHUB DCONMS Arbor (3) kg
T490 SM-D40-51-3-22-11 40.00 51.00 3 18 72.00 38.00 22.00 A 0.31 SR 34-535/L10.5-SN BLD T15/S7 (a) SW6-SD SR M10X60DIN912
T490 SM-D50-51-3-22-11 50.00 51.00 3 18 71.00 48.00 22.00 A 0.59 SR 34-535-SN BLD T15/S7 (a) SW6-SD SR M10X60DIN912
T490 SM-D50-59-4-22-11 50.00 59.00 4 28 80.00 48.00 22.00 A 0.66 SR 34-535-SN BLD T15/S7 (a) SW6-SD SR M10X70DIN912
T490 SM-D63-59-4-27-11 63.00 59.00 4 28 81.00 60.00 27.00 A 1.16 SR 34-535-SN BLD T15/S7 (a) SW6-SD SR M12X70DIN912
T490 SM-D63-68-5-27-11 63.00 68.00 5 40 90.00 60.00 27.00 A 1.30 SR 34-535-SN BLD T15/S7 (a) SW6-SD SR M12X80DIN912
• Important: Maximum clamping torque 3.2 Nxm
(1) Number of flutes
(2) Number of inserts
(3) For adaptation see page 548
(a) Recommended key handle for limiting torque to 3.2 Nxm for this item is HSD 4-3.2NM (to be used with BLD 4 T15-4.8 blade)
For inserts, see pages: T490 LNMT/LNHT 1106 (477)

243
