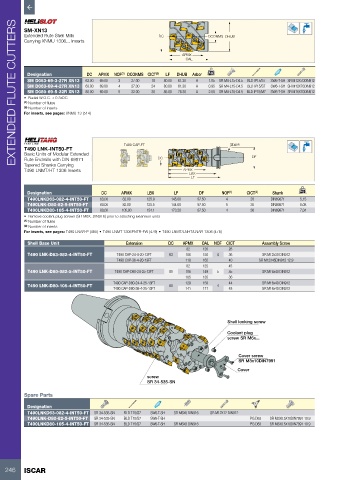

EXTENDED FLUTE CUTTERS

SM-XN13
Extended Flute Shell Mills DC DCONMS DHUB
Carrying XNMU 1306... Inserts

APMX
OAL

Designation DC APMX NOF (1) DCONMS CICT (2) LF DHUB Arbor kg
SM D063-69-3-27R XN13 63.00 69.00 3 27.00 18 80.00 61.30 A 1.05 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH SR M12X70DIN912
SM D063-69-4-27R XN13 63.00 69.00 4 27.00 24 80.00 61.30 A 0.95 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH SR M12X70DIN912
SM D080-69-5-32R XN13 80.00 69.00 5 32.00 30 85.00 78.30 A 2.50 SR M4-L15-D4.5 BLD IP15/M7 SW6-T-SH SR M16X70DIN912
• Radial W.O.C. < 0.3xDC
(1) Number of flutes
(2) Number of inserts
For inserts, see pages: XNMU 13 (514)

T490 CAP-FT Shank
T490 LNK-INT50-FT
Basic Units of Modular Extended DF
Flute Endmills with DIN 69871 DC
Tapered Shanks Carrying
T490 LNMT/HT 1306 Inserts APMX
LBX
LF

Designation DC APMX LBX LF DF NOF (1) CICT (2) Shank kg
T490LNKD63-082-4-INT50-FT 63.00 82.00 125.9 145.00 97.50 4 28 DIN69871 5.15
T490LNK-D80-82-5-INT50-FT 80.00 82.00 125.5 144.60 97.50 5 35 DIN69871 6.08
T490LNKD80-105-4-INT50-FT 80.00 105.00 154.1 173.20 97.50 4 36 DIN69871 7.04
• Remove coolant plug screws (SR M6X..DIN916) prior to attaching extension units
(1) Number of flutes
(2) Number of inserts
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478)

Shell Base Unit Extension DC APMX OAL NOF CICT Assembly Screw
82 126 28
T490 LNK-D63-082-4-INT50-FT T490 CAP-24-4-20-13FT 63 106 150 4 36 SR M12x30 DIN912
T490 CAP-36-4-20-13FT 118 162 40 SR M12X45DIN912 12.9
82 125 45
T490 LNK-D80-082-5-INT50-FT T490 CAP-D80-24-25-13FT 80 106 149 5 55 SR M16x40 DIN912
105 135 36
T490 CAP-D80-24-4-25-13FT 129 159 44 SR M16x40 DIN912
T490 LNK-D80-105-4-INT50-FT 80 4
T490 CAP-D80-36-4-25-13FT 141 171 48 SR M16x40 DIN912

Shell locking screw
Coolant plug
screw SR M6x...

Cover screw
SR M3x10DIN7991
Cover
screw
SR 34-535-SN

Spare Parts
Designation
T490LNKD63-082-4-INT50-FT SR 34-535-SN BLD T15/S7 SW6-T-SH SR M6X6 DIN916 SR M12X12 DIN912
T490LNK-D80-82-5-INT50-FT SR 34-535-SN BLD T15/S7 SW6-T-SH PG D63 SR M3X0.5X10DIN7991 10.9
T490LNKD80-105-4-INT50-FT SR 34-535-SN BLD T15/S7 SW6-T-SH SR M6X8 DIN916 PG D63 SR M3X0.5X10DIN7991 10.9

246 ISCAR
