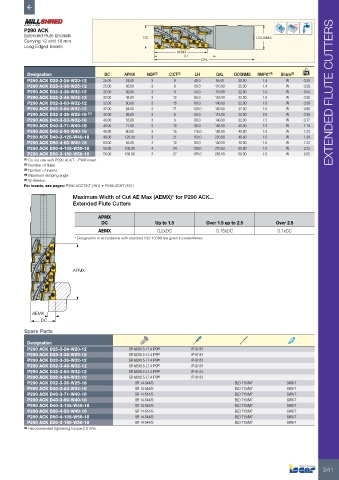

Page 243 - ISCAR(MILLINGCATALOG 38_2021)

Rd°

P290 ACK
Extended Flute Endmills DC DCONMS
Carrying 12 and 18 mm
Long Edged Inserts
APMX
LH
OAL

Designation DC APMX NOF (2) CICT (3) LH OAL DCONMS RMPX° (4) Shank (5) kg
P290 ACK D25-3-24-W20-12 25.00 24.00 3 6 40.0 95.00 20.00 1.4 W 0.20
P290 ACK D25-3-36-W25-12 25.00 36.00 3 9 50.0 110.00 25.00 1.4 W 0.29
P290 ACK D32-3-36-W32-12 32.00 36.00 3 9 50.0 110.00 32.00 1.0 W 0.50 EXTENDED FLUTE CUTTERS
P290 ACK D32-3-48-W32-12 32.00 48.00 3 12 65.0 125.00 32.00 1.0 W 0.55
P290 ACK D32-3-60-W32-12 32.00 60.00 3 15 80.0 140.00 32.00 1.0 W 0.59
P290 ACK D32-3-84-W32-12 32.00 84.00 3 21 100.0 160.00 32.00 1.0 W 0.66
P290 ACK D32-3-36-W25-18 (1) 32.00 36.00 3 6 55.0 115.00 25.00 2.0 W 0.36
P290 ACK D40-3-53-W32-18 40.00 53.00 3 9 80.0 140.00 32.00 1.5 W 0.77
P290 ACK D40-3-71-W40-18 40.00 71.00 3 12 95.0 165.00 40.00 1.5 W 1.14
P290 ACK D40-3-90-W40-18 40.00 90.00 3 15 115.0 185.00 40.00 1.5 W 1.23
P290 ACK D40-3-125-W40-18 40.00 125.00 3 21 150.0 220.00 40.00 1.5 W 1.39
P290 ACK D50-4-53-W40-18 50.00 53.00 4 12 80.0 150.00 40.00 1.0 W 1.33
P290 ACK D50-4-105-W50-18 50.00 105.00 4 24 130.0 210.00 50.00 1.0 W 2.23
P290 ACK D50-3-160-W50-18 50.00 160.00 3 27 185.0 265.00 50.00 1.0 W 2.82
(1) Do not use with P290 ACKT...-FWR insert
(2) Number of flutes
(3) Number of inserts
(4) Maximum ramping angle
(5) W-Weldon
For inserts, see pages: P290 ACCT/KT (461) • P290 ACKT (461)
Maximum Width of Cut AE Max (AEMX)* for P290 ACK...
Extended Flute Cutters

APMX
DC Up to 1.5 Over 1.5 up to 2.5 Over 2.5
AEMX 0.2xDC 0.15xDC 0.1xDC
* Designation in accordance with standard ISO 13399 are given in parentheses

APMX

AEMX
DC
Spare Parts
Designation
P290 ACK D25-3-24-W20-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151
P290 ACK D25-3-36-W25-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151
P290 ACK D32-3-36-W32-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151
P290 ACK D32-3-48-W32-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151
P290 ACK D32-3-60-W32-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151
P290 ACK D32-3-84-W32-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151
P290 ACK D32-3-36-W25-18 SR 14-544/S BLD T15/M7 SW6-T
P290 ACK D40-3-53-W32-18 SR 14-544/S BLD T15/M7 SW6-T
P290 ACK D40-3-71-W40-18 SR 14-544/S BLD T15/M7 SW6-T
P290 ACK D40-3-90-W40-18 SR 14-544/S BLD T15/M7 SW6-T
P290 ACK D40-3-125-W40-18 SR 14-544/S BLD T15/M7 SW6-T
P290 ACK D50-4-53-W40-18 SR 14-544/S BLD T15/M7 SW6-T
P290 ACK D50-4-105-W50-18 SR 14-544/S BLD T15/M7 SW6-T
P290 ACK D50-3-160-W50-18 SR 14-544/S BLD T15/M7 SW6-T
(a) Recommended tightening torque:2.0 N*m

241
