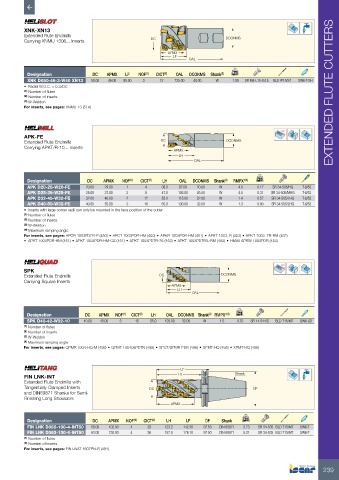

Page 241 - ISCAR(MILLINGCATALOG 38_2021)

XNK-XN13
Extended Flute Endmills DCONMS
Carrying XNMU 1306... Inserts DC
APMX
LF
OAL

Designation DC APMX LF NOF (1) CICT (2) OAL DCONMS Shank (3) kg
XNK D050-46-3-W40 XN13 50.00 46.00 85.00 3 12 125.00 40.00 W 1.09 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH
• Radial W.O.C. < 0.3xDC
(1) Number of flutes EXTENDED FLUTE CUTTERS
(2) Number of inserts
(3) W-Weldon
For inserts, see pages: XNMU 13 (514)

Rd°

APK-FE
Extended Flute Endmills DC DCONMS
Carrying APKT/R-10... Inserts
APMX
LH
OAL

Designation DC APMX NOF (1) CICT (2) LH OAL DCONMS Shank (3) RMPX° (4) kg
APK D20-28-W20-FE 20.00 29.00 1 4 36.0 87.00 20.00 W 4.0 0.17 SR 34-505/HG T-8/53
APK D25-36-W25-FE 25.00 37.00 2 8 47.0 105.00 25.00 W 4.0 0.31 SR 34-505/MHG T-8/53
APK D32-45-W32-FE 32.00 46.00 2 12 55.0 115.00 32.00 W 1.4 0.57 SR 34-505/LHG T-8/53
APK D40-50-W32-FE 40.00 55.00 3 18 65.0 130.00 32.00 W 1.3 0.80 SR 34-505/LHG T-8/53
• Inserts with large corner radii can only be mounted in the face position of the cutter
(1) Number of flutes
(2) Number of inserts
(3) W-Weldon
(4) Maximum ramping angle
For inserts, see pages: APCR 1003PDFR-P (450) • APCT 1003PDR-HM (450) • APKR 1003PDR-HM (451) • APKT 1003..R (453) • APKT 1003..TR-RM (452)
• APKT 1003PDR-HM (451) • APKT 1003PDR-HM-CS (451) • APKT 1003PDTR-76 (452) • APKT 1003PDTR/L-RM (452) • HM90 APKW 1003PDR (453)

Rd°

SPK
Extended Flute Endmills DC DCONMS
Carrying Square Inserts
APMX
LH
OAL

Designation DC APMX NOF (1) CICT (2) LH OAL DCONMS Shank (3) RMPX° (4) kg
SPK D40-42-W32-10 40.00 43.00 3 15 55.0 125.00 32.00 W 1.5 0.70 SR 14-544/S BLD T15/M7 SW6-SD
(1) Number of flutes
(2) Number of inserts
(3) W-Weldon
(4) Maximum ramping angle
For inserts, see pages: QPMR 1004-HQ-M (495) • QPMT 100408PDTN (495) • SPCT/SPMR PDR (496) • SPMT-HQ (495) • XPMT-HQ (496)

LF
Shank
FIN LNK-INT LH
Extended Flute Endmills with
Tangentially Clamped Inserts DC DF
and DIN69871 Shanks for Semi-
Finishing Long Shoulders
APMX

Designation DC APMX NOF (1) CICT (2) LH LF DF Shank kg
FIN LNK D050-100-4-INT50 50.00 102.00 4 28 123.2 142.30 97.50 DIN 69871 3.73 SR 34-535 BLD T15/M7 SW6-T
FIN LNK D063-130-4-INT50 63.00 130.00 4 36 157.0 176.10 97.50 DIN 69871 5.21 SR 34-535 BLD T15/M7 SW6-T
(1) Number of flutes
(2) Number of inserts
For inserts, see pages: FIN LNAT 1607PN-R (491)
